Запчасти Case 580M (09-64) - CAB HEADLINER - FILTER, LOUVERS, DOME LAMP (09) - CHASSIS/ATTACHMENTS

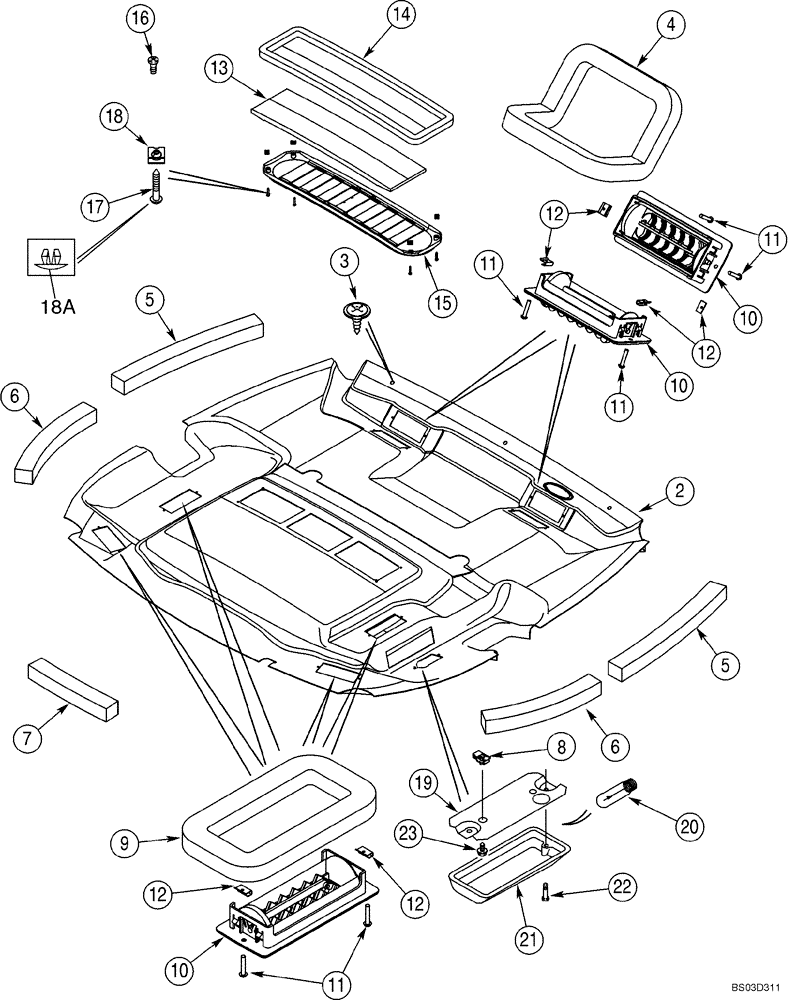

Схема запчастей Case 580M - (09-64) - CAB HEADLINER - FILTER, LOUVERS, DOME LAMP (09) - CHASSIS/ATTACHMENTS
16
14
8
23
11
11
9
6
6
12
10
4
7
17
19
3
10
13
18a
11
5
22
11
20
12
18
12
12
10
21
2
5
15

Артикул

Название

Примечание

Количество

1

367704A4

ROOF LINING

Shell, Standard Interior; Not Illustrated

1шт.

2

381696A5

ROOF LINING

With Foam and Fabric Covering; Deluxe Interior; Replaces 381696A3, 381696A4

1шт.

3

396516A1

SCREW,POINTED

3шт.

4

368813A2

SEAL,168mm L

Defrost

2шт.

5

379160A1

FOAM INSULATION,50mm W x 494mm L x 45mm Thk

494 mm, Foam; Adhesive Back, Front

2шт.

6

379161A1

SEAL,379mm L

379 mm, Foam; Adhesive Back, Rear

2шт.

7

379209A1

SEAL,303mm L

303 mm, Foam; Adhesive Back, Center, Rear

1шт.

8

131-861

SPRING NUT,Tinn, U, #10-24

Dome Lamp

2шт.

9

377194A1

SEAL

Heat and Air

4шт.

10

363883A1

LOUVER

8шт.

11

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

16шт.

12

125749A1

SPRING NUT

16шт.

13

377594A5

FILTER

Air Recirculation; Replaces 377594A4

1шт.

14

381972A1

SEAL,592.5mm L

1шт.

15

369450A1

GRILLE

Air Recirculation; Incl. Ref 16

1шт.

16

260-1436

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

2шт.

17

414600A1

SCREW,Pan HD, M8 x 1"

4шт.

18

177269A1

SPRING NUT,M4.2

4шт.

18a

409723A1

PLUG

Plastic, Fits 5.5 mm dia. Hole

4шт.

380719A2

INTERIOR LIGHT

(If Pin A = 12V - Order 47602061, if Pin A = Grd - Order 47774628) Dome Lamp; Incl. Ref 19 - 21; Replaces 380719A1

1шт.

47602061

COURTESY LIGHT

1шт.

47774628

COURTESY LIGHT

1шт.

19

NSS

NOT SOLD SEPARAT

Base

1шт.

20

N14466

BULB

1шт.

21

NSS

NOT SOLD SEPARAT

Lens; With Switch

1шт.

22

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

Base to Lens

2шт.

23

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

No. 10 x 3/4; Lamp To Headliner

2шт.

Выбрано товаров: 27
