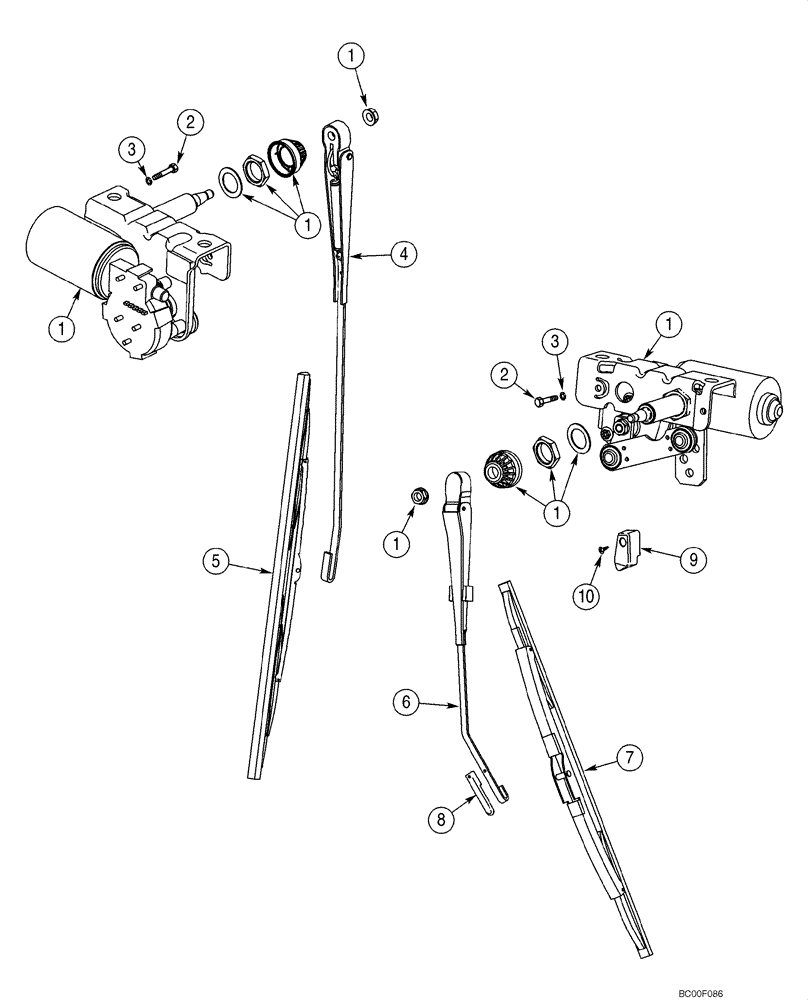

Запчасти Case 580M (09-63) - CAB - WIPERS (09) - CHASSIS/ATTACHMENTS

1

395137A1

WIPER MOTOR

MOTOR, WIPER 12V

2шт.

404617A1

WIRE HARNESS

Front Lamps and Wiper

1шт.

396018A2

HARNESS

Cab, B-Post, Rear Wiper, Radio, Blower, Dome Lamp

1шт.

386786A1

ROCKER SWITCH

Rear Wiper

1шт.

386785A1

WINDSHIELD WIPER SWI

Front Wiper

1шт.

A187714

PUSH BUTTON SWITCH

SWITCH - Rear Wiper Cutout

1шт.

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

2шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

7/16

1шт.

2

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

4шт.

3

892-11006

LOCK WASHER,M6

4шт.

4

D128745

WIPER ARM

ARM, WIPER Front Wiper

1шт.

5

236194A1

WIPER BLADE

BLADE, WIPER Front Wiper

1шт.

6

395136A1

WIPER ARM

ARM, WIPER Rear Wiper

1шт.

7

D128022

WIPER BLADE

BLADE, WIPER Rear Wiper

1шт.

8

395033A1

CLIP

1шт.

9

395026A1

RAMP

1шт.

10

395389A1

SCREW,Phillips Drive, Pan HD, M6 x 1 x 16mm

M6

1шт.
