Запчасти Case 580M (09-62) - CAB - WASHER, WINDSHIELD (09) - CHASSIS/ATTACHMENTS

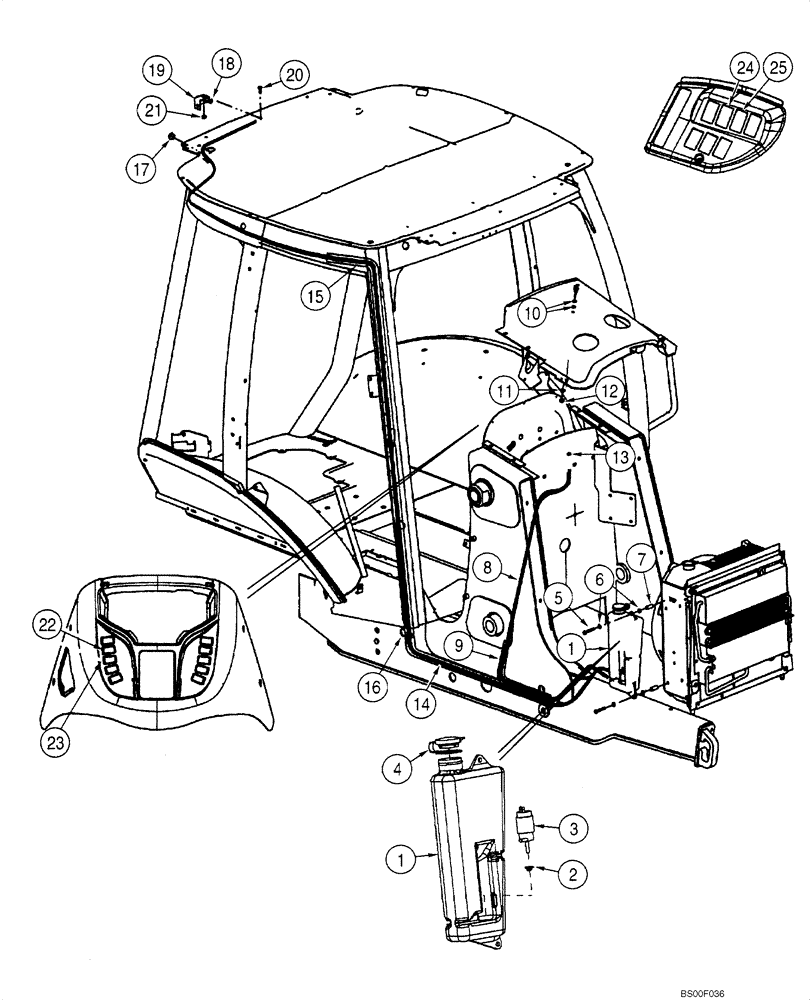

Схема запчастей Case 580M - (09-62) - CAB - WASHER, WINDSHIELD (09) - CHASSIS/ATTACHMENTS
14
24
23
5
18
25
21
3
6
20
12
10
1
17
8
9
1
7
4
19
22
16
2
13
11
15

Артикул

Название

Примечание

Количество

389423A3

RESERVOIR, WINDSHIEL

Incl. Ref 1 - 4

1шт.

1

386721A4

RESERVOIR

1шт.

2

196830A1

GROMMET

2шт.

3

1964696C2

PUMP

2шт.

4

307130A1

COVER

1шт.

5

806-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

M8 x 50; 10.9

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

7

132215A1

SPACER

2шт.

8

386716A2

HOSE,4.76 mm ID x 1830.00 mm

Front Washer, Cut From 1968141CX, No Longer Used, Order 87412016

1шт.

8

87412016

HOSE

1830 mm (72-3/64 in), Front Washer; Cut From 1968141CX

1шт.

9

386718A2

GUARD

1500 mm (59-1/16 in); Cut From 397155A1; No Longer Used; Order 386718A3

1шт.

9

386718A3

GUARD

1630 mm (64-3/16 in); Cut From 397155A2

1шт.

10

284154A1

NOZZLE,3/8" - 16

Incl. A Steel and Rubber Washer Which Are Not Serviced Separately

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

305578A1

CLAMP,7.65mm - 8.76mm

If Used

1шт.

14

386717A2

HOSE,4.76 mm ID x 4970.00 mm

Rear Washer, Cut From 397154A1, No Longer Used, Order 87412017

1шт.

14

87412017

5325 mm (209-11/16 in), Rear Washer; Cut From 1968141C1

1шт.

15

386719A2

GUARD

4000 mm (157-1/2 in); Cut From 397155A1; No Longer Used, Order 408965A1 and 408966A1

1шт.

15

408965A1

GUARD

550 mm (21-11/16 in), Rear Washer, Upper; Cut From 397155A2

1шт.

15

408966A1

GUARD

2200 mm (86-5/8 in), Rear Washer, Lower; Cut From 397155A2

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

17

386722A1

GROMMET

1шт.

18

E43769

SPRAY

Rear; Incl. Rubber Seal Which Is Not Serviced Separately

1шт.

19

386720A1

BRACKET

Rear Nozzle

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

22

386785A1

WINDSHIELD WIPER SWI

Front Wiper

1шт.

23

386787A1

WINDSHIELD WASHER SW

Front

1шт.

24

386786A1

ROCKER SWITCH

Rear Wiper

1шт.

25

386788A1

WINDSHIELD WIPER SWI

Rear Washer

1шт.

Выбрано товаров: 31
