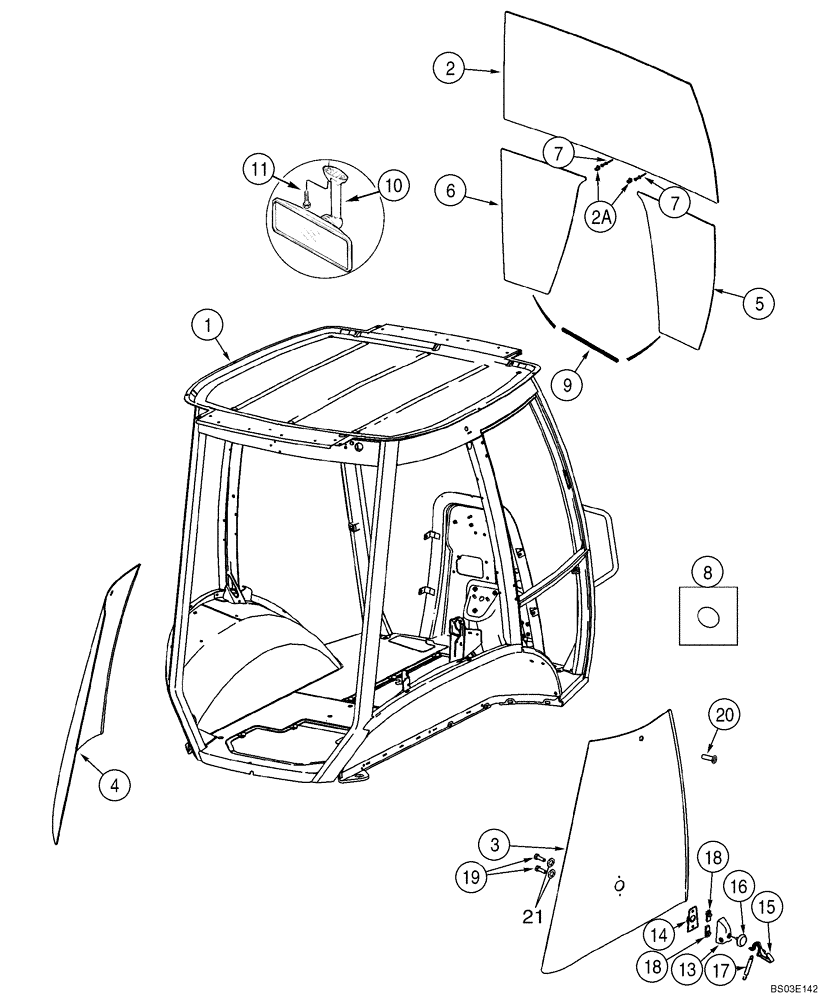

Запчасти Case 580M (09-56) - CAB - GLASS, MIRROR AND HOLD OPEN (09) - CHASSIS/ATTACHMENTS

1

336706A4

CAB

Single Door; Incl. Frame, Left-Hand Door, Right-Hand Window, All Glass, Front and Rear Wipers and Exterior Lamps; Order From Machinery Price List; Replaces 336706A3

1шт.

1

336707A4

CAB

Two Door; Incl. Frame, Left-Hand and Right-Hand Doors, All Glass, Front and Rear Wipers and Exterior Lamps; Order From Machinery Price List; Replaces 336707A4

1шт.

2

338418A1

WINDSHIELD

1шт.

2a

279482A1

CLAMP

Windshield

2шт.

411380A1

KIT

Service; Glass, Right Hand Quarter; Incl. Ref 3 and Instruction Sheet

1шт.

3

338425A1

CAB GLASS ASSY,RH, Rear Qtr

Right Rear Quarter Panel

1шт.

4

338424A1

CAB GLASS ASSY,LH, Rear Qtr

Left Rear Quarter Panel

1шт.

411379A1

KIT

Service; Incl. Ref 4 and Instruction Sheet

1шт.

5

338423A1

WINDSHIELD

Lower Right-Hand

1шт.

6

338420A1

WINDSHIELD

Lower Left-Hand

1шт.

7

151-516

RIVET,Pop, 1/8" x .775"

2шт.

8

391827A1

SPACER,11.1mm D

36шт.

9

395793A1

PROTECTION STRIP

Rear View Mirror

2шт.

10

364574A2

MIRROR ASSY.

Interior

1шт.

11

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

Hold Open

2шт.

13

405740A1

COVER

2шт.

14

405739A1

LATCH

2шт.

15

405738A1

LEVER

Hold Open

2шт.

16

400573A1

GROMMET

2шт.

17

405741A1

COIL SPRING

Latch Back

2шт.

18

833-41308

SPRING NUT,M8, U

M8

4шт.

19

400572A1

BOLT

4шт.

20

400571A2

BUMPER

Replaces 400571A1

2шт.

21

431801A1

WASHER,8.33mm ID x 19.05mm OD x 3mm Thk

Black Nylon

4шт.
