Запчасти Case 580M (09-55) - SEAT PEDESTAL AND SUSPENSION, AIR SUSPENSION (09) - CHASSIS/ATTACHMENTS

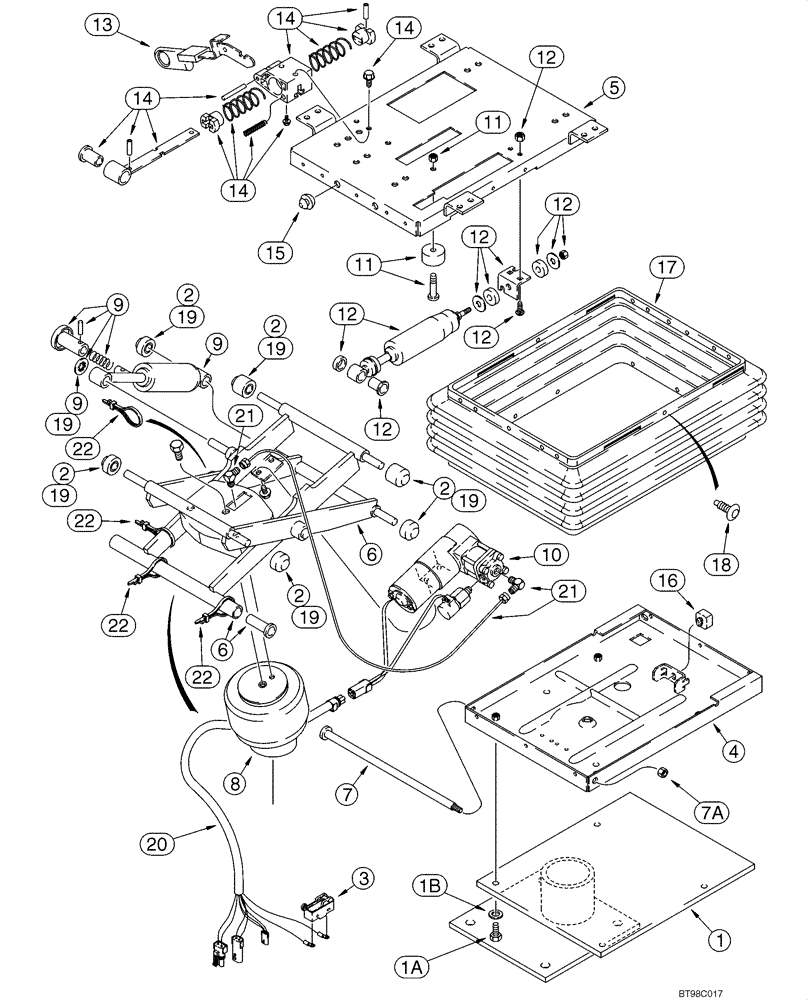

Схема запчастей Case 580M - (09-55) - SEAT PEDESTAL AND SUSPENSION, AIR SUSPENSION (09) - CHASSIS/ATTACHMENTS
15
21
8
19
19
20
1a
14
22
22
14
13
14
14
5
1b
16
7a
12
2
12
19
1
11
19
2
9
22
7
10
6
18
9
22
19
4
12
17
19
12
12
12
3
21
9
6
11
2
2
2

Артикул

Название

Примечание

Количество

397137A1

SEAT ASSY.

Air Suspension Seat, Cloth, With Armrests, Incl. Ref 1 - 22; Also Includes Parts On Figure 09-54

1шт.

1

300669A1

PEDESTAL

Support, Base

1шт.

1a

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

1b

NSS

NOT SOLD SEPARAT

Washer

2шт.

300685A1

KIT

Air Suspension Assembly, Includes Parts From Upper To Lower Housing Plates, Incl. Ref 2 - 16, 18 - 22, Includes all items shown except for the boot and pedestal, Ref 1 and 17

1шт.

2

135512A3

PACKAGE

Roller Bearing, Isolator, Includes (4) Narrow Rollers, (2) Wide Rollers, (1) Bushing, (1) Spacer, (1) Retaining Ring, Isolator

1шт.

3

D137363

SWITCH

Contact, Swivel Limit Switch

1шт.

4

226560A1

HOUSING

Lower, With Upper Stop Bracket

1шт.

5

300688A1

HOUSING

Upper

1шт.

6

132862A1

DIPPER

Arm, Suspension

1шт.

7

143786A1

SHAFT,308.9mm L

1шт.

7a

230-4216

LOCK NUT,3/8"-16, GA

1шт.

8

197793A1

SPRING

Air Spring, Includes Air Spring, J-Clip and (3) Ties

1шт.

9

132866A1

SHOCK ABSORBER

Kit, Includes Shock, (2) Bearings, Fastener, Actuator Arm, Roll Pin, Bracket and Retaining Ring

1шт.

132864A1

KIT

Kit, Compressor/Valve, Includes Compressor, Valve, Mount, Air Line Tubing, (2) Screws, (2) Sleeves and (2) Nuts, Includes 300689A1, 300690A1

1шт.

10

300689A1

KIT

Compressor/Valve

1шт.

300690A1

MOUNTING PARTS

Compressor

1шт.

11

180593A1

KIT

Bumper, Includes 231-1444, 340-12520

1шт.

231-1444

NUT,1/4"-20, GB

2шт.

340-12520

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

2шт.

12

300691A1

SPARE PART SET

Fore/Aft Isolator Latch, Includes Shock Absorber, (3) Nuts, (2) Washers, (2) Grommets, (1) Bearing and (15) Clips

1шт.

13

1981850C1

GRIP

Knob, Isolator Control, Fore/Aft

1шт.

14

300692A1

SPARE PART SET

Fore/Aft Isolator Latch, Includes Latch Assy and (2) Screws

1шт.

15

133422A1

BUMPER

Rubber

2шт.

16

A45054

BUMPER,Neoprene

Seat

1шт.

17

133421A1

PACKAGE

Boot, With Pins

1шт.

18

132872A1

KIT

Boot Pin, Package of 23 Retainers and (3) Dome Nuts

1шт.

19

180594A3

KIT

Rollers and Bearings, Includes (2) Bushings, (6) Rollers, (1) Push Nut, (5) Bearings and (2) Spacers, Includes 131-425 Nut

1шт.

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

20

300896A1

HARNESS

1шт.

21

1990548C4

KIT

Air Line and Fittings, Includes (2) Elbows, (1) Tee, (2) Adapters, 3.5 Feet Nylon Tubing, (5) Ties and (1) J-Clip, Incl. Ref 22

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

5шт.
