Запчасти Case 580M (09-52) - SEAT ASSY, MECHANICAL SUSPENSION (09) - CHASSIS/ATTACHMENTS

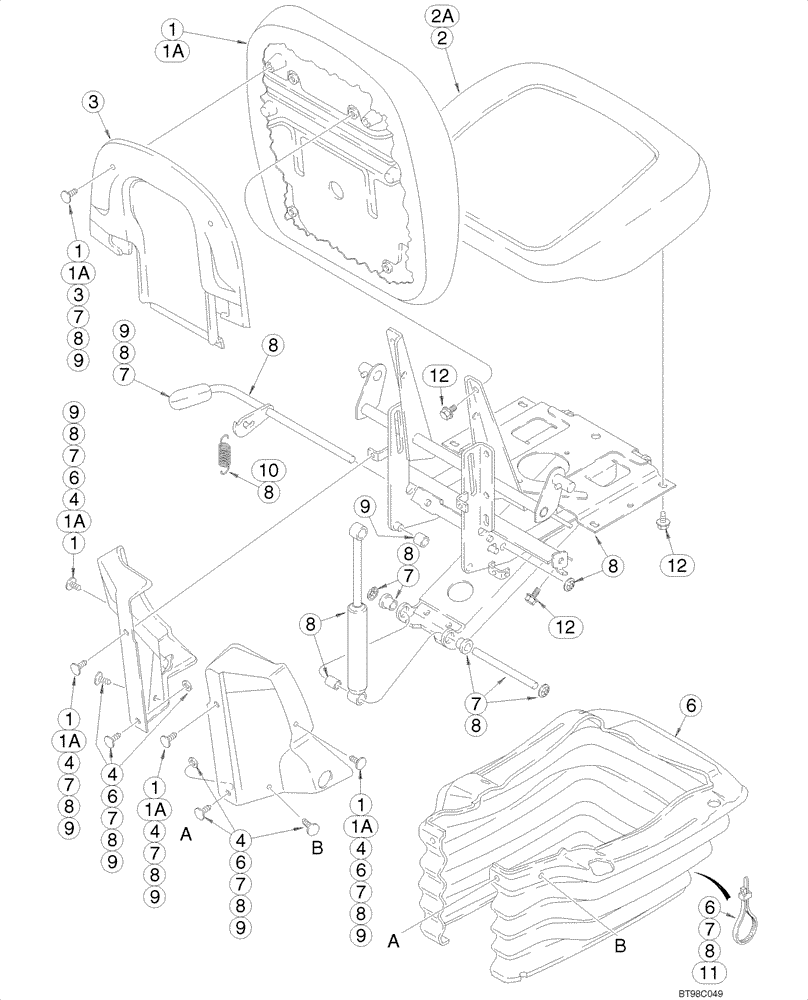

Схема запчастей Case 580M - (09-52) - SEAT ASSY, MECHANICAL SUSPENSION (09) - CHASSIS/ATTACHMENTS
1a
8
8
8
8
4
7
7
1a
1
7
2a
1a
9
6
6
9
4
7
8
10
8
7
8
4
4
8
9
7
9
3
7
6
7
12
8
11
9
1a
9
6
7
12
9
3
7
1
8
1
4
8
6
12
1a
2
8
1
6
1a
4
9
9
1
8
7
8
1
8

Артикул

Название

Примечание

Количество

397136A2

SEAT ASSY.

Cloth, Includes Seat, Suspension, Pedestal and Weight Adjuster, Without Armrests, Incl. Ref 1 - 11; Also Includes Parts On Figure 09-53; Replaces 397136A1

1шт.

397134A2

SEAT ASSY.

Vinyl, Includes Seat, Suspension, Pedestal and Weight Adjuster, Without Armrests, Incl. Ref 1 - 11; Also Includes Parts On Figure 09-53; Replaces 397134A1

1шт.

1

399757A1

KIT

Cushion, Backrest, Cloth, Includes Lumbar Knob, (6) Clips and (4) Screws

1шт.

1a

399759A1

KIT

Cushion, Backrest, Vinyl, Includes Lumbar Knob, (6) Clips and (4) Screws

1шт.

2

399758A1

KIT

Cushion, Seat, Cloth, Includes (6) Screws

1шт.

2a

399760A1

KIT

Cushion, Seat, Vinyl, Includes (6) Screws

1шт.

3

307091A1

ASSEMBLY

Kit, Backrest Shroud, Includes (2) Clips

1шт.

4

307090A1

KIT

Side Shroud, Left-Hand and Right-Hand, Includes (6) Clips, (2) Washers, (1) Height Adjustment Grip, (1) Back Angle Grip

1шт.

6

307098A1

KIT

Boot, Includes (2) Ties, (2) Washers, (4) Clips

1шт.

7

176919A1

KIT

Swing Arm Pivot Shaft, Includes (2) Flanged Bearings, (4) Push Nuts, (2) Clips, (2) Washers, (1) Grip, (2) Ties

1шт.

8

307092A1

KIT

Suspension, Includes Suspension, Back Angle Adjust, (2) Groove Pins, (1) Handle, (8) Screws, (2) Springs, (3) Washers, (1) Rivet; Includes Parts From Seat Frame To Adjuster Slides; For Additional Kit Parts See Figure 09-53, Ref 1

1шт.

8

307092A1

KIT

307092A1 Suspension Kit Also Includes (1) Spacer, (2) Ties, (8) Clips, (12) Nuts, (1) Height Adjust Grip, (1) Back Angle Grip, (1) Rake Grip, (1) Fore/Aft/Swivel Grip, (1) Decal

1шт.

9

176921A1

KIT

Plastic Components, Includes (2) Rollers, (4) Downstops, (2) Roller Guides, (2) Bearings, (1) Bumper, (4) Nuts, (10) Clips, (2) Washers, (1) Grip; For Additional Kit Parts, See Figure 09-53, Ref 2

1шт.

10

116547A1

KIT

Height Adjusting Spring, Includes (10) Shroud Retainers, (2) Washers, (2) Springs, (1) Wear Strip; For Additional Kit Parts, See Figure 09-53, Ref 6

1шт.

11

181170A1

KIT

Cable, Fore-Aft/Swivel Mechanism, Includes (2) Screws, (2) Ties, Cable, (4) Nuts

1шт.

12

NSS

NOT SOLD SEPARAT

Bolt, 5/16 Inch Thread, Length As Required, Purchase Locally, Seat Cushion and Backrest

8шт.

Выбрано товаров: 16
