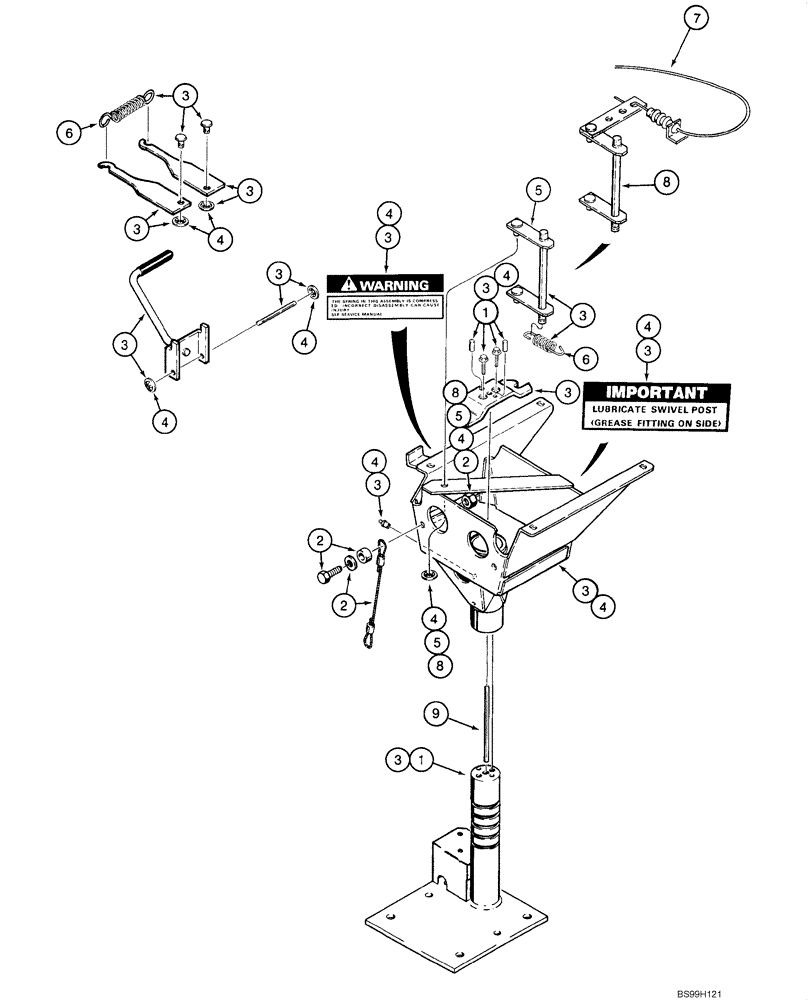

Запчасти Case 580M (09-51) - SEAT SUPPORT AND PEDESTAL, STANDARD (09) - CHASSIS/ATTACHMENTS

397132A1

SEAT ASSY.

Vinyl, Standard Seat, Incl. Ref 1 - 9, Also Includes Parts On Figure 09-50

1шт.

1

116761A3

KIT

Support, Base, Replaces 116761A2; Also Includes (6) Lock Nuts, (2) Pins, (1) Rivet, (1) Washer, (1) Spacer, 2 Screws

1шт.

2

116763A1

KIT

Cable, Anchor, Incl. Hardware For Both Ends

1шт.

3

116764A3

KIT

Pedestal, Replaces 116764A2; Also Includes (4) Lock Nuts, (1) Rivet, (1) Washer, (1) Spacer, (1) Tie, (2) Screws

1шт.

219-16

LUBE NIPPLE,5/16" NPTF

5/16 dr type x 19/32; If Used

1шт.

4

116766A2

KIT

Pedestal Box, Also Includes (4) Lock Nuts For Seat Adjuster Slide, Includes 219-16

1шт.

219-16

LUBE NIPPLE,5/16" NPTF

5/16 dr type x 19/32

1шт.

5

116767A1

KIT

Swivel Latch, Includes (6) Lock Nuts, (1) Push Nut, (1) Swivel Latch; Also Includes (4) Lock Nuts For Seat Adjuster Slide

1шт.

6

119171A1

KIT

Spring

1шт.

7

181169A1

KIT

Cable, Fore-Aft/Swivel Mechanism, Also Includes (4) Nuts

1шт.

8

253209A1

KIT

Swivel Latch, Includes (4) Lock Nuts, (1) Rivet, (1) Spacer, (1) Washer, (1) Push Nut, (1) Swivel Latch

1шт.

9

NSS

NOT SOLD SEPARAT

Pin, Seat

1шт.
