(09-49) - SEAT - MOUNTING

Запчасти Case 580M (09-49) - SEAT - MOUNTING (09) - CHASSIS/ATTACHMENTS

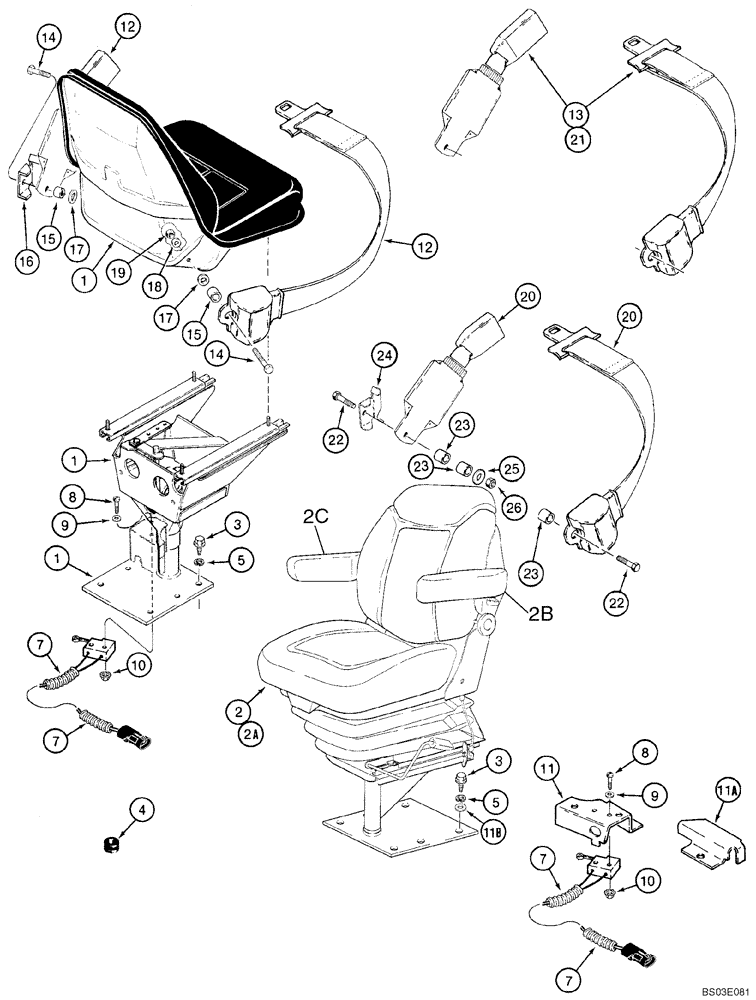

Схема запчастей Case 580M - (09-49) - SEAT - MOUNTING (09) - CHASSIS/ATTACHMENTS
23
23
7
18
14
25
22
9
16
2c
11
7
5
11a
3
3
7
23
12
19
9
21
15
17
15
26
8
2a
7
10
1
10
2
20
8
24
14
22
12
4
20
1
2b
13
1
11b
17
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

397132A1

SEAT ASSY.

Standard, Vinyl, Without Armrest, Includes Seat, Pedestal, and Support, See Figures 09-50, 09-51

1шт.

2

397137A1

SEAT ASSY.

Air Suspension, Cloth, Deluxe, With Armrests On Figure 09-54, See Figures 09-54, 09-55

1шт.

2a

397136A2

SEAT ASSY.

Suspension, Cloth, Without Armrests, Includes Seat, Suspension, and Pedestal, See Figures 09-52, 09-53; Replaces 397136A1; Order 397407A1 Service Kit For Seat Assy With Armrests

1шт.

2a

397134A2

SEAT ASSY.

Suspension, Vinyl, Without Armrests, Includes Seat, Suspension, and Pedestal, See Figures 09-52, 09-53; Replaces 397134A1; Order 397408A1 Service Kit For Seat Assy With Armrests

1шт.

2b

292262A1

ARMREST ASSY.

Kit, Left-Hand

1шт.

2c

292263A2

ARMREST ASSY.

Kit, Right-Hand

1шт.

3

604-12030

BOLT,Hex, M12 x 30mm, Cl 8.8

M12 x 30

4шт.

4

248-2373

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

7

118769A1

SWITCH

Limit Switch

1шт.

8

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

2шт.

9

495-31016

WASHER,#6

2шт.

10

193-1003

NUT,Keps, w/LW,#6-32

2шт.

11

119211A1

BRACKET

Switch Mounting, Suspension Seat

1шт.

11a

186351A1

GUARD

Harness

1шт.

12

87408889

SAFETY BELT ,50.80 mm W

Replaces D150377; If used; Standard Seat Belt Mounting

1шт.

13

87408888

SAFETY BELT ,76.20 mm W

Retractable, Replaces R58418; If used; Standard Seat Belt Mounting

1шт.

14

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

15

D150391

SPACER

2шт.

16

D150392

BRACKET

Left-Hand; Standard Seat Belt Mounting

1шт.

17

495-81169

WASHER,17/32" x 2 1/2" x .120"

Not Used On Deluxe Air Suspension Seat

2шт.

18

496-81010

WASHER

15/32 x 1 x 7/64

4шт.

19

232-4617

LOCK NUT,7/16"-20, GC

2шт.

20

87408889

SAFETY BELT ,50.80 mm W

Replaces D150377; If used; Suspension Seat Belt Mounting

1шт.

21

87408888

SAFETY BELT ,76.20 mm W

Retractable, Replaces R58418; If used; Suspension Seat Belt Mounting

1шт.

22

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

23

D150391

SPACER

2шт.

24

D150392

BRACKET

Left-Hand; Suspension Seat Belt Mounting

1шт.

25

496-81010

WASHER

15/32 x 1 x 7/64

2шт.

26

232-4617

LOCK NUT,7/16"-20, GC

2шт.
