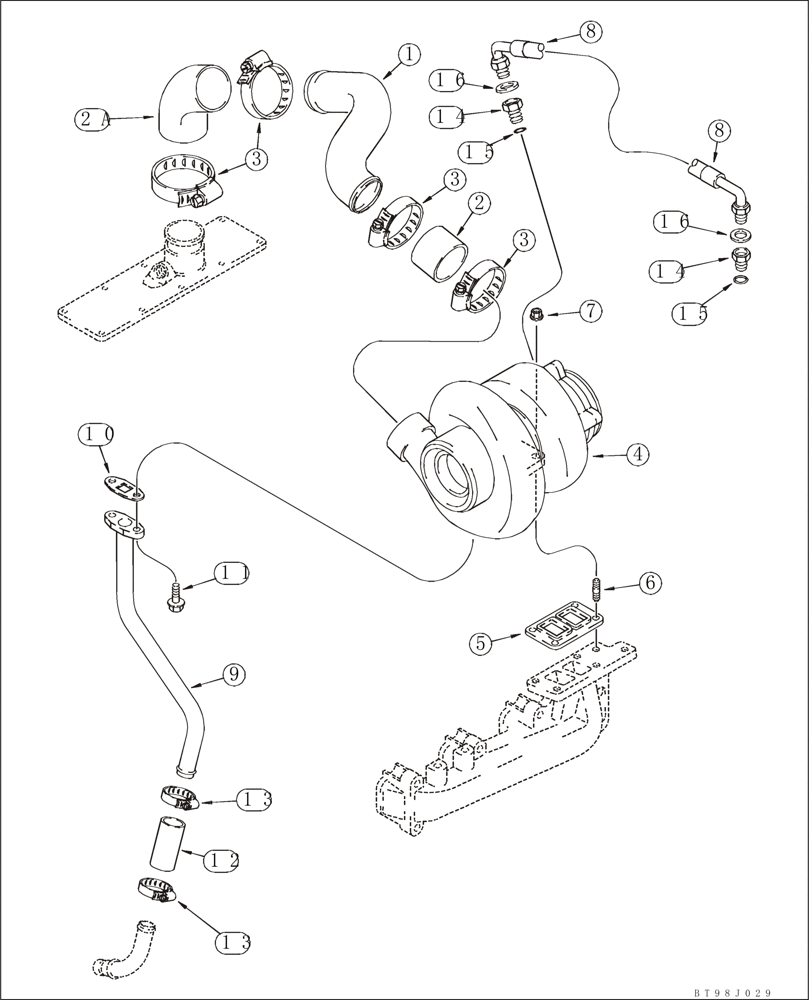

Запчасти Case 580M (02-14) - TURBOCHARGER SYSTEM - 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J931784

TUBE,50.8 mm OD x 255.98 mm L

1шт.

2

J916438

INTAKE AIR HOSE

80 mm (3-1/8 in)

1шт.

2a

CASJ933026

LARGE HOSE

HOSE, 76 mm (3 inch) long, air intake

1шт.

3

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

4

REF

INSTRUCTION

Turbocharger Assy; See Figure 02-15

1шт.

5

J919369

GASKET,0.5mm Thk

1шт.

6

J818823

STUD

M10 x 40

4шт.

7

J818824

FLANGE NUT

M10

4шт.

8

J913759

HOSE

1шт.

9

J934064

TUBE,22.22 mm OD x 393, 131 mm L

1шт.

10

J937706

GASKET,0.79mm Thk

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

12

J286499

HOSE

76 mm (3 in); Replaces J931970

1шт.

13

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

Replaces 214-1416

2шт.

14

J919687

HYD CONNECTOR

Incl. 15

2шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

16

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
