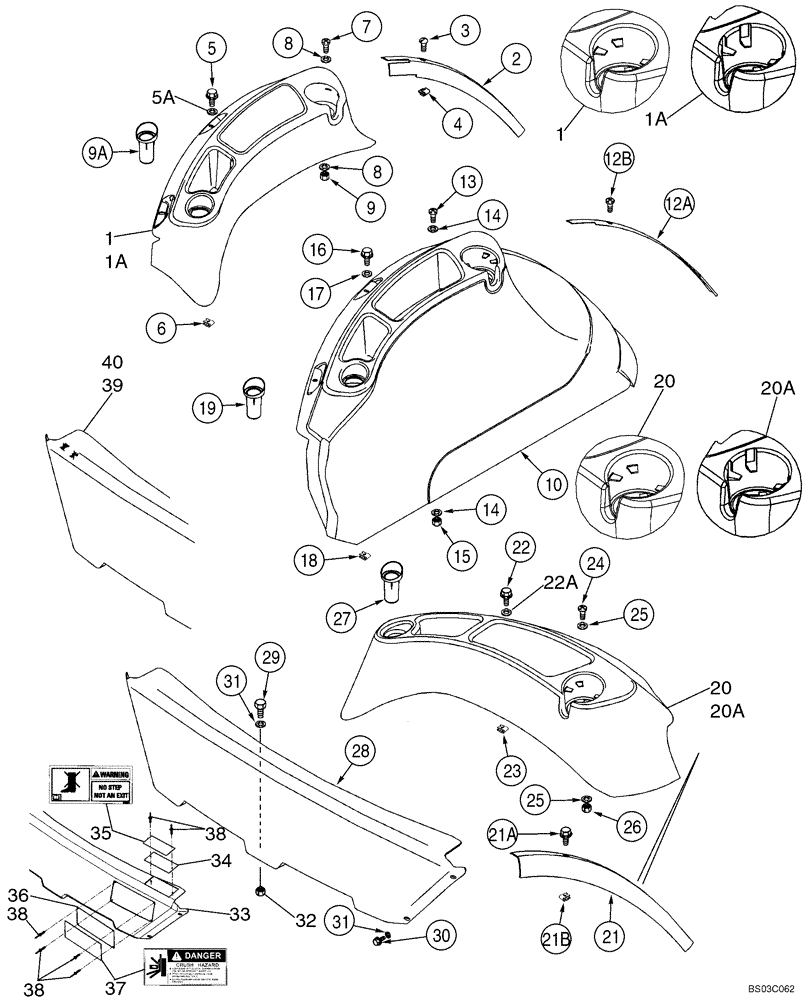

Запчасти Case 580M (09-46) - FENDER COVER, LEFT-HAND - PANEL, REAR CLOSURE, STORAGE TRAY WITH CUP HOLDER (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

Standard Interior/Cab Models

1шт.

1

400545A2

TRAY

Incl. 378740A3, 304061A1, 400077A1; No Longer Available; Order 86992247, Ref. 1A

1шт.

378740A3

TRAY

1шт.

304061A1

BUMPER,Rubber

4шт.

400077A1

PROTECTION STRIP,1300mm

1300 mm (51-3/16 in); Cut From 1977224C1

1шт.

1a

86992247

TRAY

Cab Models; Incl. 86992284, 400777A1

1шт.

NSS

NOT SOLD SEPARAT

Tray

1шт.

86992284

BUMPER,40-50 Durometer

4шт.

400077A1

PROTECTION STRIP,1300mm

1300 mm (51-3/16 in); Cut From 1977224C1

1шт.

2

397026A2

PROTECTION STRIP

1шт.

3

398113A1

SCREW,Cross Truss Hd, #10 - 24 x 0.75"

No. 10 x 3/4

3шт.

4

131-869

SPRING NUT,Ret, J, #10-24

3шт.

5

87310098

BOLT,M6 x 20 Full SST BLO

M6 x 20

2шт.

5a

895-30109

WASHER,M6 x 25 x 1.6

6,6 x 25 x 1,6 mm

2шт.

6

833-40406

NUT,M6, U

2шт.

7

440-11014

SCREW,Cross Pan Hd, #10-24 x 7/8"

No. 10 x 7/8; If Used

2шт.

7

140-117

SCREW,Cross Pan Hd, #10 - 24 x 1"

If Used

2шт.

8

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

13/64 x 3/4 x 1/16

4шт.

9

86625057

NUT,#10-24, GB

2шт.

9a

378742A3

INSERT

Swing Pin Holder

1шт.

REF

INSTRUCTION

Deluxe Interior/Cab Models

1шт.

10

86992245

COVER

Replaces 383974A3

1шт.

12a

397774A3

STRIP

1шт.

12b

398113A1

SCREW,Cross Truss Hd, #10 - 24 x 0.75"

No. 10 x 3/4

3шт.

13

440-11014

SCREW,Cross Pan Hd, #10-24 x 7/8"

No. 10 x 7/8; If Used

2шт.

13

140-117

SCREW,Cross Pan Hd, #10 - 24 x 1"

If Used

2шт.

14

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

13/64 x 3/4 x 1/16

4шт.

15

86625057

NUT,#10-24, GB

2шт.

16

87310098

BOLT,M6 x 20 Full SST BLO

M6 x 20

2шт.

17

895-30109

WASHER,M6 x 25 x 1.6

2шт.

18

833-40406

NUT,M6, U

2шт.

19

378742A3

INSERT

Swing Pin Holder

1шт.

REF

INSTRUCTION

Canopy Models

1шт.

20

400544A2

TRAY

Incl. 375094A3, 304061A1, 400077A1; No Longer Available; Order 86992243, Ref. 20A

1шт.

375094A2

TRAY

1шт.

304061A1

BUMPER,Rubber

4шт.

400077A1

PROTECTION STRIP,1300mm

1300 mm (51-3/16 in); Cut From 1977224C1

1шт.

20a

86992243

TRAY

Canopy Models; Cover Incl. 86992284, 400077A1

1шт.

NSS

NOT SOLD SEPARAT

Tray

1шт.

86992284

BUMPER,40-50 Durometer

4шт.

400077A1

PROTECTION STRIP,1300mm

1300 mm (51-3/16 in); Cut From 1977224C1

1шт.

21

397025A1

PROTECTION STRIP

1шт.

21a

398113A1

SCREW,Cross Truss Hd, #10 - 24 x 0.75"

No. 10 x 3/4

3шт.

21b

131-869

SPRING NUT,Ret, J, #10-24

3шт.

22

87310098

BOLT,M6 x 20 Full SST BLO

M6 x 20

2шт.

22a

895-30109

WASHER,M6 x 25 x 1.6

6,6 x 25 x 1,6 mm

2шт.

23

833-40406

NUT,M6, U

2шт.

24

440-11014

SCREW,Cross Pan Hd, #10-24 x 7/8"

No. 10 x 7/8; If Used

2шт.

24

140-117

SCREW,Cross Pan Hd, #10 - 24 x 1"

If Used

2шт.

25

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

13/64 x 3/4 x 1/16

4шт.

26

86625057

NUT,#10-24, GB

2шт.

27

378742A3

INSERT

Swing Pin Holder

1шт.

REF

INSTRUCTION

Rear Closure Panel/Canopy Models

1шт.

28

360594A2

PANEL

Used With 313238A1 and 384271A1 Decals; Decals Purchased Separately; No Longer Available; Order 87403455, Service Kit, Ref 40

1шт.

29

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

30

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

4шт.

32

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

411078A1

PLATE ASSY.

Incl. 33 - 38; No Longer Available; Order 87403455, Service Kit, Ref 40

1шт.

33

428407A1

PANEL

1шт.

34

410440A1

PLATE

Decal Mounting

2шт.

35

384271A1

DECAL

Warning, No Step

2шт.

36

410436A1

PLATE

Decal Mounting

2шт.

37

313238A1

DECAL

Danger, Crush Hazard

2шт.

38

410838A1

RIVET

12шт.

39

86992977

PANEL

1шт.

40

87403455

SERVICE KIT

Rear Closure Panel; Incl. Ref 39, Panel; (1) 86992976, Crush Hazard Decal and (2) 86992975 No Step Decal; Plus Latin American Spanish and French Canadian Decals

1шт.

31

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9 x 16 x 1.6 mm

5шт.
