Запчасти Case 580M (09-36) - CHASSIS - MOUNTS, POD (09) - CHASSIS/ATTACHMENTS

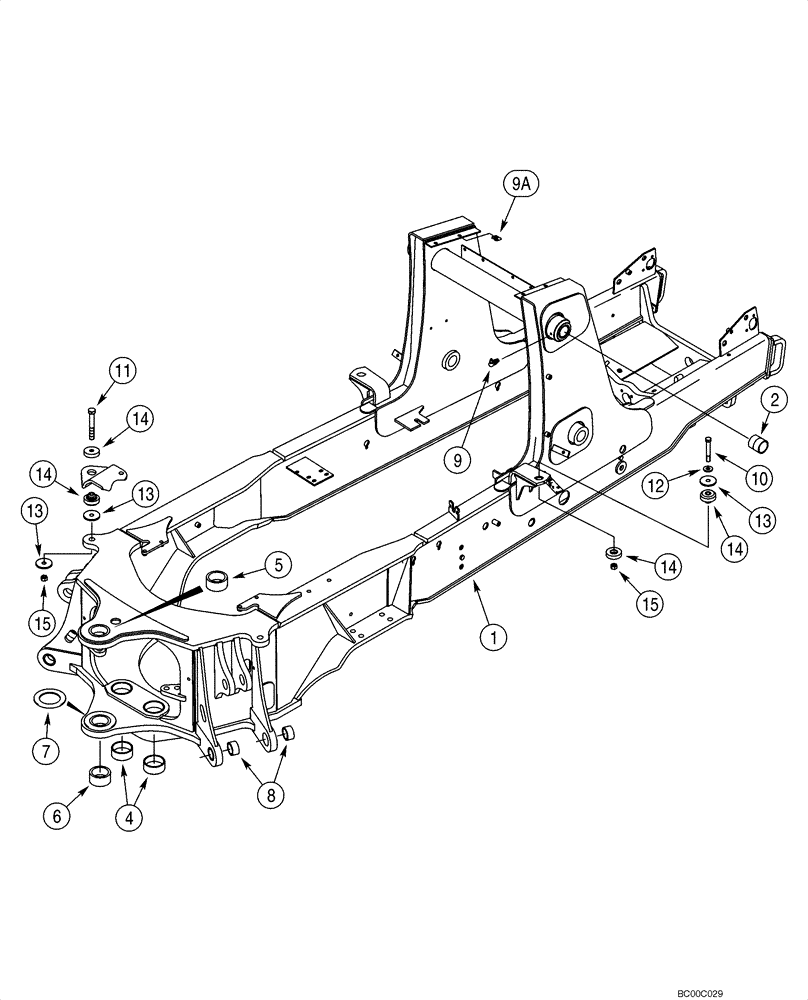

Схема запчастей Case 580M - (09-36) - CHASSIS - MOUNTS, POD (09) - CHASSIS/ATTACHMENTS
15
10
11
7
5
14
14
14
13
12
1
4
6
14
9
13
13
15
9a
2
8

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Chassis

1шт.

1

358385A1

CHASSIS

Incl. Ref 2 - 8

1шт.

2

180427A1

BUSHING,50.23mm ID x 60mm OD x 52.4mm L

2шт.

4

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

80 x 90 x 29.3 mm

2шт.

5

D151069

BUSHING,70.19mm ID x 90mm OD x 32mm L

70 mm ID

1шт.

6

D151070

BUSHING,70.19mm ID x 90mm OD x 38mm L

70 mm ID

1шт.

7

220413A1

SPACER,93mm ID x 135mm OD x 5mm Thk

93 x 135 x 5 mm

1шт.

8

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

4шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

9a

833-40310

NUT,M10, U

4шт.

REF

INSTRUCTION

Operator Compartment Pod Mounts

1шт.

10

827-16085

BOLT,Hex, M16 x 2 x 85mm, Cl 10.9

2шт.

11

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

12

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

13

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

6шт.

14

411892A1

RUBBER MOUNTING

M16; 10; Replaces 380724A2

4шт.

15

829-1416

NUT,M16, Cl 10

4шт.

Выбрано товаров: 17
