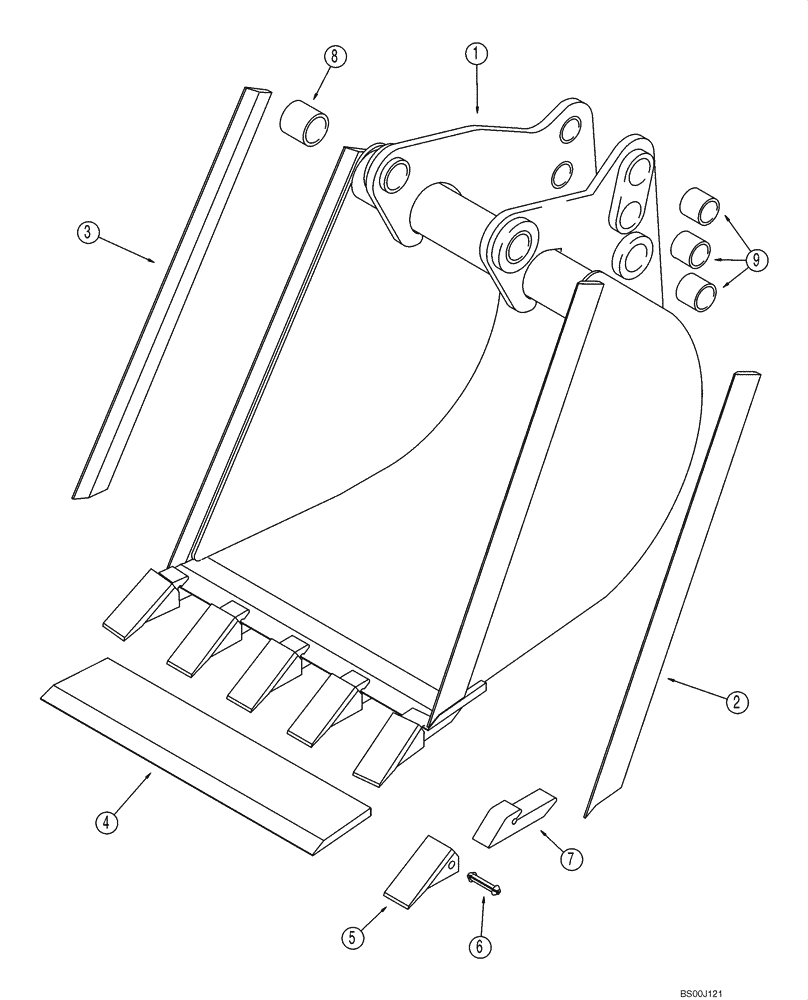

Запчасти Case 580M (09-31) - BUCKET, BACKHOE (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

610 mm (24 Inch) Wide

1шт.

1

129885A1

BUCKET

610 mm (24 in); With 5 Teeth; Order Through Parts Marketing; Incl. Ref 2 - 9

1шт.

2

129894A1

EDGE

Right-Hand

1шт.

3

129893A1

EDGE

Left-Hand

1шт.

4

129944A1

SUPPORT

1шт.

D41659

TOOTH

Incl. Ref 5 - 7

5шт.

5

D51750

BUCKET TOOTH POINT

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

7

87415240

BUCKET TOOTH SHANK

1шт.

8

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

9

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

6шт.
