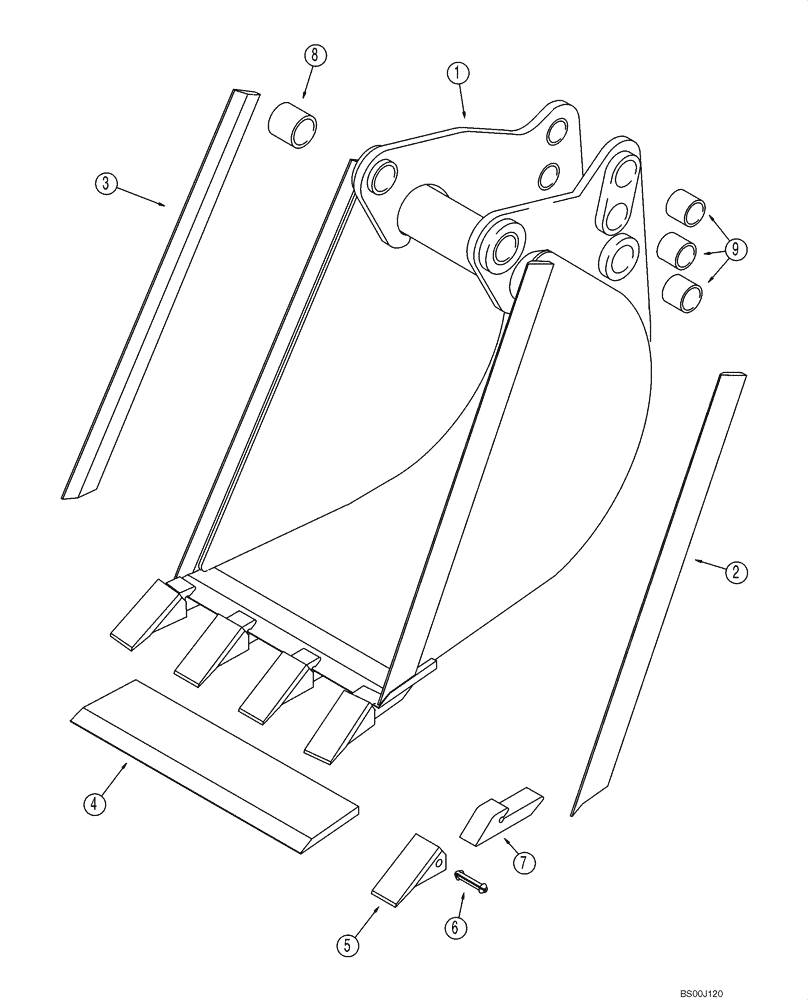

Запчасти Case 580M (09-29) - BUCKET, BACKHOE (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

457 mm (18 Inch) Wide

1шт.

1

183808A1

BUCKET

457 mm (18 in); With 4 Teeth; Order Through Parts Marketing; Incl. Ref 2 - 9

1шт.

2

129894A1

EDGE

Right-Hand

1шт.

3

129893A1

EDGE

Left-Hand

1шт.

4

183810A1

EDGE

1шт.

D41659

TOOTH

Incl. Ref 5 - 7

4шт.

5

D51750

BUCKET TOOTH POINT

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

7

NSS

NOT SOLD SEPARAT

Shank

1шт.

8

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

9

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

6шт.
