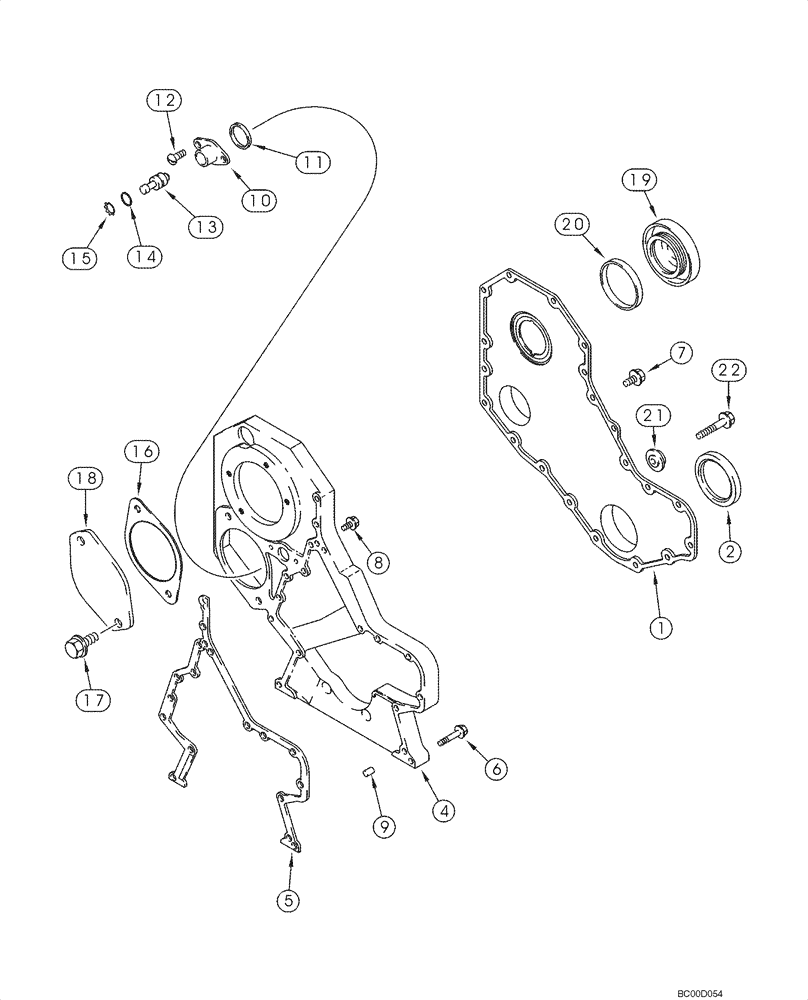

Запчасти Case 580M (02-12) - FRONT GEAR COVER - 4-390/4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J935583

COVER

1шт.

2

NSS

NOT SOLD SEPARAT

Seal, See Figure 02-26, A77889, REF 13

1шт.

4

J991069

TRANSMISSION HOUSING

Replaces J936257

1шт.

5

J938156

GASKET,0.79mm Thk

Replaces J931351

1шт.

6

J926863

FLANGE BOLT

M8 x 50; Replaces 845-8050

10шт.

7

J924962

FLANGE BOLT

M8 x 16, External

11шт.

8

J924962

FLANGE BOLT

M8 x 16, Internal

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

10

J919683

HOUSING

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

1шт.

14

J913994

O-RING

1шт.

15

100-2587

SNAP RING,0.875", Int, #87

Replaces J904849

1шт.

16

J938655

GASKET,1.27mm Thk

Replaces J929751

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

18

J914868

COVER

1шт.

19

J903463

PLUG,M63 x 5

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

21

J912772

RETAINER

1шт.

22

87421315

FLANGE BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

M8 x 65, 10.9; Replaces 845-8060

1шт.

J823494

SEALANT

3 oz, Not Illustrated

1шт.
