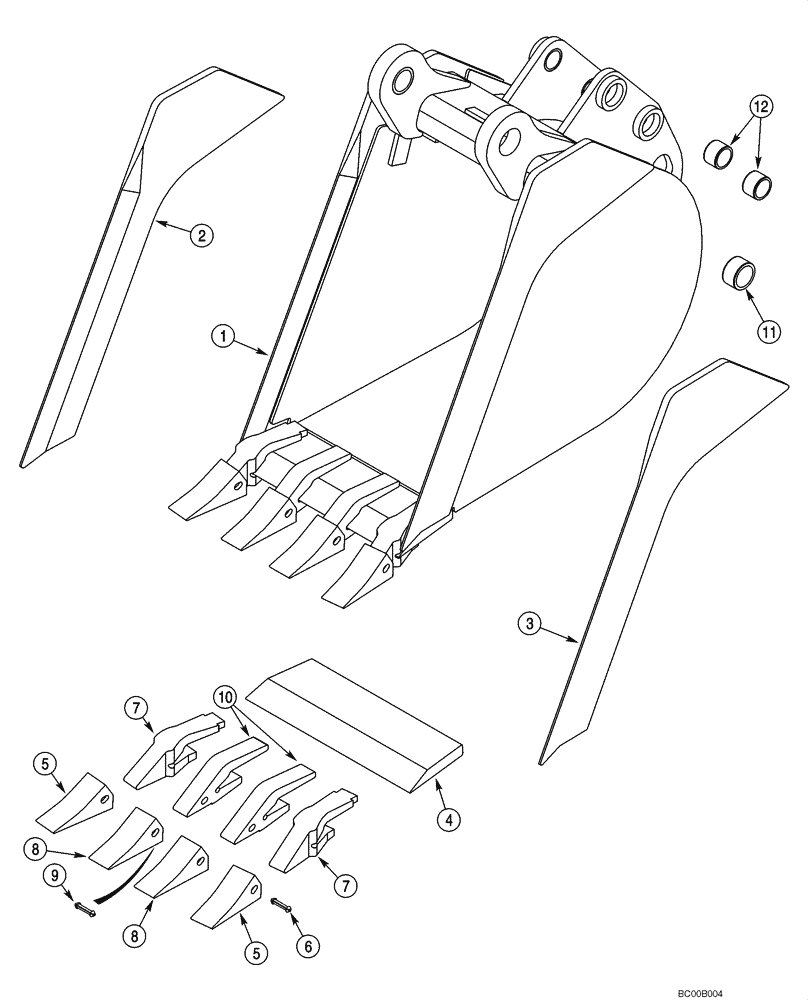

Запчасти Case 580M (09-28) - BUCKET, UNIVERSAL BACKHOE (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

457 mm (18 Inch) Wide

1шт.

1

376384A1

BUCKET

457 mm (18 in); With 4 Teeth; Order Through Parts Marketing; Incl. Ref 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

Edge, Right-Hand

1шт.

3

NSS

NOT SOLD SEPARAT

Edge, Left-Hand

1шт.

4

NSS

NOT SOLD SEPARAT

Edge

1шт.

D139851

BUCKET TOOTH

Outer; Incl. Ref 5 - 7

2шт.

5

D51750

BUCKET TOOTH POINT

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

7

D138157

SHANK

1шт.

D139849

BUCKET TOOTH

Center; Incl. Ref 8 - 10; Order Ref 8 - 10

2шт.

8

D51750

BUCKET TOOTH POINT

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

1шт.

10

D48212

SHANK

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

4шт.
