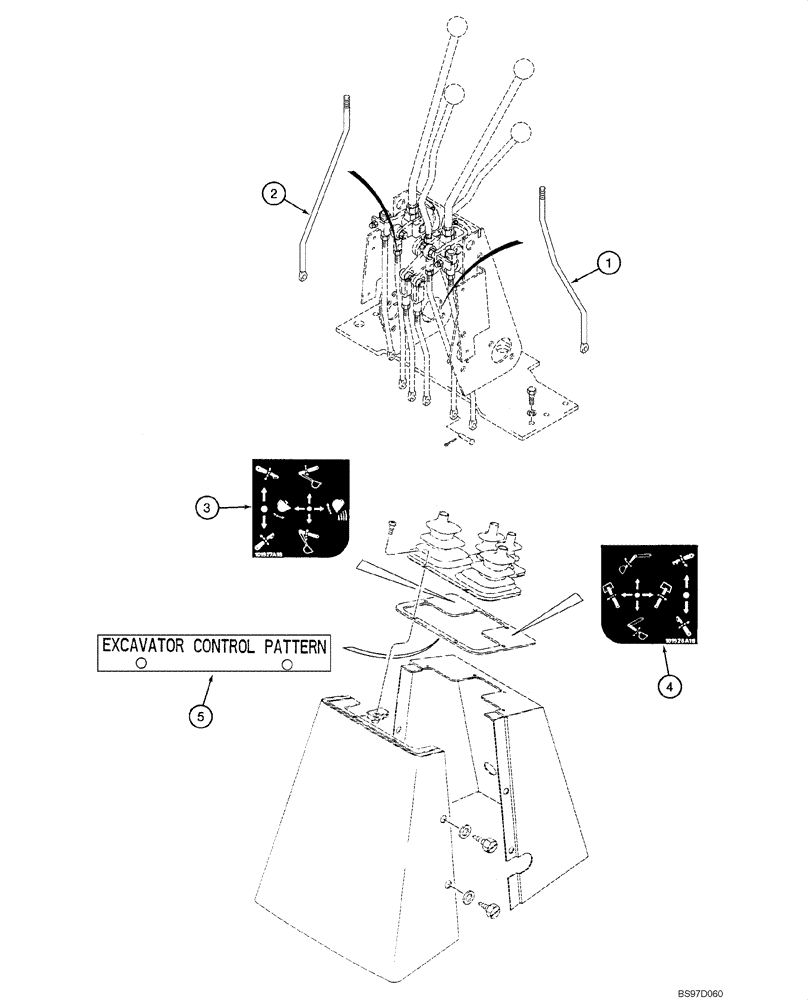

Запчасти Case 580M (09-17) - CONTROLS - BACKHOE, EXCAVATOR CONTROL PATTERN (09) - CHASSIS/ATTACHMENTS

403042A1

KIT

Excavator Control Pattern; Incl. Ref 1 - 5; Purchase From Parts and Components

1шт.

1

195030A2

ROD

Dipper; Replaces Existing Boom Control Rod

1шт.

2

195032A1

ROD

Boom; Replaces Existing Dipper Control Rod

1шт.

REF

INSTRUCTION

The right-hand control lever which used to control the dipper now controls the boom; the left-hand control lever which used to control the boom now controls the dipper.

1шт.

3

E49498

DECAL

Control, Right-Hand

1шт.

4

E49497

DECAL

Control, Left-Hand

1шт.

5

198410A1

LARGE PLATE

PLATE, LARGE Excavator Control Pattern

1шт.

REF

INSTRUCTION

The machine must be equipped with hand swing controls. If your machine is equipped with foot swing controls, the foot swing to hand swing controls field kit must be ordered and installed before installing this kit.

1шт.
