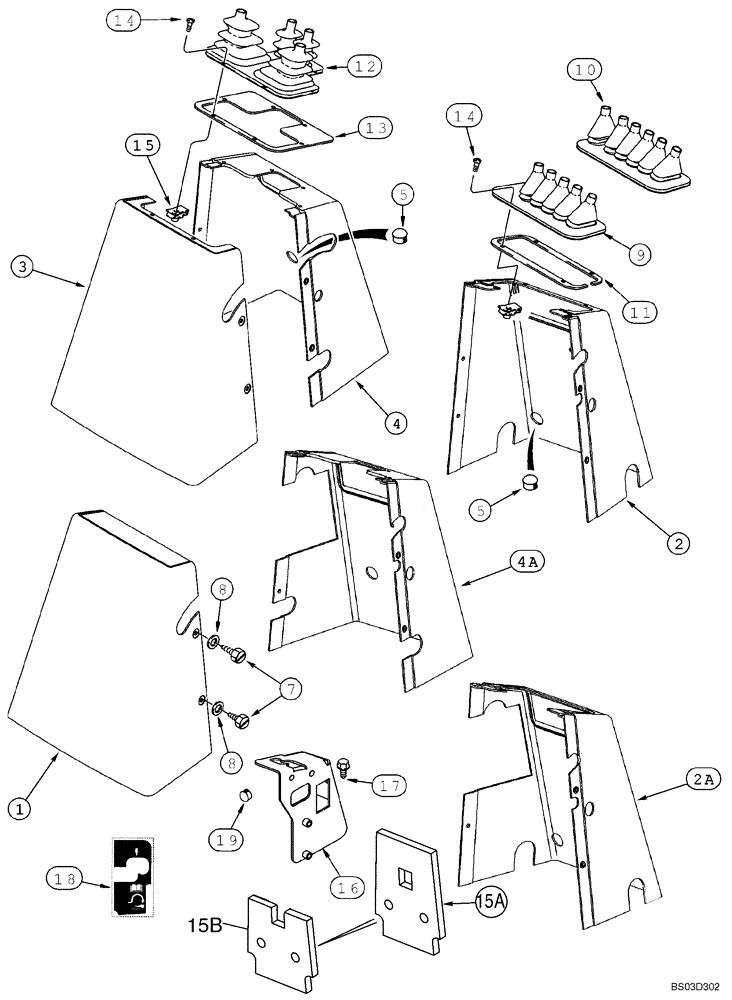

Запчасти Case 580M (09-11) - COVERS - BACKHOE CONTROL TOWER (09) - CHASSIS/ATTACHMENTS

1

363607A2

COVER

Rear; All Models With Foot Swing

1шт.

2

363606A2

COVER

Front; Foot Swing, Without Auxiliary Hydraulics

1шт.

2a

364790A2

COVER

Front; Foot Swing, With Auxiliary Hydraulics

1шт.

3

363609A2

COVER

Rear; All Models With Hand Swing

1шт.

4

363608A2

COVER

Front; Hand Swing, Without Auxiliary Hydraulics

1шт.

4a

364789A2

COVER

Front; Hand Swing, With Auxiliary Hydraulics

1шт.

5

353-411

PLUG,Dome, 1.000" hole, Nylon

1-2шт.

7

779-37616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

M6.3 x 16 st

5шт.

8

195-140

WASHER,1/4"

5шт.

9

D149866

BOOT

5 Control Levers

1шт.

10

D149867

BOOT

6 Control Levers

1шт.

11

136822A1

RETAINER

1шт.

12

D149868

BOOT

4 Control Levers

1шт.

13

136824A1

LARGE PLATE

PLATE, LARGE Used With Ref 12 Only

1шт.

14

140-106

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

4шт.

14

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

Used with Ref. 13 Retainer

6шт.

15

131-861

SPRING NUT,Tinn, U, #10-24

4 used with Ref 11 retainer; 6 used with Ref 13 retainer

4-6шт.

15a

397870A2

SEAL

Front and Rear Console Covers; Noise Barrier; Adhesive Back; No Longer Available, Order 397870A3, Ref 15B

2шт.

15b

397870A3

FOAM INSULATION

Front and Rear Console Covers; Noise Barrier; Adhesive Back

2шт.

REF

INSTRUCTION

Models With Backhoe Auxiliary Hydraulics

1шт.

16

397488A1

BRACKET

1шт.

17

281-14716

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1"

2шт.

18

397489A1

DECAL

Backhoe Auxiliary Hydraulic Control

1шт.

19

353-408

PLUG,Dome, .750" hole, Nylon

1шт.
