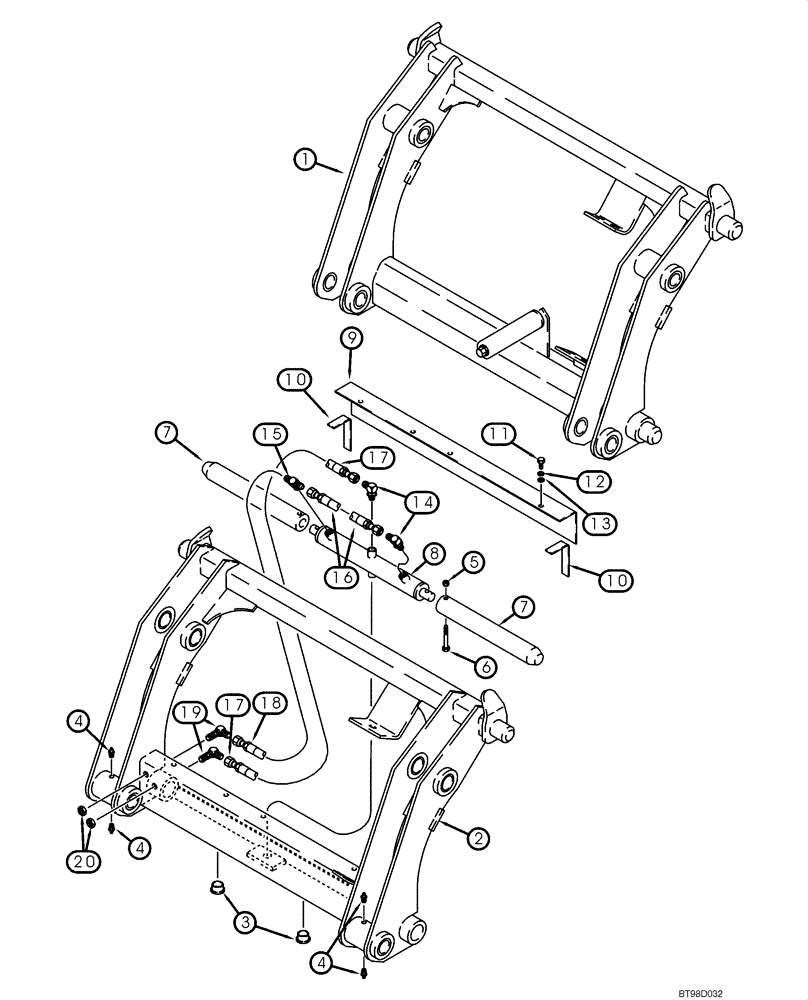

Запчасти Case 580M (09-10) - COUPLER, TOOL QUICK (09) - CHASSIS/ATTACHMENTS

1

191239A1

COUPLING

Loader, Manual Coupler; Complete; Component Parts Not Serviced Separately; Used With D121194 Bucket Position Pointer and 139235A1 Bucket Cylinder Link; See Figure 09-05, Ref 6, 13

1шт.

292969A2

COUPLING

Loader; Hydraulic Coupler; Incl. Ref 2 - 35; With Auxiliary Hydraulics; For Complete Assembly, Order From Machinery Price List, Category III; For Hydraulic Tool Quick Coupler Hydraulics; See Figure 08-22, 08-23

1шт.

2

NSS

NOT SOLD SEPARAT

Frame

1шт.

3

305497A1

PLUG,1.25" x 0.5"

1-1/4 ID x 1/2 in OD; Plastic

2шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

5

231-4246

LOCK NUT,3/8"-16, GB

2шт.

6

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

7

305496A1

PIN,49.23mm OD x 381mm L

1-15/16 OD x 15 in lg

2шт.

8

305499A1

HYDRAULIC CYLINDER,25.4mm Rod, 203.2mm Stroke

Double Acting; Component Parts Not Serviced Separately

1шт.

305499A1R

REMAN-HYD CYLINDER

580M

1шт.

305499A1C

CORE-HYD CYLINDER

Return Number

1шт.

9

305495A1

COVER

1шт.

10

NSS

NOT SOLD SEPARAT

Seal; Foam

2шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

12

492-11031

LOCK WASHER,5/16"

3шт.

13

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

3шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 237-6006

2шт.

15

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 adj Or x fl x fl; Incl. 237-6006

1шт.

16

305492A1

HYDRAULIC HOSE,260.00 mm

1шт.

17

305494A1

HYDRAULIC HOSE,387.00 mm

1шт.

18

305493A1

HYDRAULIC HOSE,235.00 mm

1шт.

19

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

20

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

21

305508A1

DECAL KIT

Incl. Four Decals; Not Illustrated

1шт.

22

307385A1

HYDRAULIC HOSE,387.40 mm

HOSE, HYDRAULIC 387mm (15-1/4") used to service couplers 292969A2 and 86982425

2шт.

22

84203107

HYDRAULIC HOSE,469.9mm L

HOSE, HYDRAULIC 469.9mm (18.5") used to service couplers 87602620 and 87602625

2шт.

23

307386A1

HYDRAULIC HOSE,628.70 mm

629 mm (24-3/4"), Not Illustrated

1шт.

24

307387A1

HYDRAULIC HOSE,717.60 mm

718 mm (28-1/4"), Not Illustrated

1шт.

25

307388A1

HOSE PROTECTION,26" / 660.4mm L

660 mm (26"), Not Illustrated

1шт.

26

307389A1

PIVOT

Not Illustrated

2шт.

27

137344A1

PLUG

Male Coupling, Not Illustrated

1шт.

28

137343A1

PLUG

Female Coupling, Not Illustrated

1шт.

29

123537A1

COUPLING, QUICK, FEM

Disconnect, Not Illustrated

1шт.

30

245423A1

FITTING

Not Illustrated

1шт.

31

126155A1

FITTING

1-1/16 blkhd fl x OR; Not Illustrated

2шт.

32

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8 fl x bkhd fl; Not Illustrated

2шт.

33

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

Not Illustrated

2шт.

34

218-1279

BHD LOCK NUT,Blkhd, 7/8"-14

Not Illustrated

2шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal; Not Illustrated

2шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.
