Запчасти Case 580M (09-02) - CONTROLS - LOADER CLAM (09) - CHASSIS/ATTACHMENTS

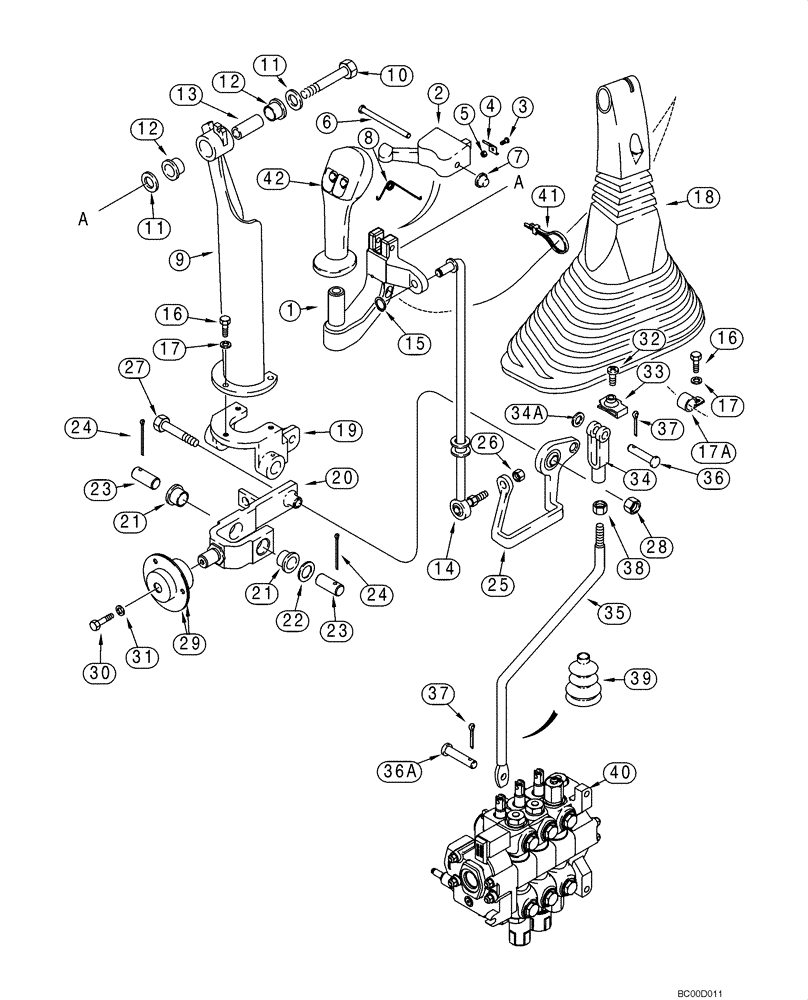

Схема запчастей Case 580M - (09-02) - CONTROLS - LOADER CLAM (09) - CHASSIS/ATTACHMENTS
38
17a
15
34a
2
17
1
13
17
9
36a
26
20
21
34
12
16
42
37
7
4
22
19
37
40
31
28
27
18
39
10
11
12
5
29
30
24
41
23
23
6
3
8
33
24
11
21
32
36
35
16
14
25

Артикул

Название

Примечание

Количество

1

297615A1

HANDLE

1шт.

2

123815A1

LATCH

1шт.

3

170-104

SCREW,Sl Pan Hd, #5 - 40 x 3/8"

No. 5 x 3/8

2шт.

4

129914A1

SPRING

2шт.

5

225-14105

NUT,#5-40

2шт.

6

439-5436

HEADED PIN,1/4" x 2 1/4", G5

1шт.

7

143210A1

BLANK-OFF PLUG

1шт.

8

124243A1

SPRING

1шт.

9

123493A1

SUPPORT

1шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

11

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

12

108088A1

BUSHING,15.96mm ID x 19.15mm OD x 15mm L

2шт.

13

133989A1

SLEEVE

1шт.

14

239306A1

THREADED ROD

1шт.

15

103-1437

SNAP RING,#37, Ext

1шт.

16

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

17

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

3шт.

17a

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

18

133617A1

BOOT

1шт.

19

195615A1

SUPPORT

1шт.

20

176311A1

BELLCRANK

Incl. Ref 21

1шт.

21

108088A1

BUSHING,15.96mm ID x 19.15mm OD x 15mm L

2шт.

22

495-81184

WASHER,21/32" x 1 1/2" x .030"

1шт.

23

102761A1

PIN,15.91mm OD x 35mm L

2шт.

24

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

25

112382A1

BELLCRANK

1шт.

26

425-116

NUT,3/8" - 24, Gr 5

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

28

231-1446

NUT,3/8" - 16, Gr 5

1шт.

29

112380A1

BEARING ASSY

2шт.

30

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

31

396-41028

WASHER,.281" x 7/8" x .098", HDN

1шт.

32

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

1шт.

33

131-121

SPRING NUT,Tinn, U, #10-24

1шт.

34

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

1шт.

34a

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

35

187438A1

THREADED ROD

1шт.

36

D149288

PIN,8.33mm OD x 30.66mm L

1шт.

36a

D149287

PIN,7.9mm OD x 26.72mm L

1шт.

37

432-612

COTTER PIN,3/32" x 3/4"

2шт.

38

425-116

NUT,3/8" - 24, Gr 5

1шт.

39

132873A1

BELLOWS

1шт.

189109A1

SPRING,Compression, 42mm OD

Boot Retainer

2шт.

40

358237A1

VALVE

Loader Control Valve; Three Spool, See Figure 08-26

1шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

42

292904A1

HANDLE

Loader Control Lever; Two Button, Declutch and Differential Lock Switches

1шт.

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

CONNECTOR

1шт.

258616A1

LOCK

1шт.

298176A1

PLUG

1шт.

345-133

GLUE

Superbonder 409, 1 ml; For Attaching Ref 1 to Ref 42

1шт.

Выбрано товаров: 50
