Запчасти Case 580M (02-09) - COLD START SYSTEM (02) - ENGINE

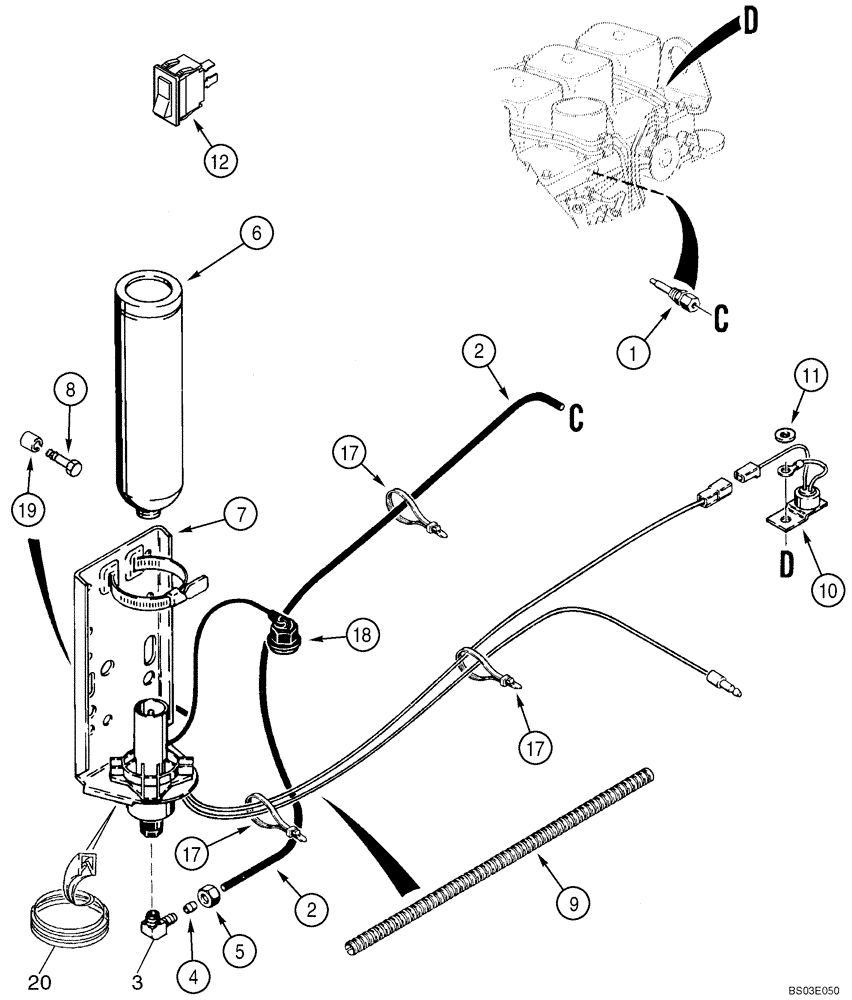

Схема запчастей Case 580M - (02-09) - COLD START SYSTEM (02) - ENGINE
11
8
18
17
6
17
2
2
3
19
1
17
4
9
5
7
10
20
12

Артикул

Название

Примечание

Количество

1

A189154

JET

.008 Inch Dual Orifice Nozzle, Component Parts Not Serviced Separately

1шт.

2

D145367

TUBE

762 mm (30 in), Cut From L60539X

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Incl. Ref 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Body

1шт.

4

222-650

SLEEVE,1/8" Tube, Comp

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

6

A171940

CYLINDER

Ether

1шт.

7

A172116

VALVE

Solenoid, 12V, 3 cc, Cold Start, Starting Fluid Injection, Component Parts Not Serviced Separately

1шт.

8

276-24924

SELF-TAP SCREW,3/8" - 16 x 1 1/2"

2шт.

9

D128402

PLASTIC-RUBBER TUBE

380 mm (15 in)

1шт.

10

A187923

SWITCH

SWITCH - Temperature, Uses Existing Hardware

1шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

12

386791A1

SWITCH

Rocker, Cold Start

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

18

254729A1

SET OF PARTS

Cap and Cord, 1 Inch Threaded Cap

1шт.

19

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

2шт.

20

399923A1

RUBBER STRIP

Trim, 203 mm (7-13/16 in)

1шт.

Выбрано товаров: 17
