Запчасти Case 580M (08-57) - CYLINDER ASSY - BACKHOE DIPPER (08) - HYDRAULICS

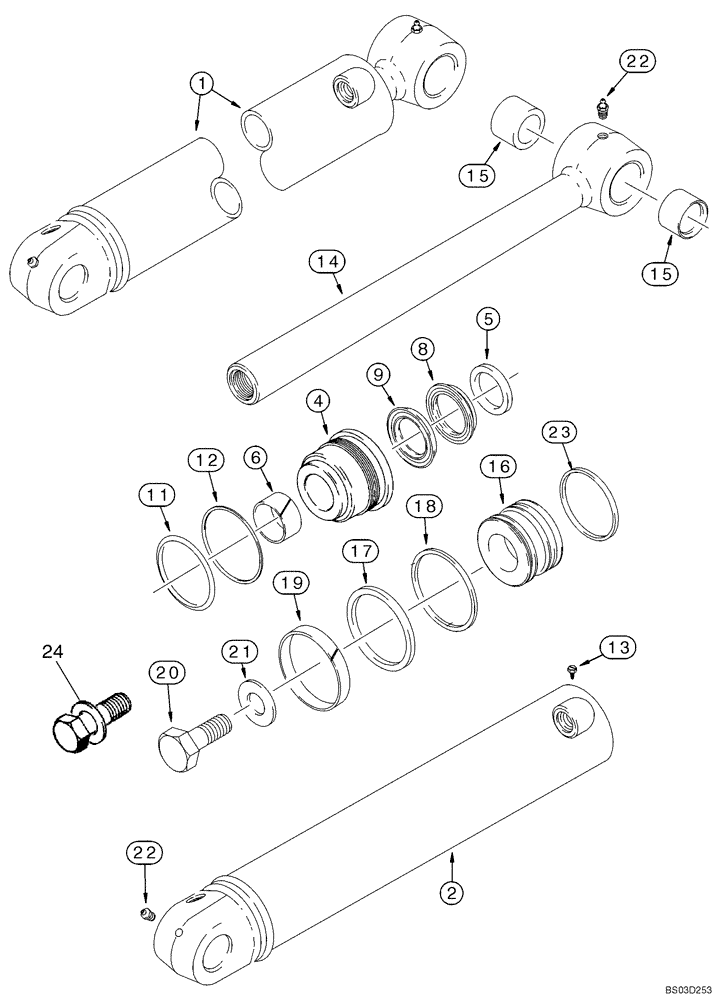

Схема запчастей Case 580M - (08-57) - CYLINDER ASSY - BACKHOE DIPPER (08) - HYDRAULICS
16
21
5
2
19
17
14
20
18
4
13
9
22
15
24
11
22
1
12
15
6
8
23

Артикул

Название

Примечание

Количество

1

233114A2

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 685.8mm Stroke

108 ID x 686 mm strk, Incl. Ref 2- 24

1шт.

1

233114A2R

REMAN-HYD CYLINDER

Reman For New PN 233114A2

1шт.

1

233114A2C

CORE-HYD CYLINDER

Return Number

1шт.

2

297952A1

BARREL,107.82 mm ID, 936 mm Length

1шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder, Incl. Ref 4 - 12

1шт.

4

234141A2

CYLINDER END CAP

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

6

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

1шт.

1542877C1

SEAL KIT,57.2mm Rod

Incl. Ref 8, 9; Not Serviced Separately; Order 234844A1 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Rod Seal; Order 234844A1 Seal Kit

1шт.

9

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 234844A1 Seal Kit

1шт.

11

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

12

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

14

175778A1

PISTON ROD

57 mm (2-1/4 in) dia, Incl. Ref 15

1шт.

15

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

2шт.

16

233110A2

PISTON,107.29mm Bore, 57.2mm Rod, 68.15mm W

1шт.

17

G110531

SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk

1шт.

18

G110529

RING

1шт.

19

G110530

RING,108mm OD, Ext

1шт.

20

28-2256

BOLT,Hex, 1-3/8" - 12 x 3-1/2", Gr 8

1-3/4 NF x 3-1/2; 8; No Longer Used; Order Ref 24

1шт.

21

G32559

WASHER

No Longer Used; Order Ref 24

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

23

233104A1

RING,103.36mm ID, Ext

1шт.

234844A1

SEAL KIT

Seal, Incl. Ref 5 - 12, 17 - 19

1шт.

24

86982443

SPECIAL BOLT,1" 3/8 x 3.50 L

1-3/8 x 3,5; Incl. Washer; Replaces Ref 20 and 21

1шт.

Выбрано товаров: 26
