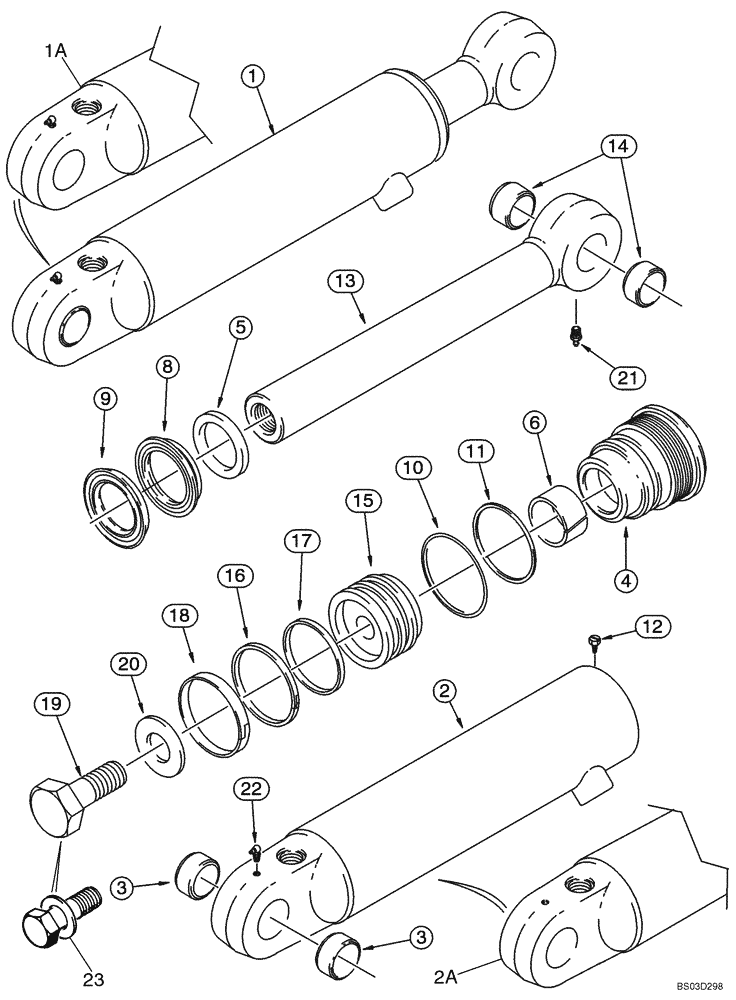

Запчасти Case 580M (08-53) - CYLINDER ASSY - LOADER CLAM (08) - HYDRAULICS

1

1346189C1

CYLINDER ASSY.

76 ID x 231 mm strk, Right-Hand, Incl. Ref 2- 23

1шт.

1

87454017R

REMAN-HYD CYLINDER

580M LOADER BACKHOE (NA), LOADER CLAM, 76 ID x 231 mm strk, Right-Hand, Reman for New PN 1346189C1

1шт.

1

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

1

1346190C1

CYLINDER ASSY.

76 ID x 231 mm strk, Left-Hand, Incl. Ref 2 - 23

1шт.

1a

1346189C2

CYLINDER ASSY.

76 ID x 231 mm strk, Right-Hand, Incl. Ref 2, 4 - 23; With Welded Bushing

1шт.

1a

87454017R

REMAN-HYD CYLINDER

580M LOADER BACKHOE (NA), LOADER CLAM, 76 ID x 231 mm strk, Right-Hand, With Welded Bushing, Reman for New PN 1346189C2

1шт.

1a

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

1a

1346190C2

CYLINDER ASSY.

76 ID x 231 mm strk, Left-Hand, Incl. Ref 2, 4 - 23; With Welded Bushing

1шт.

2

1346191C1

TUBE

Right-Hand, Incl. Ref 3

1шт.

2

1346192C1

TUBE

Left-Hand, Incl. Ref 3

1шт.

2a

1346191C2

TUBE

Right-Hand, With Welded Bushing

1шт.

2a

1346192C2

TUBE

Left-Hand, With Welded Bushing

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder; Incl. Ref 4 - 11

1шт.

4

297281A1

GLAND

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

6

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

1542875C1

SEAL KIT,44.4mm Rod

Incl Ref 8, 9; Not Serviced Separately; Order 1543267C1 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Rod Seal; Order 1543267C1 Seal Kit

1шт.

9

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 1543267C1 Seal Kit

1шт.

10

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

11

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

12

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

13

1346195C1

PISTON ROD

44 mm (1-3/4 in) dia, Incl. Ref 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

15

1340798C1

PISTON,76.2mm Bore, 44.4mm Rod, 37.85mm W

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

17

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

19

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

No Longer Used; Order Ref 23

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

No Longer Used; Order Ref 23

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

1543267C1

SEAL KIT

Incl Ref 5 - 11, 16 - 18

1шт.

23

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1,0 x 2,5; Incl. Washer; Replaces Ref 19 and 20

1шт.
