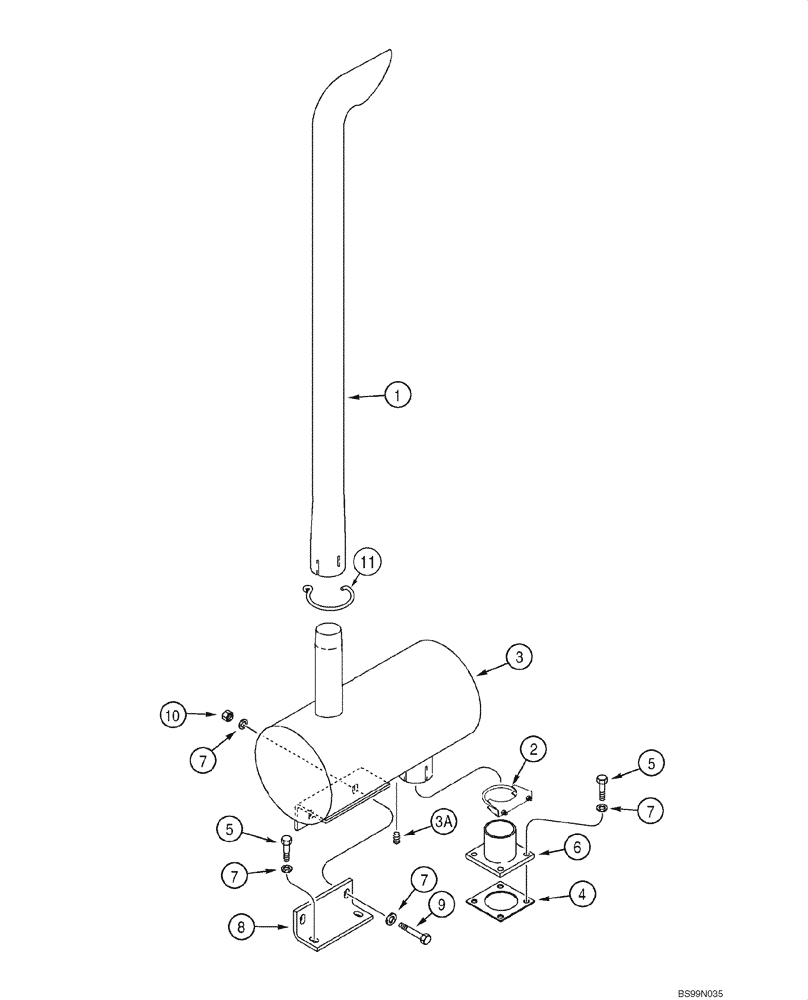

Запчасти Case 580M (02-08) - MUFFLER - EXHAUST SYSTEM (MODELS WITHOUT TURBOCHARGED ENGINE) (02) - ENGINE

1

392301A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

2

A13240

CLAMP,2-5/8" ID

Includes Hardware

1шт.

3

393569A1

MUFFLER,W/ Spark Arrester

Spark Arrester, Incl. Ref 3A

1шт.

3a

217-77

PLUG

3/8 PT, Square, Brass

1шт.

4

J912220

GASKET,0.4mm Thk

1шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

6шт.

6

L129963

ADAPTER

1шт.

7

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

10шт.

8

121421A1

SUPPORT

1шт.

9

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

401541A1

SPRING CLIP

1шт.

432012A1

KIT

Service, Incl. Ref 1, 3, 11

1шт.
