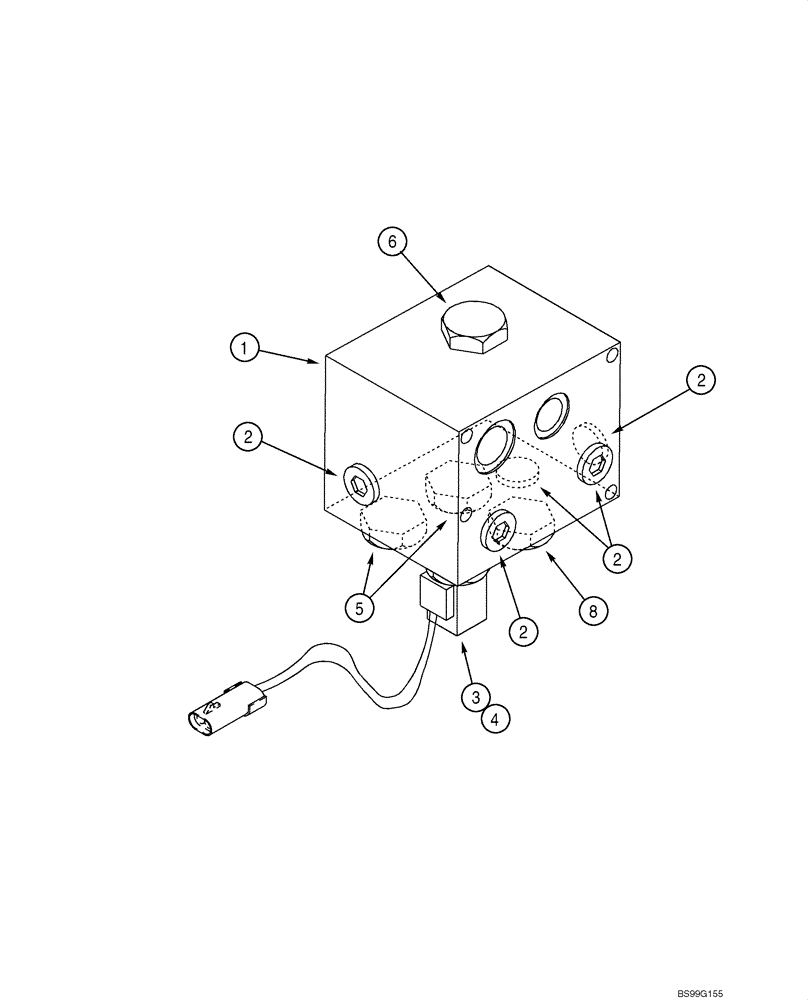

Запчасти Case 580M (08-48) - VALVE ASSY - AUXILIARY BACKHOE (08) - HYDRAULICS

301132A1

VALVE

Auxiliary Backhoe Valve, Incl. Ref 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Plug

5шт.

3

309790A1

VALVE

Component Parts Not Serviced Separately

1шт.

4

309791A1

COIL

1шт.

5

309789A1

VALVE

Component Parts Not Serviced Separately

2шт.

6

309788A1

VALVE

Component Parts Not Serviced Separately

1шт.

7

309784A1

VALVE

Component Parts Not Serviced Separately

1шт.

8

309785A1

VALVE

Component Parts Not Serviced Separately

1шт.

309787A1

SEAL PACKAGE

Seal; Incl. (2) O-Rings and (1) Backup Ring; Component Parts Not Serviced Separately; For Use With Ref 5 - 8

5шт.

149942C1

SEAL KIT

Seal; Incl. (2) O-Rings and (1) Backup Ring; Component Parts Not Serviced Separately; For Use With Ref 3

1шт.
