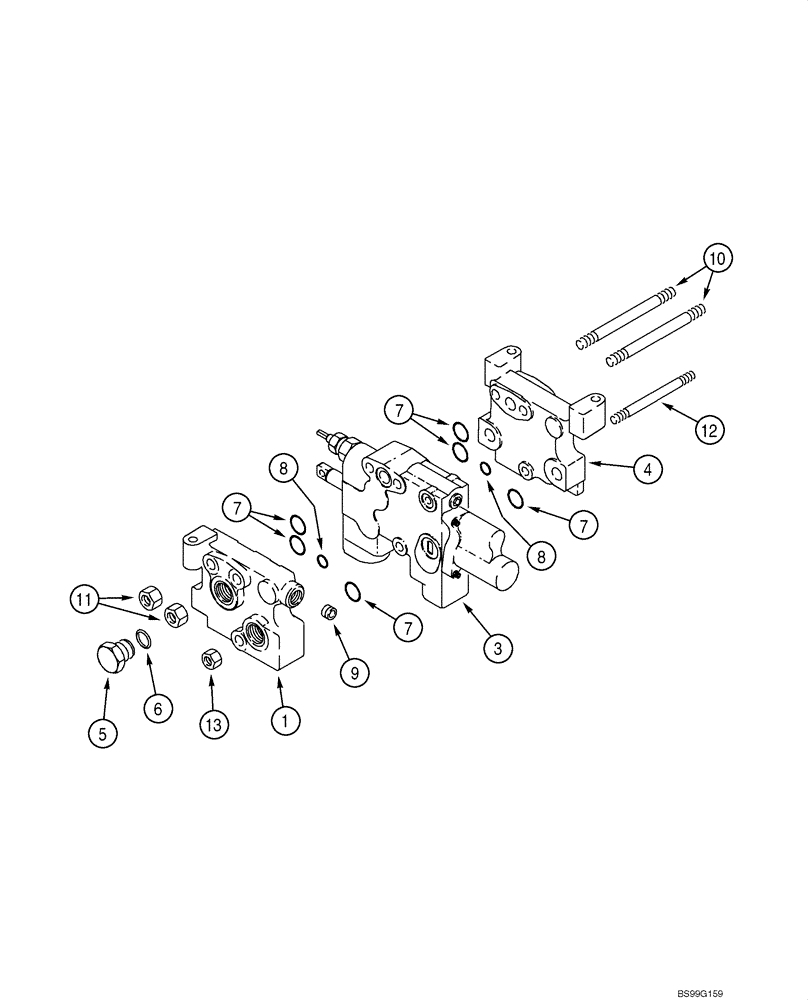

Запчасти Case 580M (08-46) - VALVE, AUXILIARY - HAND HELD HYDRAULICS (08) - HYDRAULICS

121741A1

VALVE, CONTROL

Auxiliary Valve, Incl. Ref 1 - 13

1шт.

1

121638A2

ELEMENT

Inlet/Outlet Manifold

1шт.

3

131197A1

HYD VALVE SECTION

Hand Held Auxiliary Hydraulics, See Figure 08-47

1шт.

4

121639A2

ELEMENT

Manifold; Power Beyond

1шт.

5

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. Ref 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

7

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

6шт.

8

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

2шт.

9

137039A1

PLUG

1шт.

10

1346129C3

TRUSS ROD

2шт.

11

829-1312

NUT,M12 x 1.75, Cl 10

4шт.

12

1346128C3

TRUSS ROD

1шт.

13

304951A1

NUT

M10

2шт.
