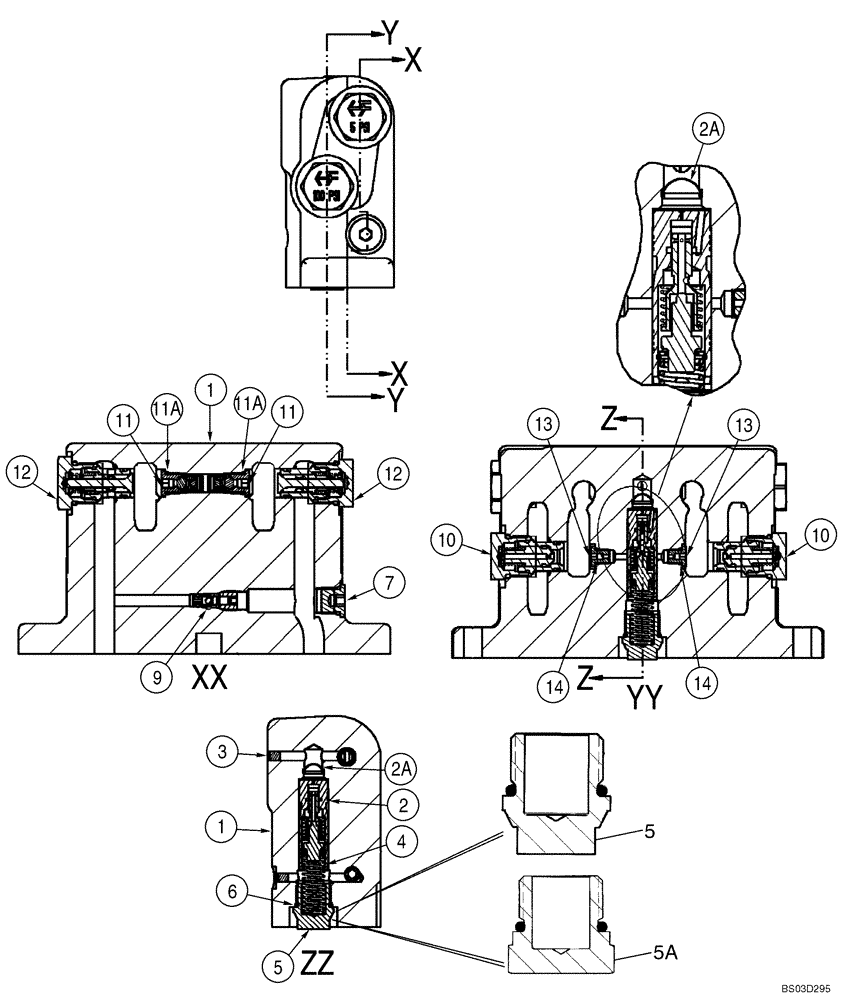

Запчасти Case 580M (08-43) - VALVE ASSY - SWING CUSHION (08) - HYDRAULICS

387627A2

VALVE, CUSHION

Swing, Incl. Ref 1 - 14; Replaces 387627A1

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

388876A6

SPOOL

Thermal Compensating; Component Parts Not Serviced Separately

1шт.

2a

NSS

NOT SOLD SEPARAT

Screen, Filter

1шт.

3

NSS

NOT SOLD SEPARAT

M5; Plug, Expansion

2шт.

4

388881A1

COIL SPRING,Compression, 12.20mm OD x 59.21mm L

1шт.

5

387782A1

PLUG

Incl. 6, If Used

1шт.

5a

409025A1

PLUG,Hex, 3/4" - 16 ORB

Incl. 6, If Used

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

7

9625178

PLUG,9/16" - 18 ORB

Incl. Ref 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.

9

388712A2

VALVE

Bi-Directional Check Valve, Includes 388713A1

1шт.

388713A1

SEAL KIT

Seal, Includes An O-Ring and Backup Ring; Component Parts Not Serviced Separately

1шт.

10

396422A2

VALVE, CHECK

100 psi, Orifice Check Valve; Component Parts Not Serviced Separately; Order 1542830C2 Seal Kit To Service External Seals

2шт.

443432A1

SEAL KIT

For Servicing External Seals on Ref 9, 10, 11 or 12; If Used

1шт.

11

400296A2

VALVE, CHECK

In-Line Check Valve; Component Parts Not Serviced Separately; Incl. Ref 11A

2шт.

11a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss seal

1шт.

12

389541A1

VALVE, CHECK

5 psi; Component Parts Not Serviced Separately; Order 1542830C2 Seal Kit To Service External Seals

2шт.

13

400657A1

PLUG,1.85mm Hole

Orifice 1.85 mm, Incl. Ref 14

2шт.

1542830C2

SEAL KIT

For Servicing External Seals on Ref 10 or 12 Valve

1шт.

14

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.
