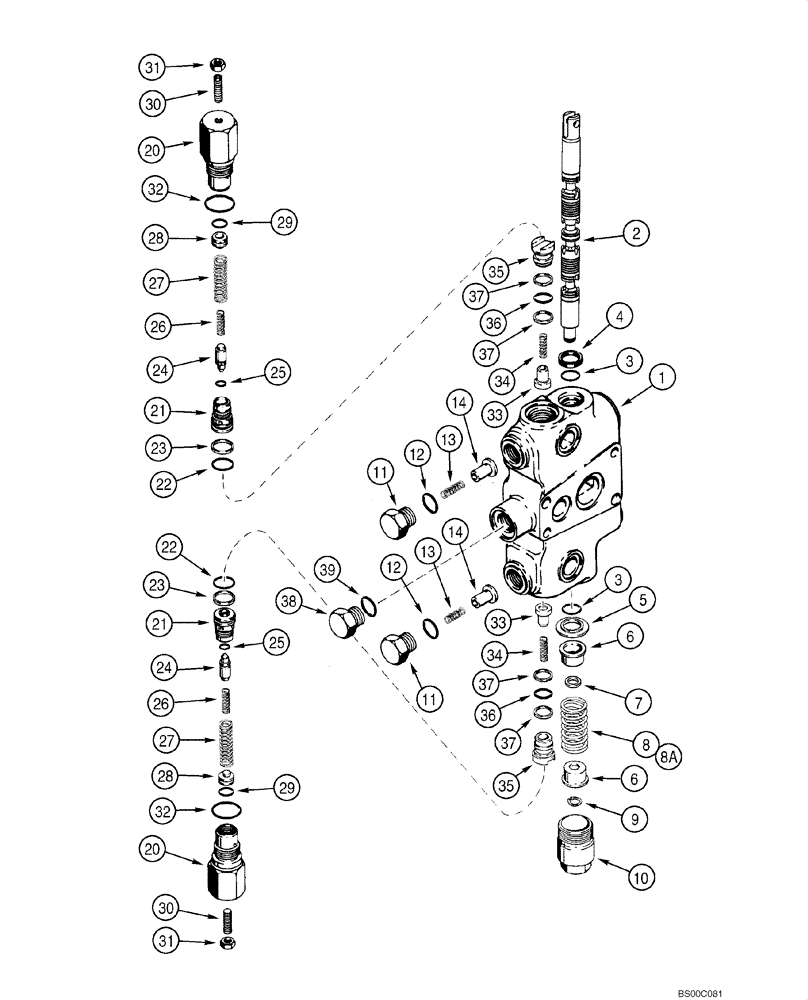

Запчасти Case 580M (08-42) - VALVE SECTION - BACKHOE SWING (08) - HYDRAULICS

144681A7

HYD VALVE SECTION

Swing, Foot Swing Control Valve, Incl. Ref 1 - 8, 9 - 39

1шт.

144682A7

HYD VALVE SECTION

Swing, Hand Swing Control Valve, Incl. Ref 1 - 7, 8A - 39

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

2шт.

7

332753A1

SPACER

1шт.

8

1986722C1

SPRING

2-1/4, Foot Swing Section

1шт.

8b

1994596C1

SPRING

Hand Swing Section, Purple

1шт.

9

100-1647

SNAP RING,#47, Ext

1шт.

10

G33080

CAP

1шт.

345-601

LOCTITE

No. 203; 1 ml

1шт.

1346221C3

VALVE

Anticavitation Valve, Incl. Ref 11 - 14

2шт.

11

332473A1

PLUG,Hex, 7/8" - 14

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

13

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

1шт.

14

G34938

VALVE POPPET,6.55mm ID x 17.48mm OD x 17.02mm L

1шт.

1346105C2

SEAL KIT

Seal, Incl. 3, 4, 12, 22, 23, 32, 36, 37; Plus Additional O-Rings Not Required For This Application

1шт.

G107786

VALVE, PRESSURE RELI

EF Circuit Relief Valve, Incl. 20 - 32, Used In Production; Order G109449 Circuit Relief Valve Kit For Service

2шт.

20

NSS

NOT SOLD SEPARAT

Housing

1шт.

21

NSS

NOT SOLD SEPARAT

Seat

1шт.

G109449

KIT

Service For G107786 Circuit Relief Valve; Kit Includes Instruction Sheet and G109447 Circuit Relief Valve, Which Is The Same As G107786 Except With A Different Pressure Setting

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

23

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

24

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

25

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

26

NSS

NOT SOLD SEPARAT

Spring

1шт.

27

NSS

NOT SOLD SEPARAT

Spring

1шт.

28

NSS

NOT SOLD SEPARAT

Piston

1шт.

29

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

30

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

Oval pt

1шт.

31

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

1346219C3

VALVE, CHECK

Load Check Valve, Incl. Ref 33 - 37

2шт.

33

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

1шт.

34

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

1шт.

35

1343708C1

PLUG

1шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

37

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

1шт.

38

214389

PLUG,3/4" - 16 ORB

Includes Ref 39

1шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

1346105C2

SEAL KIT

Seal, Incl. Ref 3, 4, 12, 22, 23, 32, 36, 37; Plus Additional O-Rings Not Required For This Application

1шт.
