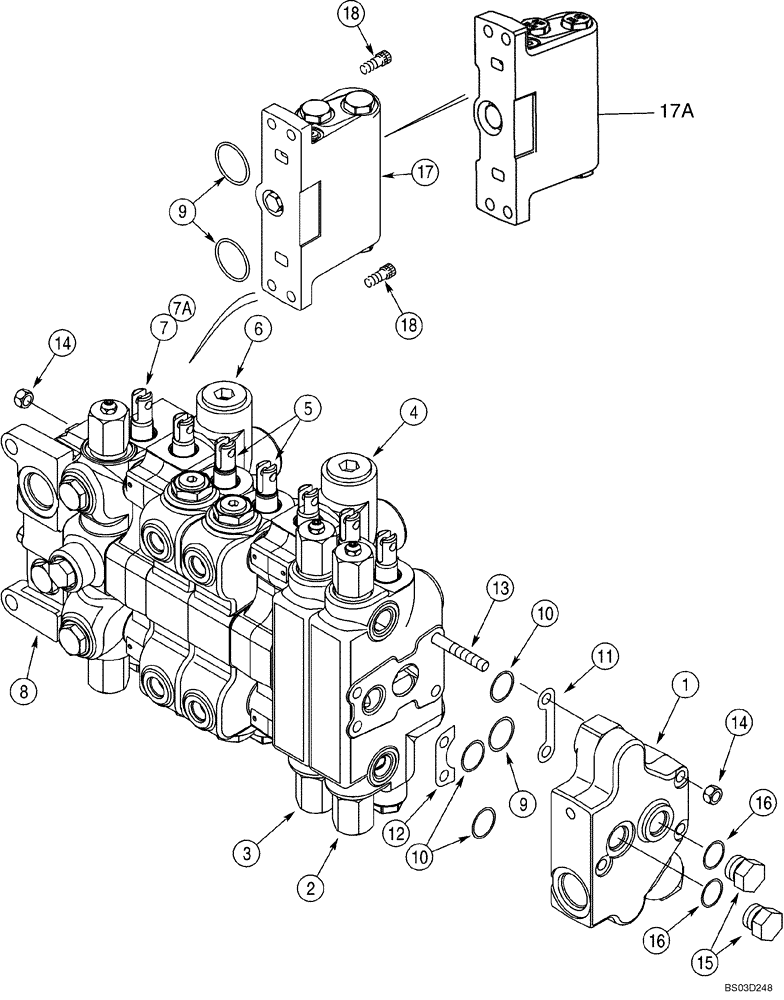

Запчасти Case 580M (08-34) - VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (WITHOUT EXTENDABLE DIPPER AND WITH AUXILIARY HYDRAULICS) (08) - HYDRAULICS

353803A3

VALVE, CONTROL

Foot Swing, Incl. Ref 1 - 7, 8- 18, If Used

1шт.

353802A3

VALVE, CONTROL

Hand Swing, Incl. Ref 1 - 6, 7A - 18, If Used

1шт.

1

400454A1

HYD VALVE SECTION

Outlet, See Figure 08-37

1шт.

2

396997A1

HYD VALVE SECTION

Options, Auxiliary Hydraulics, See Figure 08-45

1шт.

3

396919A1

HYD VALVE SECTION

Bucket, See Figure 08-38

1шт.

4

375783A2

HYD VALVE SECTION

Dipper, See Figure 08-39

1шт.

5

316416A1

VALVE BLOCK

Stabilizer, Left-Hand and Right-Hand, See Figure 08-40

2шт.

6

375782A2

HYD VALVE SECTION

Boom, See Figure 08-41

1шт.

6

375782A2R

REMAN-HYD VALVE

Reman - Boom, See Figure 08-41

1шт.

6

375782A2C

CORE-VALVE HYD

Core Return Number

1шт.

7

144681A7

HYD VALVE SECTION

Swing, Foot Swing Control Valve, See Figure 08-42

1шт.

7a

144682A7

HYD VALVE SECTION

Swing, Hand Swing Control Valve, See Figure 08-42

1шт.

8

1542829C1

HYD VALVE SECTION

Inlet, See Figure 08-37

1шт.

9

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

10шт.

10

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

24шт.

11

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

8шт.

12

G33965

SHIM,22.86mm OD x 0.06mm Thk

8шт.

13

G108899

ROD

3/8 x 18-15/16 in

4шт.

14

425-106

NUT,3/8"-16, Cl 5

8шт.

15

86512512

PLUG,7/8" - 14 ORB

Incl. Ref 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

17

387627A1

VALVE, CUSHION

Swing, See Figure 08-43; No Longer Available, Order 387627A2, Ref. 17A

1шт.

17a

387627A2

VALVE, CUSHION

Swing, See Figure 08-43

1шт.

18

863-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30; 12.9

4шт.

1346107C2

SEAL KIT

Seal, Incl. Ref 9, 10; Plus Additional O-Rings Not Required For This Application; If Used

1шт.

437754A1

SEAL KIT

Incl. Ref 9, 10; Plus Additional O-Rings Not Required For This Application; If Used

1шт.
