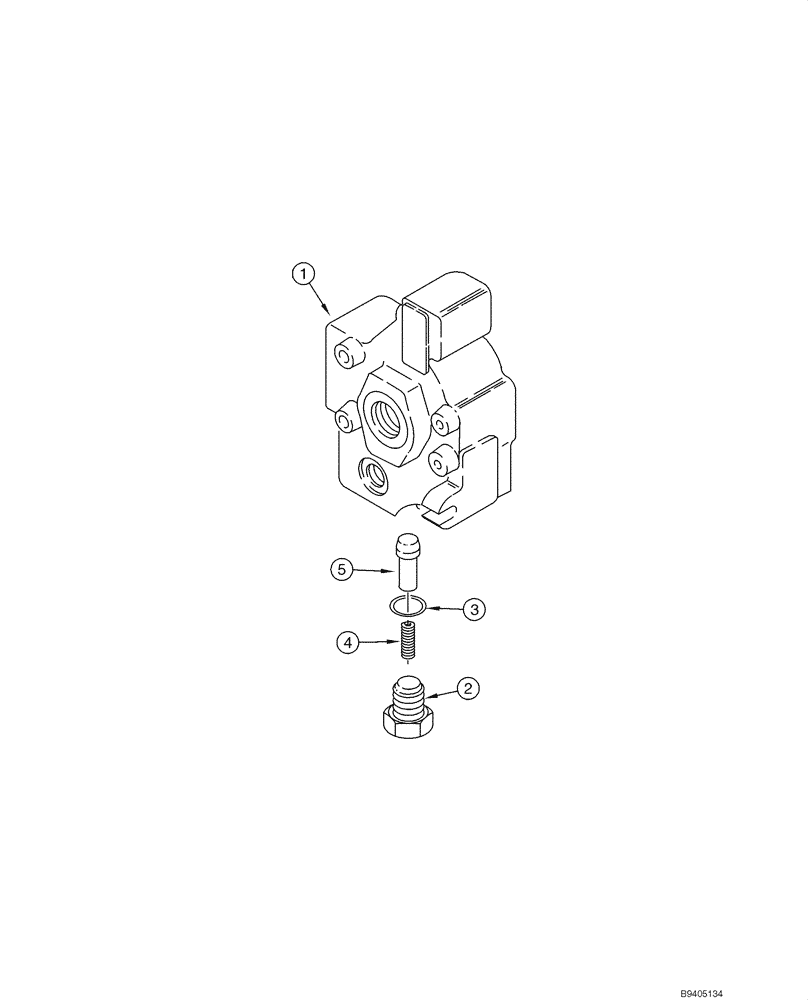

Запчасти Case 580M (08-30) - VALVE SECTION - OUTLET (08) - HYDRAULICS

132004A2

HYD VALVE SECTION

Outlet, Incl. Ref 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

293787A1

PLUG,ORB

Load Check, Incl. Ref 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

4

G109646

SPRING,Compression, 6.35mm OD x 38.35mm L

1шт.

5

283417A1

VALVE POPPET,7.14mm ID x 11.68mm OD x 25.4mm L

1шт.
