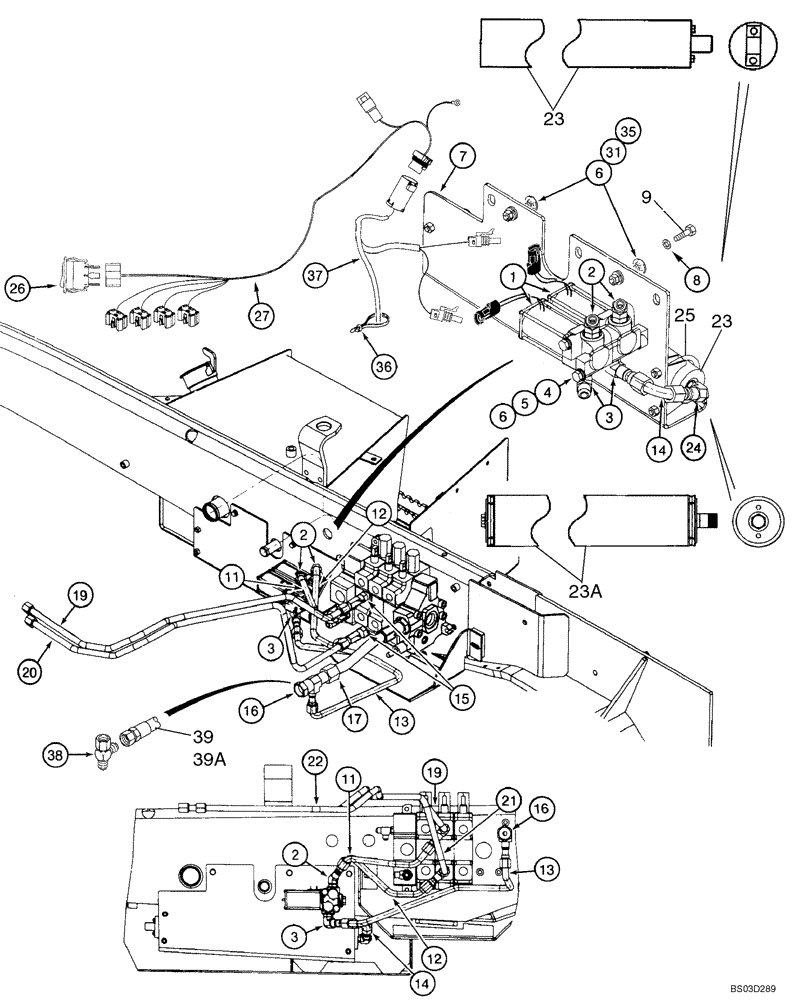

Запчасти Case 580M (08-21) - HYDRAULICS - RIDE CONTROL (297977A4 VALVE) (08) - HYDRAULICS

1

297977A4

SOLENOID VALVE

Ride Control; Incl. (2) Valves, Incl. 313310A1, 391138A1, 392401A1; Replaces 297977A3

1шт.

434560A1

KIT

Service Upgrade Kit for 2978977A3, Solenoid Valve; Incl. (2) Valves; If Used

1шт.

313310A1

GASKET KIT

Seal, Incl. (4) O-rings Which Are Not Serviced Separately, (One Kit Per Valve)

2шт.

391138A1

KIT

Incl. (1) Poppet, (2) Springs, (1) Guide Tube and Case Assembly Which Are Not Serviced Separately, Incl. 392401A1

2шт.

392401A1

COIL

1шт.

2

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 2A

2шт.

2a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

3

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

7/8 fl x 3/4 adj Or, Incl. Ref 3A

2шт.

3a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

4

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

2шт.

6

892-11010

LOCK WASHER,M10

4шт.

7

278169A1

PLATE

1шт.

8

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

11 x 40 x 10 mm thk

2шт.

9

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

2шт.

11

240709A4

TUBE

Left-Hand Solenoid Valve Upper Port To Tee At Loader Valve Upper Lift Section

1шт.

12

377997A1

TUBE

Right-Hand Solenoid Valve Upper Port To Tee At Loader Valve Lower Lift Section

1шт.

13

240706A2

TUBE

To Tee At Filter; Models With Ride Control, But Without Hydraulic Tool Quick Coupler; See Ref 39 For Models With Both

1шт.

14

240703A2

TUBE,15.88 mm OD

Accumulator To Right-Hand Solenoid Valve Lower Port

1шт.

15

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8 fl br x fl x sw; Attaches To Tees At Loader Valve Lift Section; For Tees At Loader Valve Lift Section, See Figure 08-04

2шт.

16

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

To Tee At Filter, See Figure 08-03

1шт.

17

230078A2

HOSE

415 mm (16-3/8 in); Replaces Existing Hose From Loader Valve To Filter, See Figure 08-01

1шт.

19

230072A1

TUBE

Replaces Existing Tube At Loader Valve Upper Lift Port To Left-Hand Loader Lift Cylinder Rod End, See Figure 08-04

1шт.

20

230073A1

TUBE

Replaces Existing Tube At Loader Valve Lower Lift Port To Left-Hand Loader Lift Cylinder Closed End, See Figure 08-04

1шт.

23

234412A1

ACCUMULATOR,0.98L

Ride Control, See Figure 08-49

1шт.

23a

448284A1

ACCUMULATOR,275 Bar

Ride Control, Component Parts Not Serviced Separately; Used In Production; For Service, Order 234412A1, Ref. 23

1шт.

24

218-5600

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, O-Ring

7/8 fl x 3/4 Or, Incl. Ref 24A

1шт.

24a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal, Not Illustrated

1шт.

25

A13240

CLAMP,2-5/8" ID

Two Piece, Incl. Hardware

2шт.

26

235002A1

ROCKER SWITCH

Ride Control

1шт.

27

390518A3

HARNESS

Side Console Options

1шт.

31

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

32

121413A1

FUSE,15A, Mini, Blue

Not Illustrated

1шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

37

390520A2

HARNESS

Chassis Options

1шт.

38

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8 fl br x fl x sw; Models With Both Ride Control and Hydraulic Tool Quick Coupler

1шт.

39

293037A1

TUBE,15.88 mm OD, 485, 374 mm Length

374 mm (14-23/32 in), Left-Hand Solenoid Valve Lower Port To Tee At Filter; Models With Both Ride Control and Hydraulic Tool Quick Coupler; If Used

1шт.

39a

87416314

TUBE,.625" OD

442 mm (17-13/32 in), Left Hand Solenoid Valve Lower Port To Tee At Filter; Models With Both Ride Control and Hydraulic Tool Quick Coupler; If Used

1шт.

35

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
