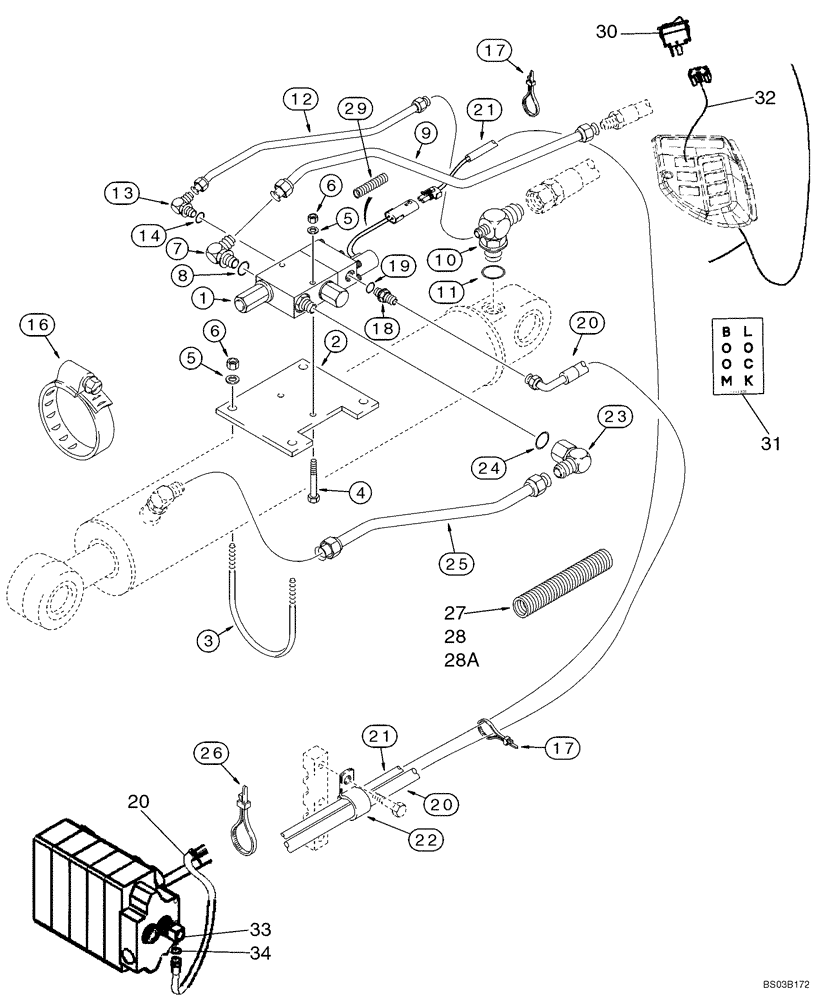

Запчасти Case 580M (08-20A) - HYDRAULICS - BACKHOE BOOM LOCK AND ELECTRICAL CIRCUIT (08) - HYDRAULICS

399227A1

KIT

Backhoe Boom Lock, Incl. Ref 1 - 34, Instruction Sheet

1шт.

1

189957A1

VALVE

Solenoid, Backhoe Boom Lock, Incl. (2) 321-6046 Warning Decals; Parts List, See Figure 08-48A

1шт.

2

D150054

PLATE

Valve mounting

1шт.

3

D150053

BOLT

3/8 in

2шт.

4

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

6шт.

6

231-1446

NUT,3/8" - 16, Gr 5

6шт.

7

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

9

191756A1

TUBE,19.05 mm OD, 728, 173 mm Length

Valve Port; Attaches to Ref 11 Hose on Figure 08-10

1шт.

10

191063A1

FITTING

Reducer, Boom Cylinder Closed End; Attaches to Ref 18 Hose, Figure 08-10

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

12

191790A1

TUBE

Pilot Port

1шт.

13

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

90 deg, 7/16-20 fl x 9/16-18 adj, Incl. Ref 14

1шт.

16

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

5-3/4 - 6-5/8 in dia, adj.

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

15шт.

18

218-5359

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

7/16-20 fl x 3/4-16, Incl. Ref 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

20

189103A1

HYDRAULIC HOSE

3700 mm (145-11/16"), Return; Attaches to Elbow at Backhoe Valve

1шт.

21

189263A1

WIRE HARNESS

Boom Lock Valve to Control Tower Harness

1шт.

22

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

Return Hose

1шт.

23

218-5382

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 deg, 1-1/16-12 fl x 1-5/16-12, Swivel, Incl. Ref 24

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

25

187612A1

TUBE,19.05 mm OD, 241, 44 mm Length

Boom Lock Valve to Boom Cylinder Rod End, See Figure 08-10, Ref 22 for Elbow

1шт.

26

D147773

CLAMP

11 in

1шт.

27

226582A1

HOSE PROTECTION

1850 mm lg, Harness Guard, Below Floor Plate

1шт.

28

220276A1

SLEEVE

610 mm lg, Harness Ahead of Swing Tower Opening

1шт.

28a

404907A1

SLEEVE

740 mm lg, Harness Behind Swing Tower Opening

1шт.

29

1999528C1

CABLE SHEATH

455 mm lg, Solenoid Wire

1шт.

30

400016A1

SWITCH

Rocker, Boom Lock

1шт.

31

L111356

DECAL

Boom Lock

1шт.

32

399246A1

WIRE HARNESS

Cab To Solenoid

1шт.

33

189414A1

ELBOW

90 deg, Incl. Ref 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.
