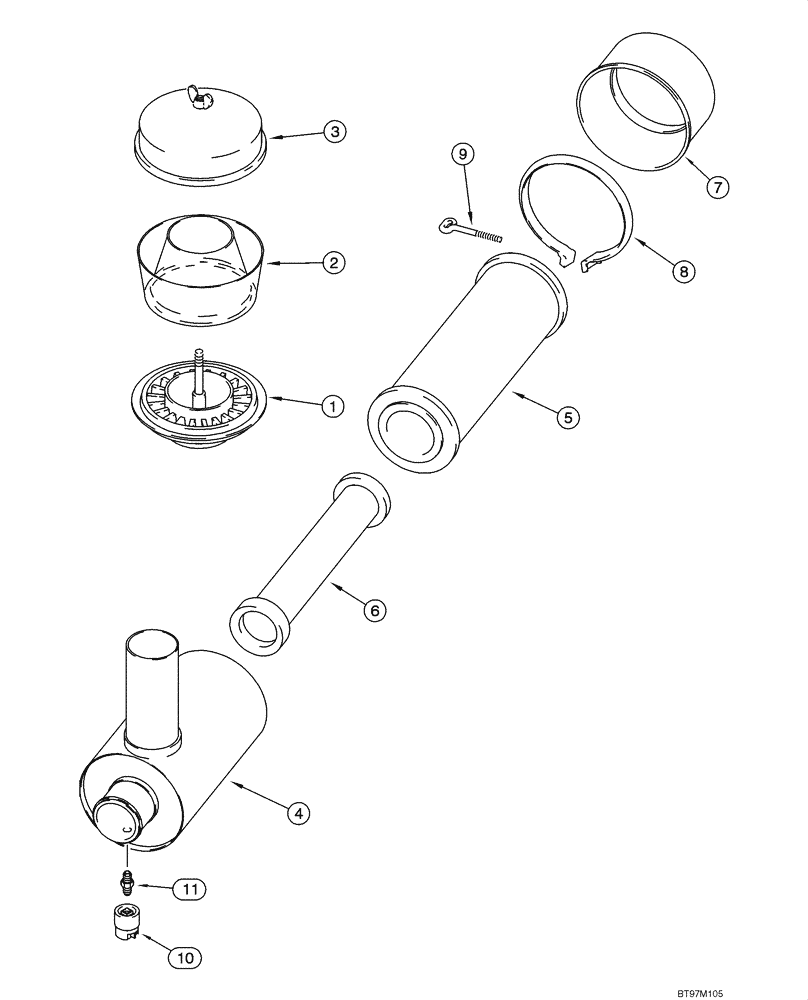

Запчасти Case 580M (02-05) - AIR CLEANER - PRECLEANER ASSY (MODELS WITHOUT TURBOCHARGED ENGINE) (02) - ENGINE

193867A1

PRECLEANER

(AIR) Incl. Ref 1 - 3A

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

365413R1

BOWL

1шт.

3

365412R91

COVER

1шт.

3a

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

2-9/16 - 3-1/2 in dia, Not Illustrated

1шт.

387810A1

FILTER ASSY

Air Cleaner Assy, Incl. Ref 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

Housing

1шт.

5

128781A1

AIR FILTER

Primary

1шт.

6

128782A1

AIR FILTER

Secondary

1шт.

7

142540A1

FILTER COVER

1шт.

8

142539A1

CLAMP,168.28mm

1шт.

9

L30338

BOLT,Band Clamp Wing, 1/4" - 20 x 3.875", Gr 2

1шт.

10

292740A1

RESTRICTION SWITCH

Air Restriction

1шт.

11

D36264

FITTING

1шт.
