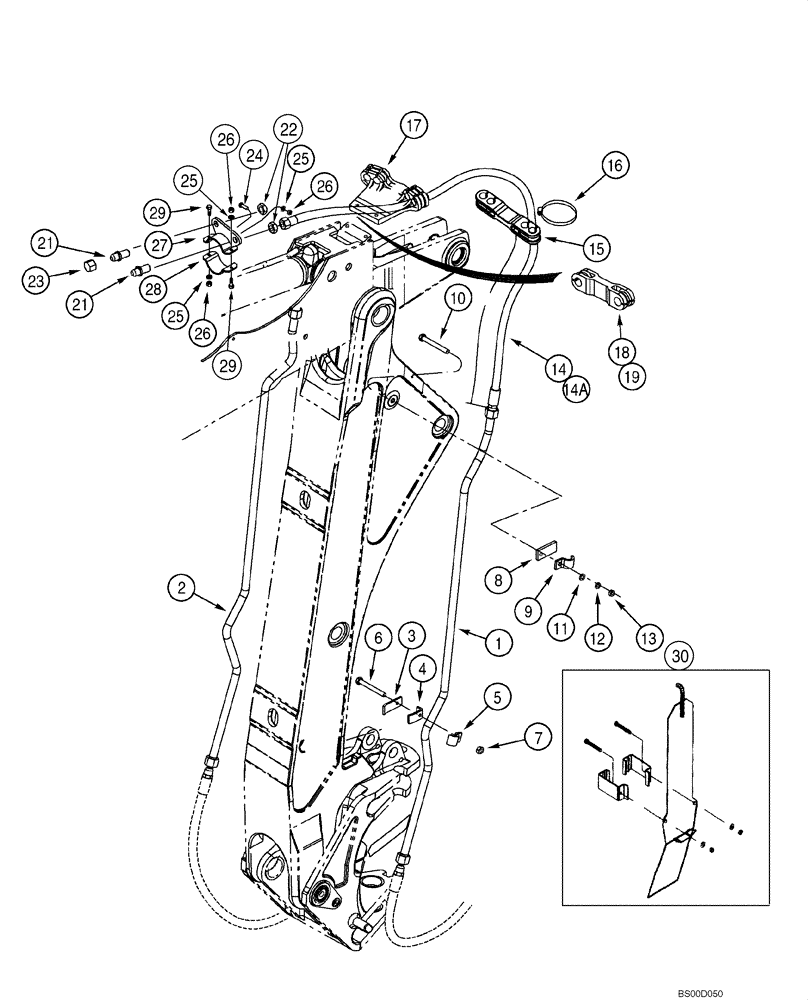

Запчасти Case 580M (08-20) - HYDRAULICS - BACKHOE AUXILIARY (08) - HYDRAULICS

REF

INSTRUCTION

At Boom and Dipper

1шт.

1

243300A1

TUBE,25.4 mm OD, 1809, 165 mm Length

1шт.

2

243404A1

TUBE,25.4 mm OD, 1809, 165 mm Length

1шт.

3

D149309

CLAMP

2шт.

4

243298A1

CLAMP

2шт.

5

242459A1

SHIN

2шт.

6

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

243398A1

SUPPORT

2шт.

9

242459A1

SHIN

2шт.

10

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

Not Required with Standard Dipper

2шт.

12

892-11010

LOCK WASHER,M10

2шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

14

243679A2

HYDRAULIC HOSE,19.05mm ID x 2665mm L

2665 mm (104-15/16"); Models with Extendable Dipper

2шт.

14b

256210A2

HYDRAULIC HOSE,19.05mm ID x 1285mm L

1285 mm (50-19/32"); Models without Extendable Dipper

2шт.

15

246158A1

CLAMP,27mm ID

Models Without Extendable Dipper; Used With (4) 214-3156 Clamps

1шт.

16

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

2-3/4 x 3-5/8

2-4шт.

17

246151A1

SUPPORT

Models With Extendable Dipper; Used With (2) 214-3156 Clamps

1шт.

18

103670A1

CLAMP,27mm ID

Rubber

1шт.

19

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

2шт.

21

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1-1/16 fl x bkhd fl

2шт.

22

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

23

218-335

CAP,37 Degree, 1 1/16"-12

2шт.

24

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

25

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

27

314319A1

SPECIAL CLAMP

1шт.

28

314320A1

SPECIAL CLAMP

1шт.

29

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

30

317988A1

GUARD

Boom; Component Parts Not Serviced Separately

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
