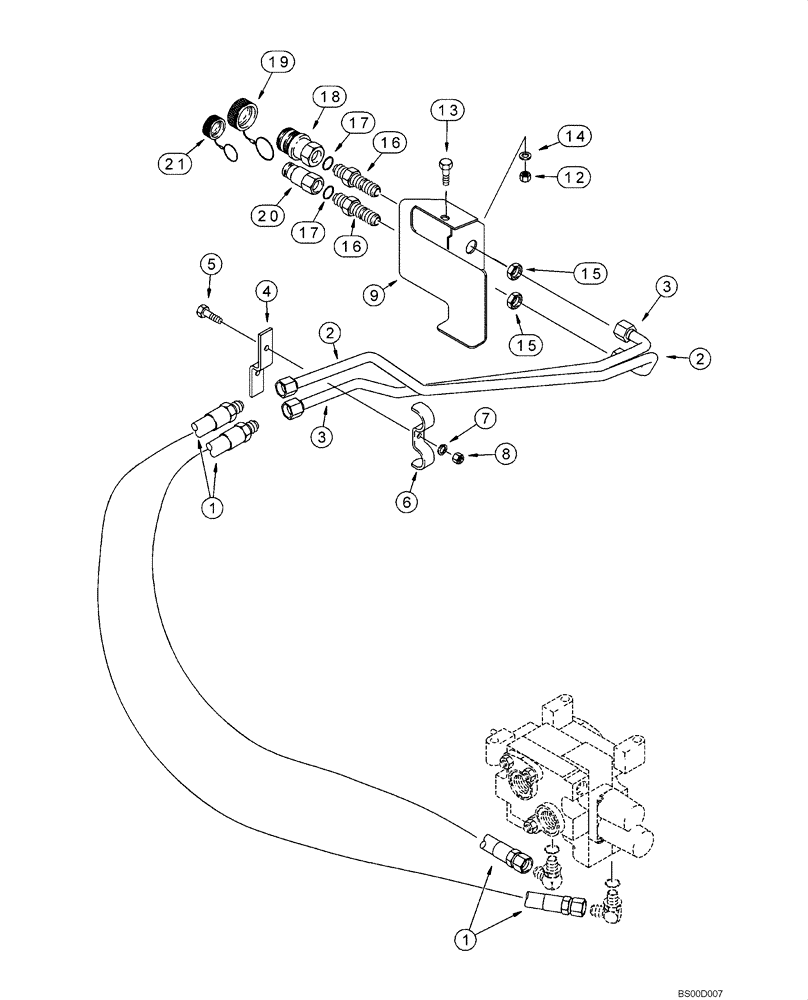

Запчасти Case 580M (08-17) - HYDRAULICS - HAND HELD AUXILIARY (MODELS WITH 40 GALLON FUEL TANK) (08) - HYDRAULICS

REF

INSTRUCTION

Auxiliary Valve To Quick Disconnect Couplings

1шт.

1

302501A1

HOSE

1340 mm (52-13/16 in); For Attaching Parts, See Figure 08-15

2шт.

2

301700A1

HYD TUBE,19.05 mm OD, 986, 61 mm Length

Male Coupling

1шт.

3

301698A1

HYD TUBE,19.05 mm OD, 916, 117 mm Length

Female Coupling

1шт.

4

301355A1

BRACKET

1шт.

5

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

6

D42833

CLAMP

1шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

9

370374A1

BRACKET

1шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

15

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

16

126155A1

FITTING

1-1/16 blkhd fl x OR, Incl. Ref 17

2шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

2шт.

18

122179A1

COUPLING, BREAK AWAY

Quick Disconnect, Female; Component Parts Not Serviced Separately

1шт.

19

137343A1

PLUG

Female Coupling, Aluminum; If Used

1шт.

19

193261A1

PLUG

Female Coupling, Black Rubber; If Used

1шт.

20

122178A2

COUPLING, BREAK AWAY

Quick Disconnect, Male; Component Parts Not Serviced Separately

1шт.

21

137344A1

PLUG

Male Coupling, Aluminum; If Used

1шт.

21

193262A1

PLUG

Male Coupling, Black Rubber; If Used

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.
