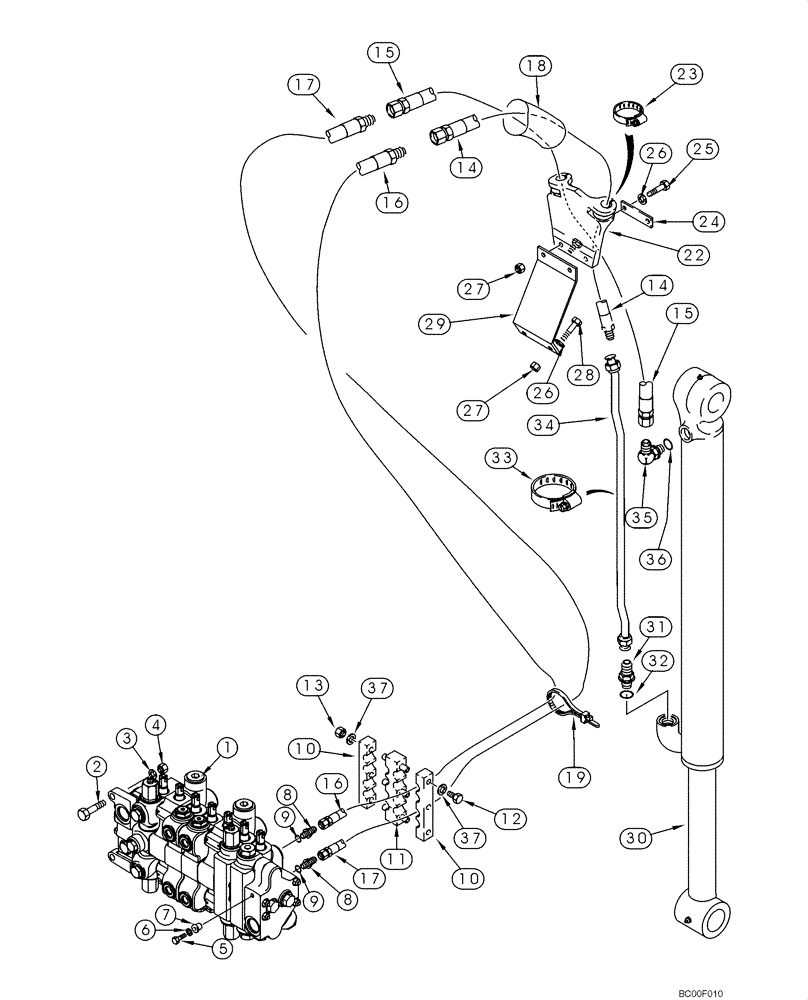

Запчасти Case 580M (08-13) - HYDRAULICS - CYLINDER, BACKHOE BUCKET (MODELS WITH EXTENDABLE DIPPER) (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, Control; Backhoe Control Valve; For Correct Assembly and Components, See Figure(s) 08-33 - 08-36

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

2шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

8

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

10

178951A1

CLAMP

2шт.

11

178952A1

CLAMP

1шт.

12

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

3шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

14

365309A1

HOSE ASSY.,12.7mm ID x 2052mm L

(80-3/4 in)

1шт.

15

143400A1

HOSE,12.7mm ID x 2052mm L

(80-3/4 in)

1шт.

16

393361A1

HOSE ASSY.,12.7mm ID x 3048mm L

(120 in)

1шт.

17

393362A1

HOSE ASSY.,12.7mm ID x 3048mm L

(120 in)

1шт.

18

183322A1

PROTECTOR

2000 mm (78-3/4 in)

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

2-5шт.

22

184297A1

SUPPORT

1шт.

23

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

2шт.

24

101479A1

SUPPORT

1шт.

25

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

28

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

29

183736A1

SUPPORT

1шт.

30

128760A1

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 871.7mm Stroke

83 ID x 872 mm strk; Bucket Cylinder, See Figure 08-58

1шт.

30

128760A1R

REMAN-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

30

128760A1C

CORE-HYD CYLINDER

Bucket Cylinder - For N.A. Only

1шт.

31

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

33

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

34

396339A1

TUBE

Models Without Backhoe Auxiliary Hydraulics

1шт.

34

357470A1

TUBE,15.88 mm OD, 923, 75 mm Length

Models With Backhoe Auxiliary Hydraulics

1шт.

35

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.
