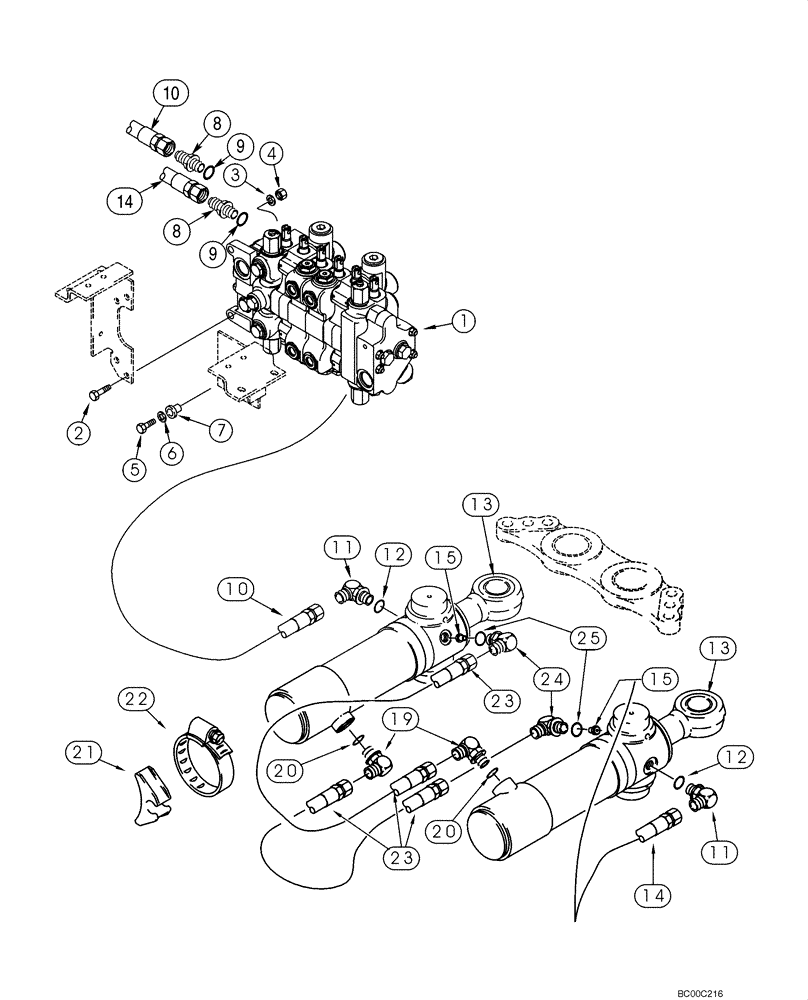

Запчасти Case 580M (08-09) - HYDRAULICS - CYLINDER, BACKHOE SWING (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, Control; Backhoe Control Valve; For Correct Assembly and Components, See Figure(s) 08-33 - 08-36

1шт.

2

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

4

829-1412

NUT,M12, Cl 10.9

2шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

1шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. Ref 9

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

10

396389A1

HOSE ASSY.

650 mm (25-5/8 in), Upper Valve Port, Left-Hand Cylinder

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.

13

188027A2

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 292mm Stroke

95 ID x 292 mm strk; Swing Cylinder, See Figure 08-55

2шт.

188027A2R

REMAN-HYD CYLINDER

580M

2шт.

188027A2C

CORE-HYD CYLINDER

Return Number

1шт.

14

183243A1

HOSE,12.7mm ID x 1400mm L

1400 mm (55-1/8 in), Lower Valve Port, Right-Hand Cylinder

1шт.

15

192971A1

ORIFICE,9.52mm OD x 7.14mm ID, 3.18mm x 6 ID, 3.61mm ID

2шт.

19

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 20

2шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

21

D142787

SPACER

2шт.

22

214-1488

HOSE CLAMP,130.05mm - 152.4mm

2шт.

23

255659A1

HOSE,12.7mm ID x 815mm L

815 mm (32-3/32 in)

2шт.

24

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss seal

1шт.
