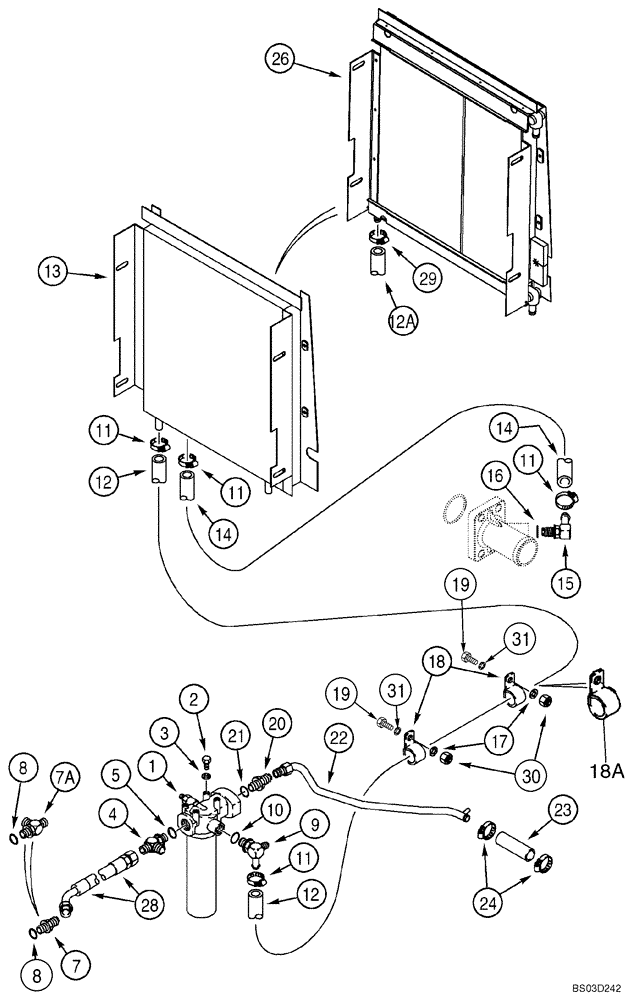

Запчасти Case 580M (08-03) - HYDRAULICS - COOLER, RETURN LINES AND FILTER (08) - HYDRAULICS

1

122536A1

HYDRAULIC OIL FILTER

Hydraulic Oil, See Figure 08-50

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

4

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Loader Valve To Filter and Filter To Backhoe Control Valve, Incl. Ref 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

7

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Backhoe Control Valve Outlet Port; Models Without Extendable Dipper, Incl. Ref 8

1шт.

7a

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Backhoe Control Valve Outlet Port; Models With Extendable Dipper, If Used, Incl. Ref 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

9

301104A1

FITTING,5/8" OD x 7/8" - 14 ORFS x 9/16" - 18 JIC

Special Tee W/Hose Barb, Incl. Ref 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss Seal

1шт.

11

328186A1

HOSE CLAMP,400mm L

4шт.

12

325489A2

HOSE

2100 mm (82-11/16 in), Models Without Air Conditioning

1шт.

12a

301341A1

HOSE

2500 mm (98-7/16 in), With 300 mm Hose Sleeve, Used With (2) Ref. 18 Clamps, If Used; Models With Air Conditioning

1шт.

12a

407635A1

HOSE

2500 mm (98-7/16 in), With 1100 mm Hose Sleeve, Used With (1) Ref. 18 and (1) Ref 18A Hose Clamp, If Used

1шт.

13

320877A1

COOLER, OIL

Models Without Air Conditioning; For Attaching Parts, See Figure 06-10

1шт.

14

301342A2

HOSE

530 mm (20-7/8 in)

1шт.

15

217-342

FITTING,90 Degree Elbow, 5/8" Hose Barb x 9/16" - 18 Male ORB

To Pump Flange, Incl. Ref 16

1шт.

18

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

1-2шт.

18a

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

Used With 407635A1 Hose, If Used

1шт.

19

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

2шт.

20

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

Incl. Ref 21

1шт.

21

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss Seal

1шт.

22

295172A1

TUBE

Return To Tank

1шт.

23

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

89 mm (3-5/8 in), Cut From S118383X, Return To Tank; For Attaching Brake Line Clamp, See Figure 07-04

1шт.

24

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

26

383355A2

OIL COOLER

Heavy Duty, Models With Air Conditioning; For Attaching Parts, See Figure 06-11

1шт.

28

313648A1

HYDRAULIC HOSE,1.0” ID x 910mm L

910 mm (35-27/32"), Return, Backhoe control, Serial Range: valve-filter

1шт.

29

328186A1

HOSE CLAMP,400mm L

2шт.

30

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

31

368417A1

WASHER

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss seal

1шт.
