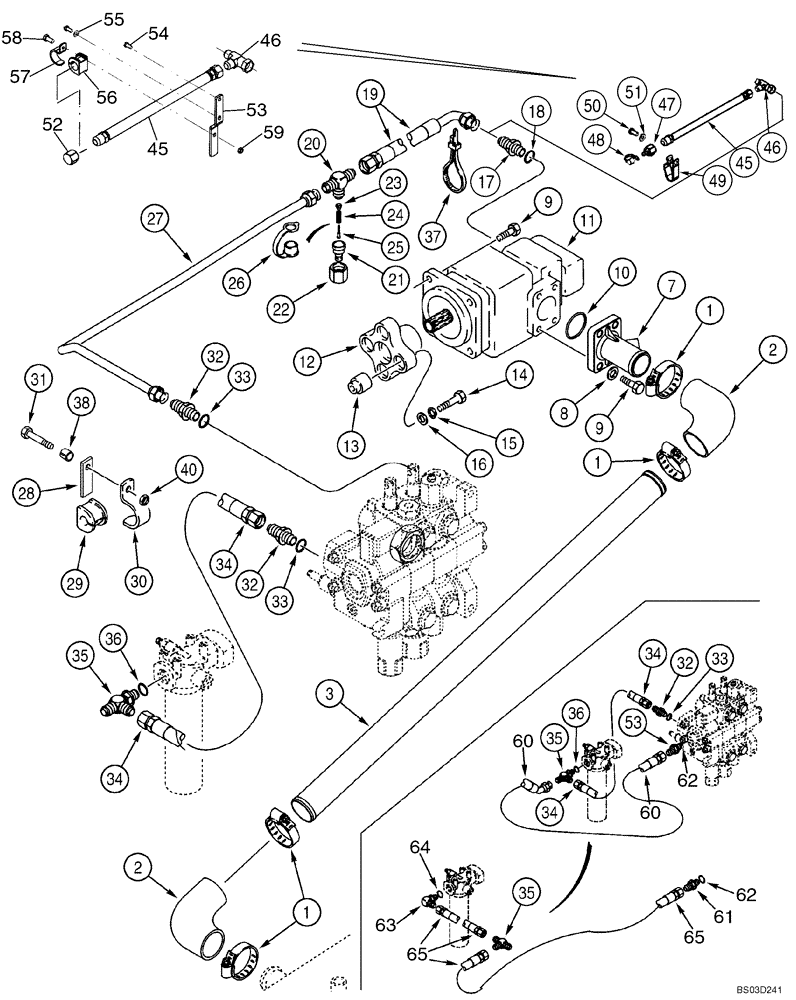

Запчасти Case 580M (08-01) - HYDRAULICS - PUMP, FILTER AND LOADER VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
*
REF
INSTRUCTION
Reservoir To Loader Control Valve and Loader Valve To Filter
1шт.
1
259044A1
CLAMP
4шт.
2
282497A1
HYDRAULIC HOSE,51.00 mm ID x 102.00 mm, SAE 30R7
Suction, at hydraulic tank and pump
2шт.
3
346198A1
TUBE,50.8 mm OD, 950 mm Length
Suction
1шт.
7
308441A1
FLANGE
1шт.
8
895-15012
WASHER,M12 x 28 x 2.5
4шт.
9
614-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd
8шт.
10
238-5228
O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro
1шт.
11
257953A1R
REMAN-HYD PUMP
Hydraulic Equipment, See Figure 08-24
1шт.
11
257953A1C
CORE-HYDRAULIC PUMP
Return Number
1шт.
12
257948A1
FLEXIBLE COUPLING,Flex, 17T
Incl. Ref 12, 13
1шт.
12
NSS
NOT SOLD SEPARAT
Coupling
1шт.
13
N14330
BUSHING,11.38mm ID x 25.15mm OD x 23.11mm L
4шт.
14
413-728
BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5
4шт.
15
492-11044
LOCK WASHER,7/16"
4шт.
16
A30013
WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk
4шт.
17
218-5077
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Incl. Ref 18
1шт.
19
144215A1
HOSE,19.05mm ID x 576mm L
576 mm (22-3/4 in), Large Pump Section Port
1шт.
20
218-587
TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br
Pump Outlet Hose To Loader Valve Inlet Tube
1шт.
21
D137625
QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID
Quick Disconnect Coupling, Incl. Ref 21 - 25
1шт.
21
NSS
NOT SOLD SEPARAT
Housing
1шт.
22
425-1120
NUT,1 1/4"-12, G5
1шт.
23
NSS
NOT SOLD SEPARAT
Seat
1шт.
24
NSS
NOT SOLD SEPARAT
Spring
1шт.
25
NSS
NOT SOLD SEPARAT
Poppet, Valve
1шт.
26
H434163
DUST CAP
1шт.
27
370137A1
TUBE,25.4 mm OD, 845, 524 mm Length
To Loader Valve Inlet, Used Without Loader Hydraulic Tool Quick Coupler; For Tube Clamps Near Loader Valve, See Figure 08-05, Ref 19 - 23
1шт.
28
383925A1
BRACKET
1шт.
29
D67297
BLOCK
1шт.
30
D143410
CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type
1шт.
31
711-10060
CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 60mm, Cl 8.8
1шт.
32
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
At Loader Valve Inlet and Outlet Ports, Incl. Ref 33
2шт.
34
144227A2
HOSE,19.05mm ID x 472mm L
472 mm (18-19/32 in), Loader Valve To Filter, Models Without Ride Control; For Parts Used On Models With Ride Control, See Figure 08-21
1шт.
35
218-5245
TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Loader Valve To Filter and Filter To Backhoe Control Valve, Incl. Ref 36
1шт.
37
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP
1шт.
38
120303A1
SPACER,11mm ID x 15.82mm OD x 15mm Thk
1шт.
40
829-1410
NUT,M10 x 1.5, Cl 10.9
1шт.
*
Cab Models Only
1шт.
45
397309A2
HOSE ASSY.
700 mm, To Hose At Large Pump Section Port
1шт.
46
218-5221
TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run
1шт.
47
D137625
QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID
Quick Disconnect, Component Parts Not Serviced Separately, Incl. 425-1120; If Used
1шт.
425-1120
NUT,1 1/4"-12, G5
1шт.
48
H434163
DUST CAP
If Used
1шт.
49
515-25317
CLAMP,1 1/4", Insul, 1/2" Bolt
If Used
1шт.
50
614-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd
If used
1шт.
51
496-21053
WASHER,17/32" x 1 1/16" x .134"
If Used
1шт.
*
REF
INSTRUCTION
Ref 52 - 65 Used On Loader Only Models
1шт.
52
218-335
CAP,37 Degree, 1 1/16"-12
If Used
1шт.
53
408757A1
BRACKET
If Used
1шт.
54
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
If Used
2шт.
55
892-11008
LOCK WASHER,8mm ID
If Used
1шт.
56
D67298
INSULATOR
If Used
1шт.
57
D68845
MOUNTING CLIP
If Used
1шт.
58
614-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
If Used
1шт.
59
832-10410
NUT,M10 x 1.5, Cl 8
If Used
1шт.
60
144241A1
HOSE,19.05mm ID x 977mm L
977 mm (38-15/32 in), If Used
1шт.
61
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Loader Valve Power Beyond Port, Incl. Ref 54
1шт.
63
218-5110
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
At Filter To Loader Valve Power Beyond Port, If used, Incl. Ref 56
1шт.
65
236116A1
HOSE
430 mm (16-15/16 in), Loader Valve To Filter, If Used
2шт.
Выбрано товаров: 65
