Запчасти Case 580M (02-03A) - RADIATOR ASSY (HEAVY DUTY) (02) - ENGINE

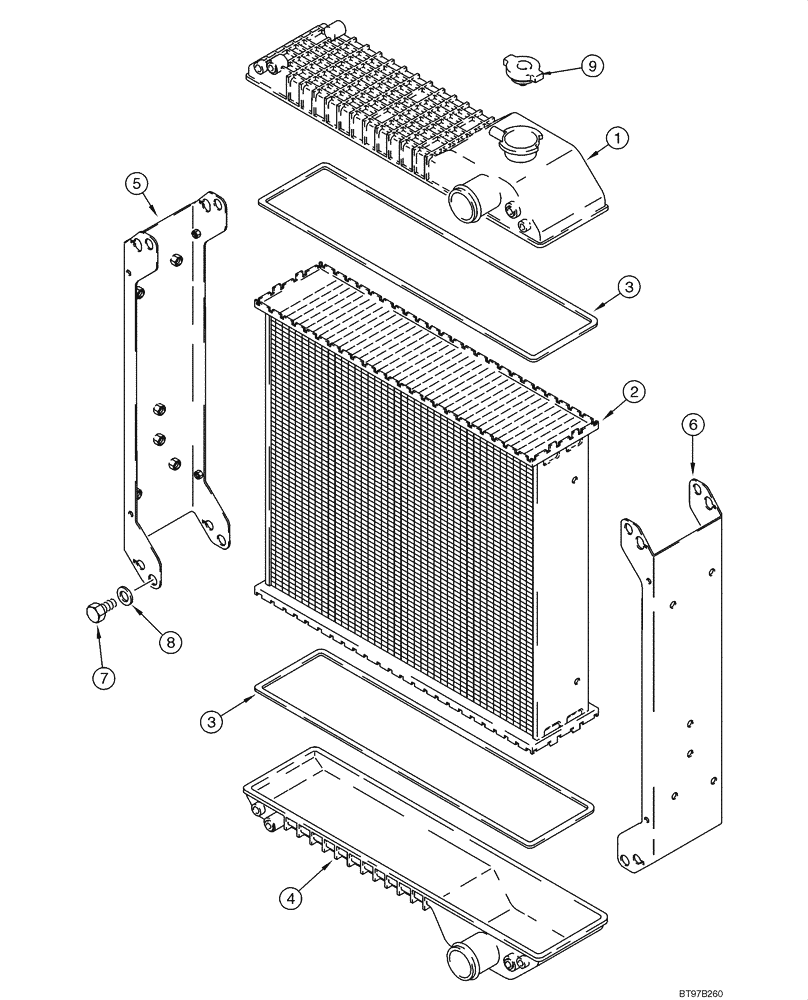

Схема запчастей Case 580M - (02-03A) - RADIATOR ASSY (HEAVY DUTY) (02) - ENGINE
8
3
1
7
9
5
6
2
3
4

Артикул

Название

Примечание

Количество

239739A2

RADIATOR

5 Row, Heavy Duty, Incl. Ref 1 - 11; If Used

1шт.

1

175161A1

TANK

1шт.

2

257434A1

CORE

Core

1шт.

3

175163A1

GASKET,3.3mm Thk

Upper And Lower, Order 226586A1

2шт.

226586A1

PACKAGE,SERVICE

Includes One Gasket, Includes Instructions

2шт.

4

175162A1

RESERVOIR

1шт.

5

175164A1

SUPPORT

Left Hand

1шт.

6

175165A2

SUPPORT

Right Hand

1шт.

7

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

8шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

9

A170241

RADIATOR CAP

15 psi

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, Foam, Side Channel Brackets, Not Illustrated

2шт.

11

NSS

NOT SOLD SEPARAT

Seal, Foam, Corners, Side Channel Brackets, Not Illustrated

4шт.

Выбрано товаров: 13
