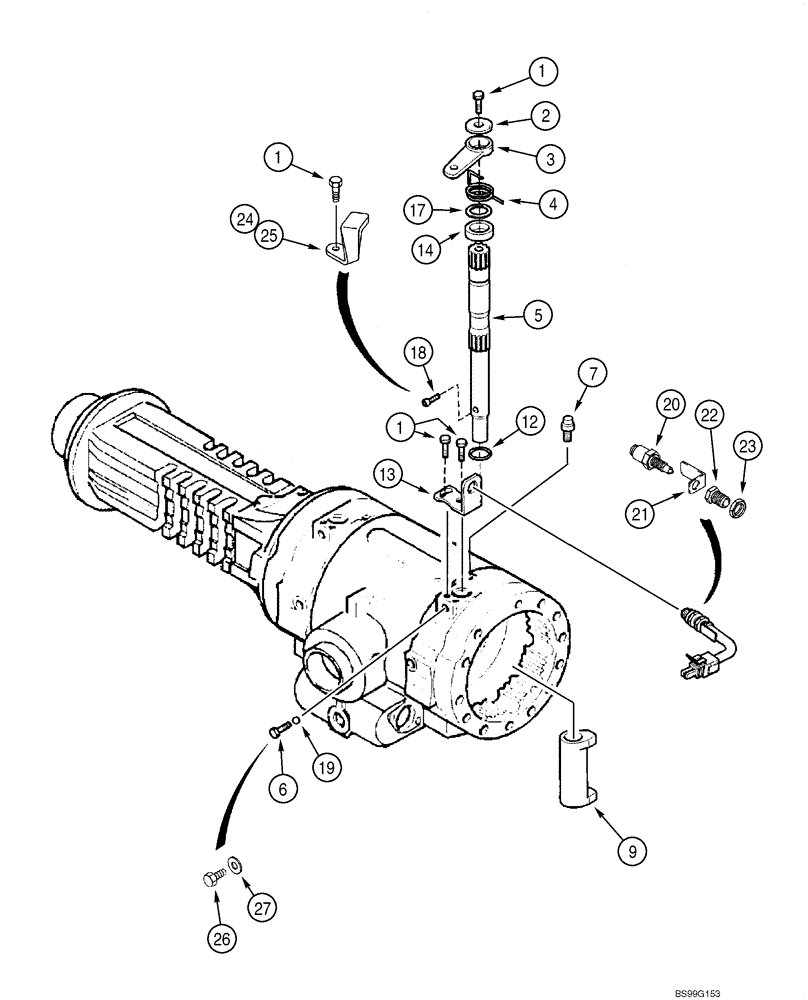

Запчасти Case 580M (07-02) - AXLE, REAR DRIVE - BRAKE, PARKING (07) - BRAKES

384952A1

AXLE, REAR

AXLE REAR Incl. Ref 1 - 27; Also Includes Parts On Figures 06-27 - 06-31, 07-01, 07-02

1шт.

Repair and exchange component available - call Avatar Components, 1-800-453-3544, ext. 122.

1шт.

1

190451A1

LOCK BOLT,M8 x 20mm

M8 x 20

6шт.

2

190463A1

WASHER

2шт.

3

280436A1

LEVER

2шт.

4

190476A2

SPRING

Left-Hand

1шт.

4

190477A2

SPRING

Right-Hand, Not Illustrated

1шт.

5

308040A1

SHAFT

2шт.

6

283462A1

BOLT

M8 x 23.5

2шт.

7

E135810

VENTING SCREW

Brake Bleeder

2шт.

9

196085A1

CAM

2шт.

12

321183A1

O-RING

2шт.

13

256478A1

SUPPORT

Stop Bracket

2шт.

14

256481A1

SPACER

Bushing

2шт.

17

256482A1

SHIM

2шт.

18

256485A1

BOLT

M6 x 16

2шт.

19

283466A1

BALL

2шт.

281952A1

KIT

Switch Kit, Incl. Ref 20 - 23

2шт.

20

280450A1

PARK BRAKE SWITCH

1шт.

21

280452A1

BRACKET

1шт.

22

280457A1

LEVER

Sleeve

1шт.

23

281960A1

NUT

1шт.

279645A1

PACKAGE, REPAIR

Parking Brake, External Adjustment Parts, Includes Instructions, Incl. Ref 1, 12 - 17, 281952A1, 20 - 23, 24 - 27; If Used

1шт.

24

259254A1

RETAINER

Left-Hand

1шт.

25

280443A1

RETAINER

Right-Hand

1шт.

26

514-634

BOLT,Hex, M8 x 1 x 16mm, Cl 8.8, Full Thd

M8 x 16

2шт.

27

181104A1

COPPER WASHER

Copper

2шт.
