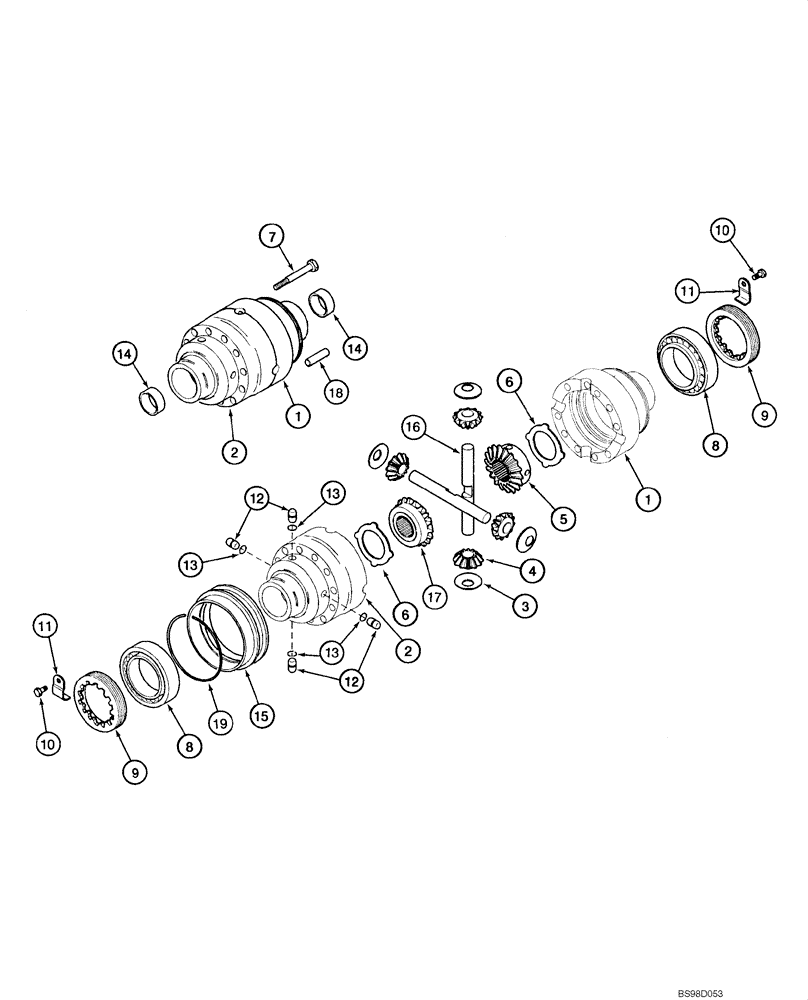

Запчасти Case 580M (06-28A) - AXLE, REAR DRIVE - DIFFERENTIAL (384952A1 AXLE / USING 294192A1 4 SPIDER DIFFERENTIAL KIT) (06) - POWER TRAIN

384952A1

AXLE, REAR

AXLE REAR Incl. Ref 1 - 19; Using 294192A1 Four Spider Differential; Also Includes Parts On Figures 06-27 - 06-31, 07-01, 07-02; Four Spider Differential; If Used

1шт.

Repair and exchange component available - call Avatar Components, 1-800-453-3544, ext. 122.

1шт.

292268A1

HOUSING

Differential, Incl. Ref 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Flange Half

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Plain Half

1шт.

294192A1

SET

Differential Gear Set, 4 Spider, Service Replacement, Incl. Ref 3 - 6, 16, 17

1шт.

3

NSS

NOT SOLD SEPARAT

Thrust, Spherical

4шт.

4

NSS

NOT SOLD SEPARAT

Sun Gear, 12T, No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 294192A1 Gear Set Kit

4шт.

5

NSS

NOT SOLD SEPARAT

Side Pinion Gear, No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 294192A1 Gear Set Kit

1шт.

6

NSS

NOT SOLD SEPARAT

Washer, Thrust

2шт.

7

S300976

BOLT,M12 x 1.5 x 90mm

M12 x 90; 12.9

10шт.

8

E135785

BEARING

2шт.

9

P3034505

NUT

Lock Ring

2шт.

10

112486A1

BOLT,Hex, M6 x 12

2шт.

11

175959A1

BRACKET

Bracket

2шт.

12

292207A1

PIN

4шт.

13

292208A1

O-RING

4шт.

14

190452A1

BUSHING

2шт.

15

191067A1

SLEEVE

1шт.

294192A1

SET

Differential Gear Set, Service Replacement, Incl. Ref 3 - 6, 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Shaft, No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 294192A1 Gear Set Kit

2шт.

17

NSS

NOT SOLD SEPARAT

Side Pinion Gear, No Longer Sold Separately, Must Be Replaced As a Set, For Service, Order 294192A1 Gear Set Kit

1шт.

18

D143033

DOWEL

12 x 40 mm

2шт.

19

175961A1

RING, LOCKING

RING, LOCK

1шт.
