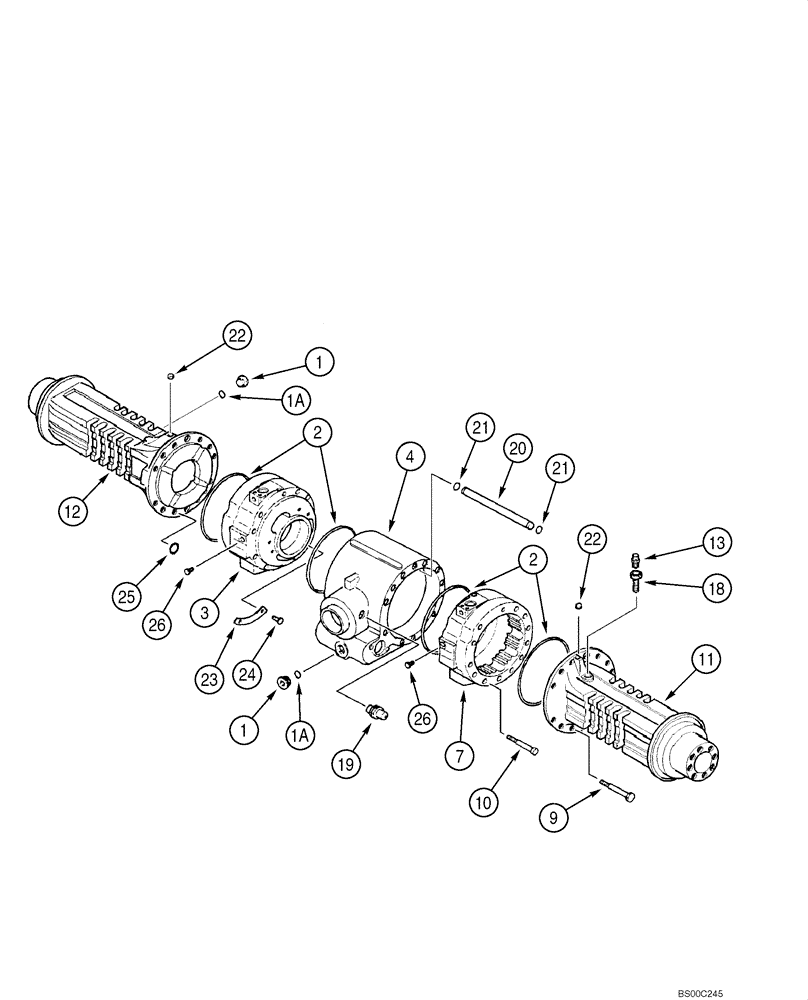

Запчасти Case 580M (06-27) - AXLE, REAR DRIVE - HOUSING (06) - POWER TRAIN

384952A1

AXLE, REAR

AXLE REAR Incl. Ref 1 - 26; Also Includes Parts On Figure(s) 06-27 - 06-31, 07-01, 07-02

1шт.

Repair and exchange component available - call Avatar Components, 1-800-453-3544, ext. 122.

1шт.

87350707

REMAN-AXLE

Remanufactured, North America Only; Parts On This Page Do Not Apply to Remanufactured Assy

1шт.

87350708

CORE-AXLE

Return Number, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy

1шт.

1

100557A1

PLUG, DRAIN,M30 x 2

Incl. Ref 1A

2шт.

1a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

2

238-5270

O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro

1-1/16 ID x 3/32

4шт.

3

445266A1

FLANGE

Brake Cylinder, Right-Hand

1шт.

4

367175A1

HUB

Center Housing

1шт.

7

445267A1

FLANGE

Brake Cylinder, Left-Hand

1шт.

9

814-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 8.8

22шт.

10

864-12130

HEX SOC SCREW,M12 x 130mm, Cl 8.8

M12 x 130

2шт.

11

358280A1

HUB

Left-Hand, With Breather Port

1шт.

12

358279A1

HUB

Right-Hand, Without Breather Port

1шт.

13

1966149C2

BREATHER

1шт.

18

E135750

AXLE PIN

Breather Extension

1шт.

19

393826A1

TEMPERATURE SENDER,3/6" - 16

Oil Temperature, Includes 237-8008

1шт.

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

20

346584A1

TUBE

Internal

1шт.

21

346583A1

O-RING

2шт.

22

D142898

PLUG,M10 x 1

10 x 1 mm, If Used

2шт.

23

347959A1

PLATE

2шт.

24

347960A1

RIVET

4,8 x 6 mm

4шт.

25

P2230493

SEAL

8шт.

26

294245A1

CAP

7/16, If Used

2шт.
