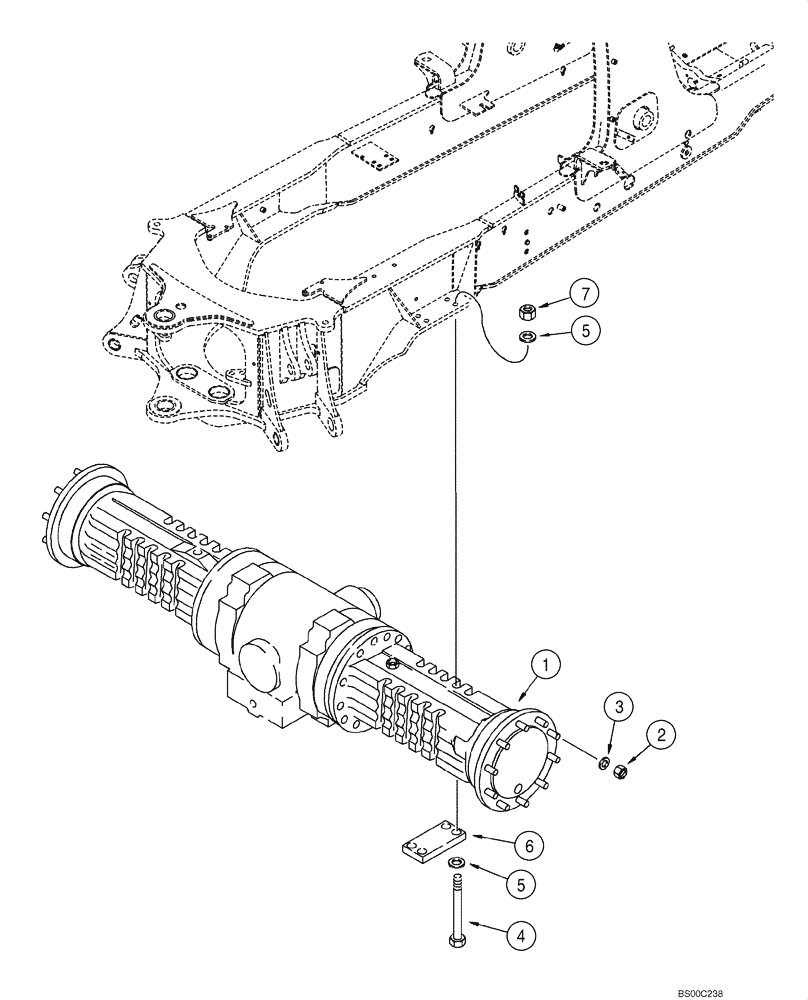

Запчасти Case 580M (06-25) - AXLE, REAR DRIVE - MOUNTING (06) - POWER TRAIN

1

384952A1

AXLE, REAR

AXLE REAR See Figure(s) 06-27 - 06-31, 07-01, 07-02

1шт.

Repair and exchange component available - call Avatar Components, 1-800-453-3544, ext. 122.

1шт.

87350707

REMAN-AXLE

Remanufactured, North America Only; Parts On This Page Do Not Apply to Remanufactured Assy

1шт.

87350708

CORE-AXLE

Return Number, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy

1шт.

2

D138492

NUT,M22 X 1.5 - 6 HVY HEX

22 mm

20шт.

3

D138380

WASHER,22.8mm ID x 44.5mm OD x 5.56mm Thk

20шт.

4

827-20230

BOLT,Hex, M20 x 2.5 x 230mm, Cl 10.9

8шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm, Hardened

16шт.

6

117933A1

LARGE PLATE

PLATE, LARGE

2шт.

7

829-1420

NUT,M20, Cl 10

8шт.
