Запчасти Case 580M (02-02) - RADIATOR - MOUNTING (WITH / WITHOUT AIR CONDITIONING) (02) - ENGINE

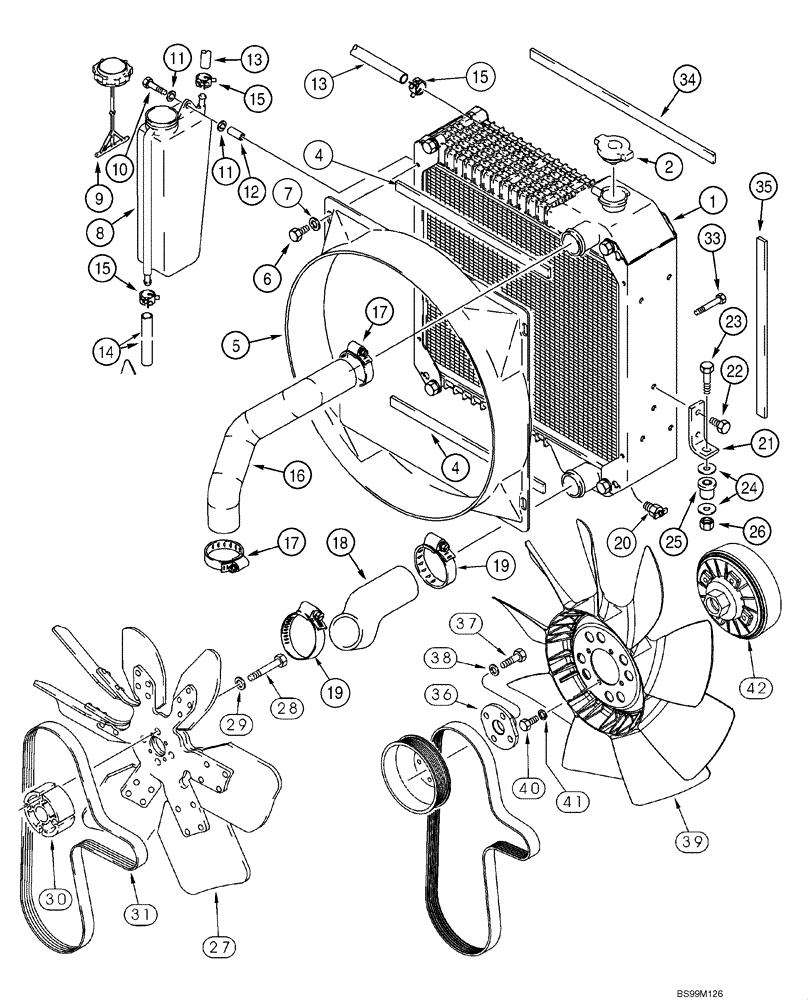

Схема запчастей Case 580M - (02-02) - RADIATOR - MOUNTING (WITH / WITHOUT AIR CONDITIONING) (02) - ENGINE
41
11
9
4
39
15
11
29
27
16
13
25
24
14
19
22
8
1
12
28
34
4
23
31
33
38
19
36
17
26
21
2
42
35
15
7
30
17
15
40
13
37
20
5
6
10
18

Артикул

Название

Примечание

Количество

1

239739A2

RADIATOR

Heavy Duty, See Figure 02-03A, Includes Ref 2; Used With 383355A2 Heavy Duty Oil Cooler; For Cooler and Baffles, See Figure 06-10, 06-11

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

4

233272A1

SEALING STRIP,20mm W x 404mm L x 6mm Thk

20 x 404 x 6 mm, Adhesive Back, Radiator to Shroud, Upper And Lower

2шт.

5

186433A1

SHROUD

1шт.

6

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

4шт.

8

131084A1

RESERVOIR

Incl. Ref 9

1шт.

9

1547924C1

CAP

1шт.

10

806-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

12

132215A1

SPACER

2шт.

13

132218A1

HOSE

591 mm (23-1/4 in), Coolant Recovery, Cut From L126767

1шт.

14

132217A1

HOSE

125 mm (4-15/16 in), Coolant Overflow

1шт.

15

A171099

HOSE CLAMP,13.2mm - 15.4mm

3шт.

16

232366A1

RADIATOR HOSE,45.00 mm ID x 265.00 mm, SAE 20R4, SAE J20

Upper

1шт.

17

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

2шт.

18

141513A1

RADIATOR HOSE,58.00 mm ID x 212.00, SAE 20 R4

Lower

1шт.

19

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2шт.

20

217-92

COCK

1/4, Drain

1шт.

21

121501A2

SUPPORT

Lower, For Upper Bracket, See Figure 09-38

2шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

23

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

2шт.

24

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

4шт.

25

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

Rubber

2шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

27

127181A2

FAN

With Orange Identification Dot; Models Without Turbocharged Engine, Engine No. 394285A1; Replaces 127181A1

1шт.

27

228133A2

FAN,7 Blades, 20 OD, CW Rotation

39 Degree, With White Identification Dot, Models With Turbocharged Engine, Engine No. 380457A1; Models Without Turbocharged Engine, Engine No. 400029A1; Replaces 228133A1

1шт.

28

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

4шт.

29

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

30

A184545

SPACER

43 mm

1шт.

31

J925953

BELT,27.92 mm W x 1490.00 mm L, 8 Ribs

Alternator and Fan

1шт.

31

J911573

V-BELT,27.92mm W x 1562.1mm L, 8 Ribs

Models Without Turbocharged Engine, Engine No. 400029A1

1шт.

33

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

34

235040A2

SEALING STRIP,20mm W x 542mm L x 6mm Thk

20 x 542 x 6 mm, Adhesive Back, Horizontal, Radiator to Oil Cooler

2шт.

35

235038A2

RUBBER SEAL,20mm W x 490mm L x 8mm Thk

20 x 490 x 8 mm, Adhesive Back, Vertical, Radiator to Oil Cooler

2шт.

36

303192A1

ADAPTER

Fan Drive, Models With Viscous Drive

1шт.

37

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

38

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

39

277800A1

FAN,9 Blades, 500.1mm OD

9 Blade, Models With Viscous Drive, Models With Turbocharged Engine, Engine No. 398155A1

1шт.

40

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

41

892-11008

LOCK WASHER,8mm ID

4шт.

42

303195A1

ASSEMBLY

Fan Drive Assembly, Component Parts Not Serviced Separately, Models With Viscous Drive

1шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

Выбрано товаров: 42
