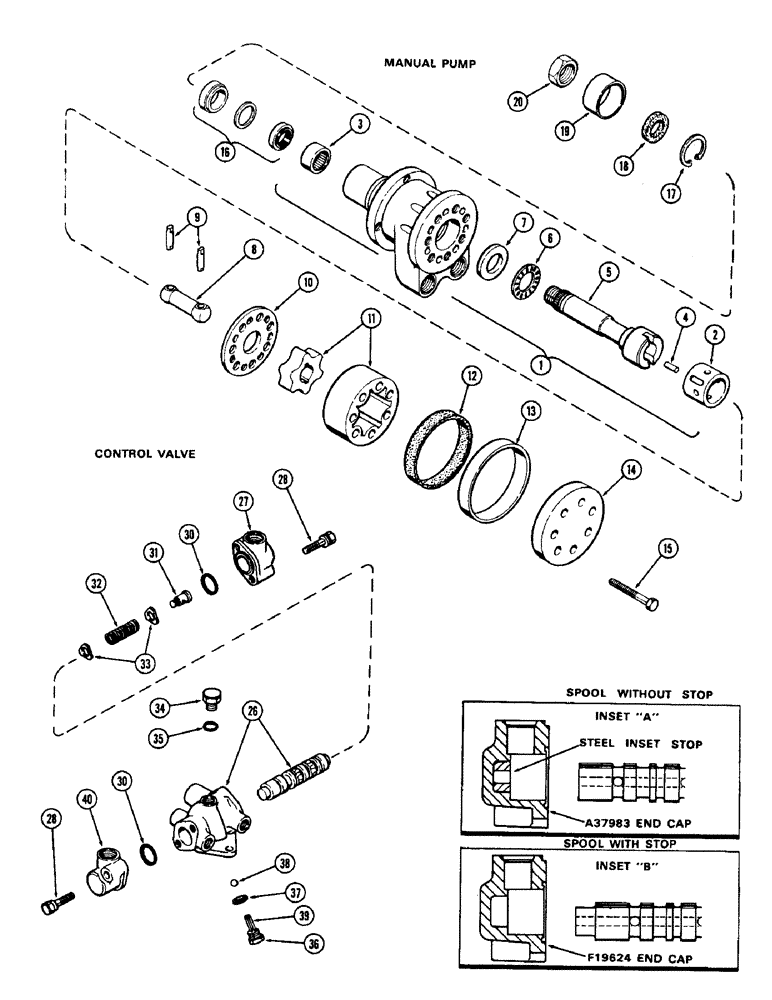

Запчасти Case 480CK (118) - A35579 MANUAL PUMP, HYDROSTATIC STEERING

A35579

PUMP

ASSY. - manual, Includes: Ref. 1 - 20

1шт.

1

F82945

BODY

ASSY. - pump, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

COMMUTATOR (Order F82945)

1шт.

3

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - needle

1шт.

4

F19631

PIN

- commutator

1шт.

5

A40735

SHAFT

- coupling

1шт.

6

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - needle, thrust

1шт.

7

F19634

BEARING WASHER

RACE - thrust bearing

1шт.

8

F19635

LINK

- rotor drive

1шт.

9

F19636

PIN

- link

2шт.

10

A42206

SPACER

- rotor

1шт.

11

A35786

STATOR

ROTOR SET - pump

1шт.

12

84286702

RUBBER SEAL

- rotor

1шт.

13

A35787

RETAINER

- rotor seal

1шт.

14

F19641

COVER - end

1шт.

15

F19642

BOLT - end cover (5/16 x 1-3/4" N.C. hex.)

7шт.

16

A40624

SEAL

KIT - pump

1шт.

17

A21145

SNAP RING,1.25, Int, #125

RING - snap, 1.25", Int, #125, thrust washer

1шт.

18

F19645

BUSHING

SEAL - dust, felt

1шт.

19

A42057

SEAL

RETAINER - dust seal

1шт.

20

F19646

LOCK NUT,13/16"-20, Thin

NUT - coupling shaft

1шт.

A37980

VALVE

ASSY. - control, complete, Includes: Ref. 26 - 40

1шт.

26

NSS

NOT SOLD SEPARAT

BODY & SPOOL (Order A37980) control valve

1шт.

27

F19624

CAP

- end (See ref. #40), A37980 control valve

1шт.

28

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - end cap (3/8 x 2" N.C. hex.), A37980 control valve

4шт.

30

F21003

O-RING,1.237" ID x 1.443" OD

"O" RING - end cap, A37980 control valve

2шт.

31

F19623

SCREW,3/8" - 24 x 15/16"

- centering, A37980 control valve

1шт.

32

F19622

VALVE SPRING

SPRING - centering, A37980 control valve

1шт.

33

F19619

WASHER

- spring retainer, A37980 control valve

2шт.

34

A83122

PLUG ASSY. - top, valve body, A37980 control valve, Includes: Ref. 35

1шт.

35

F19628

O-RING

"O" RING - plug, A37980 control valve

1шт.

36

F82943

VALVE

PLUG ASSY. - relief valve, A37980 control, Includes: Ref. 37 - 39

1шт.

37

F19630

O-RING

"O" RING - relief plug, A37980 control valve

1шт.

38

211-7

BALL,1/4" Dia

- relief valve, A37980 control 1/4" Dia

1шт.

39

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , A37980 control valve 1/8" x 15/16", Slotted

1шт.

40

F19624

CAP

- end (w/o stop), A37980 control valve

1шт.

A37983 end cap with stop must be used when valve spool does not have stop as shown in inset "A". F19624 end cap must be used when valve spool does not have built in stop as shown in inset "B".

1шт.

40

A37983

CAP

- end (w/stop), A37980 control valve

1шт.

A37983 end cap with stop must be used when valve spool does not have stop as shown in inset "A". F19624 end cap must be used when valve spool does not have built in stop as shown in inset "B".

1шт.
