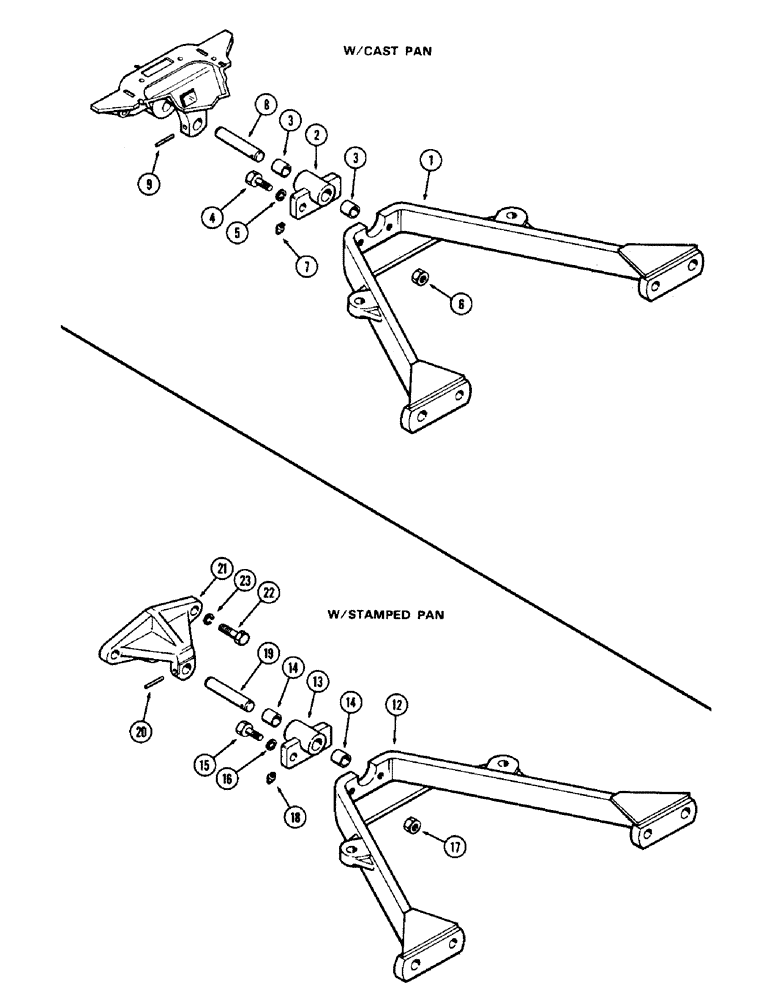

Запчасти Case 480CK (113A) - FRONT AXLE RADIUS ROD AND PIVOT, WITH CAST OIL PAN

1

A36283

ROD

RADIUS ROD - front axle

1шт.

2

A38199

PIVOT

ASSY. - rear, radius rod, Includes: Ref. 3

1шт.

3

A29944

BUSHING

- pivot

1шт.

4

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

25-1010

NUT,5/8"-11, G5

2шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. x 45 degrees

1шт.

8

A29725

PIN

- rear pivot

1шт.

9

138-2039

PIN,1/4" x 2", Coiled

1шт.

12

A36283

ROD

RADIUS ROD - front axle, with stamped oil pan

1шт.

13

A38199

PIVOT

ASSY. - rear, radius rod (Replaces A36574), with stamped oil pan, Includes: Ref. 14

1шт.

14

A29944

BUSHING

- pivot, with stamped oil pan

2шт.

15

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

with stamped oil pan Hex, 5/8"-11 x 2 1/4", G5

2шт.

16

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , with stamped oil pan 5/8"

2шт.

17

25-1010

NUT,5/8"-11, G5

w/ stamped oil pan 5/8"-11, G5

2шт.

18

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. x 45 degrees, with stamped oil pan

1шт.

19

A29725

PIN

- rear pivot, with stamped oil pan

1шт.

20

138-2039

PIN,1/4" x 2", Coiled

with stamped oil pan 1/4" x 2", Coiled

1шт.

21

A35599

BRACKET

SUPPORT - rear pivot, with stamped oil pan

1шт.

22

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

with stamped oil pan Hex, 5/8"-11 x 2", G5

2шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , with stamped oil pan 5/8"

2шт.
