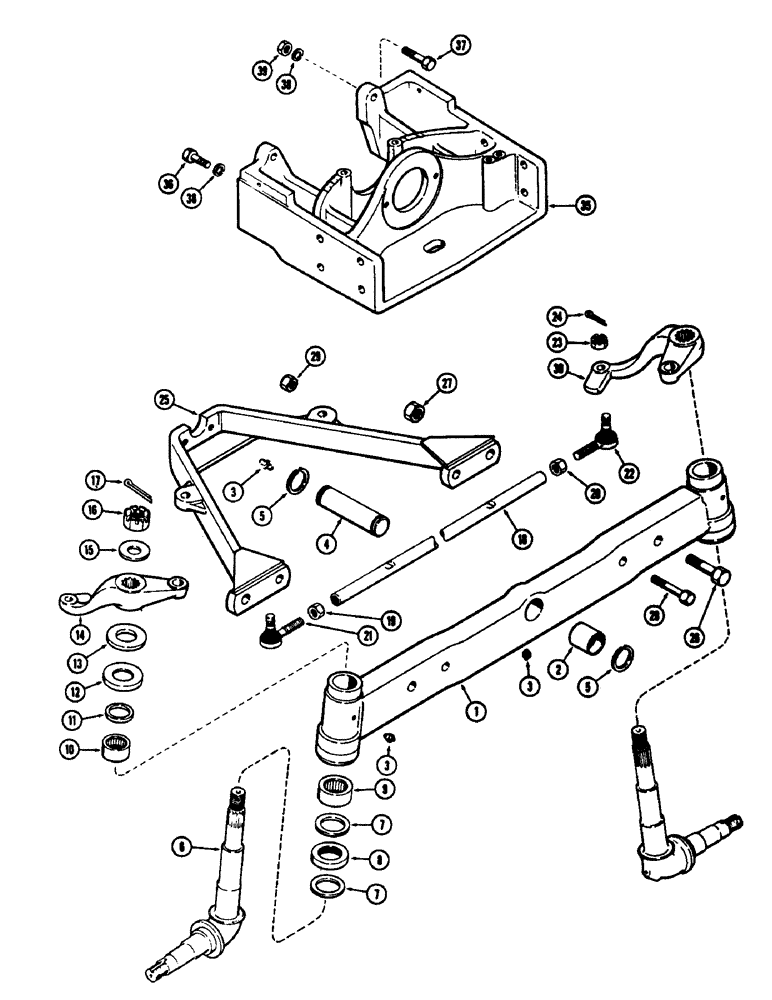

Запчасти Case 480CK (112) - FRONT AXLE

1

A38382

AXLE, FRONT

AXLE ASSY. - front (w/2 grease fitting holes) (Used w/A38384 pin), Includes: Ref. 2, Start Serial: 8358563

1шт.

1

A36280

X

AXLE ASSY. - front (w/3 grease fitting holes) (Used w/A35975 pin) (Order A38382 axle and A38384 pin), Includes: Ref. 2, Serial Range: -8358563

1шт.

2

A36282

BUSHING,44.3mm ID x 56.21mm OD x 50.8mm L

- pivot

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

3шт.

4

A38384

PIN,44.09mm OD x 168.4mm L

- pivot, front (w/grease fitting hole) (Must be used w/A38382 axle), Start Serial: 8358563

1шт.

4

A35975

X

PIN - pivot, front (w/out grease fitting hole) (Used w/A36280 axle) (Order A38384), Serial Range: -8358563

1шт.

5

A27085

RING

- snap, pivot pin

2шт.

6

A57248

SPINDLE

- wheel, R.H. & L.H. (Replaces A36535)

2шт.

7

A36565

WASHER,51.2mm ID x 66.67mm OD x 6.35mm Thk

- thrust, spindle

4шт.

8

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - thrust, wheel spindle (2 x 2-15/16 x 5/8")

2шт.

9

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - lower, spindle (2 x 2-3/8 x 1")

2шт.

10

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - upper, spindle (1-3/4 x 2-1/8 x 1")

2шт.

11

A27754

OIL SEAL

- oil, upper spindle (1-3/4 x 2-1/8 x 3/16")

2шт.

12

A35344

SHIELD

- dust, spindle bearing

2шт.

13

A35345

SHIM,.0359" Thk

Wheel spindle (#20 gauge) .0359" Thk

1шт.

13

A35346

SHIM,.0598" Thk

Wheel spindle (16 gauge) .0598" Thk

1шт.

13

A35861

SHIM,.0149" Thk

Wheel spindle (28 gauge) .0149" Thk

1шт.

14

A37926

ARM

- steering, R.H.

1шт.

15

A35047

WASHER

- spindle nut

2шт.

16

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - slotted, 1-1/8" N.F.

2шт.

17

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

18

A35567

TUBE

- tie rod

1шт.

19

G49084

JAM NUT

- lock, R.H. tie rod end (11/16-23 R.H. thread)

1шт.

20

G49085

JAM NUT

- lock, L.H. tie rod end (11/16-23 L.H. thread)

1шт.

21

G45368

END ASSY.

END - R.H., tie rod

1шт.

22

G45369

END ASSY.

END - L.H., tie rod

1шт.

23

25-139

SLOTTED NUT,9/16"-18, G5

NUT - tie rod end (9/16" N.F. slotted)

2шт.

24

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

25

A36283

ROD

RADIUS ROD - front axle (See Figure 113A)

1шт.

26

13-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

27

25-1616

NUT,1"-8, G5, Hvy

- 1" N.C. hex.

2шт.

28

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

29

25-1012

NUT,3/4"-10, G5

2шт.

30

A37927

ARM

- steering, L.H.

1шт.

35

A38302

SUPPORT - front axle & radiator, Start Serial: 8343245

1шт.

35

A36895

SUPPORT

- front axle & radiator (Order A38302 & 2-A38303 bolts), Serial Range: -8343245

1шт.

36

113-633

SCREW

BOLT - lower, 5/8 x 2-1/4" N.C. hex (Gr. 8)

2шт.

37

A38303

BOLT

BOLT - upper (5/8 x 3-13/64" N.F. hex.) (Use with A38302 support)

2шт.

37

113-651

BOLT

- 5/8 x 3" N.C. hex. hd. (Gr. 8) (Use with A36895 support)

2шт.

38

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

4шт.

39

25-1610

NUT,5/8"-11, G5, Hvy

- 5/8" N.C. hex.

2шт.
