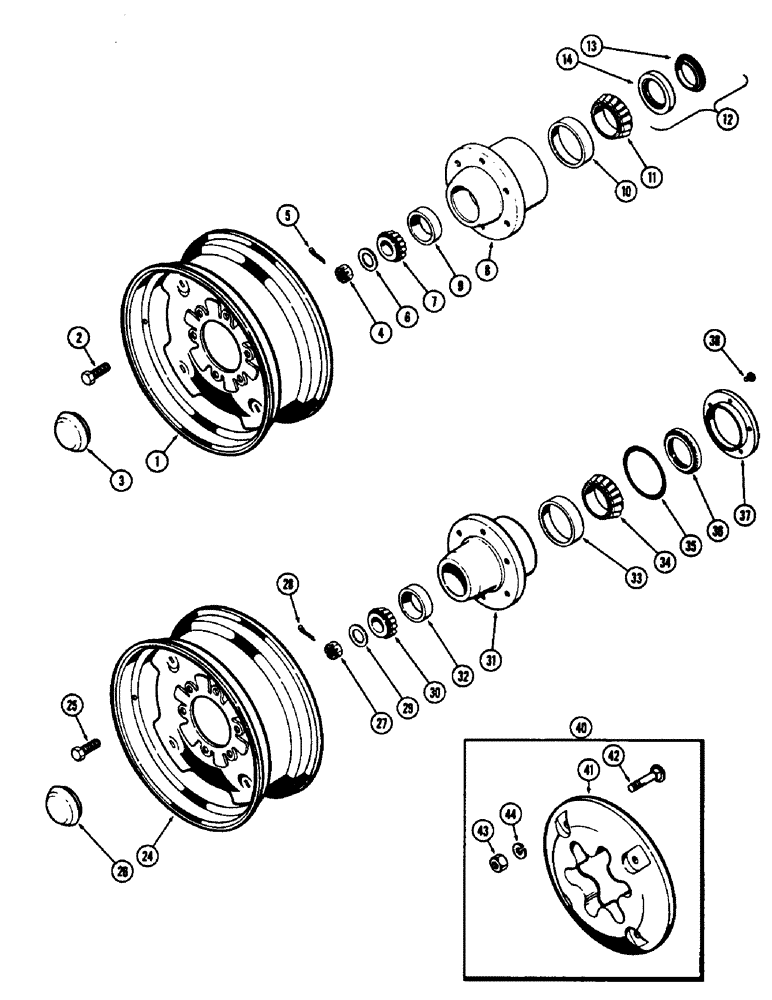

Запчасти Case 480CK (110) - FRONT WHEELS AND WEIGHTS, FIRST USED TRACTOR SERIAL NUMBER 8319561

1

A38404

RIM

WHEEL - front (6.50 or 7.50 x 16 tire)

2шт.

2

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16" N.F. x 1-5/32")

2шт.

3

A29425

CAP

- hub

2шт.

4

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hub to spindle (1-1/8" N.F. slotted)

2шт.

5

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

6

A26789

BEARING WASHER

WASHER - hub nut

2шт.

7

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing

2шт.

8

A57336

HUB

ASSY. - front wheel, Includes: Ref. 9 and 10

2шт.

9

A27631

CUP

- outer bearing

1шт.

10

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing

1шт.

11

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing

2шт.

12

A57250

OIL SEAL

KIT - front wheel seal, Includes: Ref. 13 and 14

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL - inner half

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - outer half

1шт.

24

A38404

RIM

WHEEL - front (6.50 or 7.50 x 16 tire) (Replaces A36017), Serial Range: -8319561

2шт.

25

B18264

WHEEL BOLT

BOLT - wheel to hub, 9/16" N.F. x 15/32" (Used w/A38187 hub), Serial Range: -8319561

12шт.

25

A30064

BOLT

- wheel to hub, 1/2" N.F. x 7/8" (Used w/G14042 hub), Serial Range: -8319561

12шт.

26

A29425

CAP

- hub, Serial Range: -8319561

2шт.

27

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hub to spindle, 1-1/8" N.F. slotted, Serial Range: -8319561

2шт.

28

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4", Serial Range: -8319561

2шт.

29

A26789

BEARING WASHER

WASHER - hub nut, Serial Range: -8319561

2шт.

30

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing, Serial Range: -8319561

2шт.

31

A38187

HUB

ASSY. (For 9/16" bolts) , Includes: Ref. 32 and 33, Serial Range: -8319561

2шт.

31

G14042

X

HUB ASSY. (Order A38187 & B18264) (For 1/2" bolts) , Includes: Ref. 32 and 33, Serial Range: -8319561

2шт.

32

A27631

CUP

- outer bearing, Serial Range: -8319561

1шт.

33

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - inner bearing, Serial Range: -8319561

1шт.

34

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - inner bearing, Serial Range: -8319561

2шт.

35

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - wheel hub (3-1/4 x 3-1/2 x 1/8"), Serial Range: -8319561

2шт.

36

A27139

SEAL

- oil, wheel hub (2-15/32 x 3-7/32 x 1/2"), Serial Range: -8319561

2шт.

37

A27140

RETAINER

- oil seal, Serial Range: -8319561

2шт.

38

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- 1/4 x 5/8" N.C. flat hd., Serial Range: -8319561

10шт.

40

G12050M

WEIGHT ATTACHMENT - front wheel (Mach. item), Includes: Ref. 41 - 44, Serial Range: -8319561

1шт.

41

NSS

NOT SOLD SEPARAT

WEIGHT - wheel, Serial Range: -8319561

2шт.

42

11-848

BOLT - 1/2 x 3" N.C. carr., Serial Range: -8319561

8шт.

43

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex, Serial Range: -8319561

8шт.

44

92-8

LOCK WASHER,1/2"

, Serial Range: -8319561

8шт.
