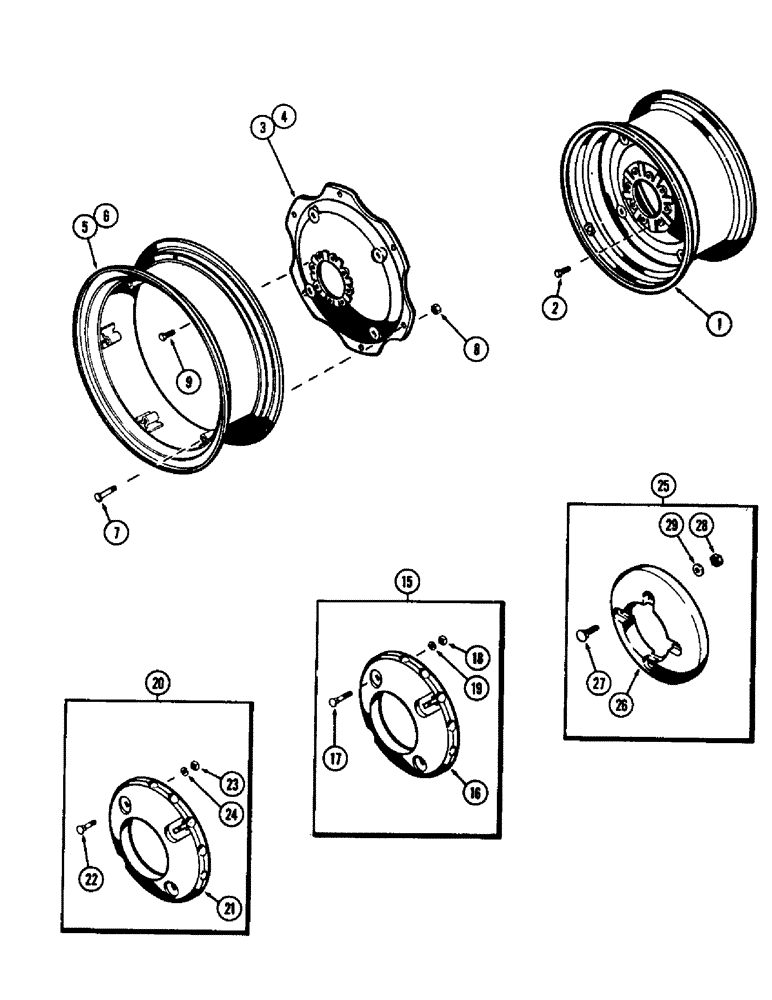

Запчасти Case 480CK (108) - REAR WHEEL AND WEIGHTS

1

A38403

RIM

WHEEL - rear, integral (Takes 14.9/13 or 16.9 x 24 tire) (Used w/ backhoe) (Replaces A35578)

2шт.

1

G45188

RIM

WHEEL - rear, integal (Takes 14.9/13 or 16.9 x 24 tire)

2шт.

2

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to shaft (5/8 x 1" N.F. spec.), Start Serial: 8325289

16шт.

2

B18264

WHEEL BOLT

BOLT - wheel to shaft (9/16 x 1-5/32" N.F. spec.), Serial Range: -8325289

16шт.

3

G46240

DISC

- wheel, 24" demountable rim

2шт.

4

G12001

DISC

- wheel, 28" demountable rim

2шт.

5

G45205

RIM

- demountable (Takes 12.4/11 or 13.6/12 x 24 tire)

2шт.

6

A38637

RIM

- demountable (16.9 x 28 tire)

2шт.

6

G45710

RIM

- demountable (14.9 x 28 tire)

2шт.

7

G10701

BOLT

- rim (5/8 x 2-11/16" spec.)

12шт.

8

129-565

SPECIAL NUT,5/8"-18, G5

- rim bolt (5/8" N.F. hex.)

12шт.

9

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to shaft (5/8 x 1-1/2" N.F. special), Start Serial: 8325289

16шт.

9

B18264

WHEEL BOLT

BOLT - wheel to shaft, (9/16 x 1-5/32" spec.), Serial Range: -8325289

16шт.

15

G12609M

WEIGHT ATT. - 24" wheel (1st set) (Mach. item), Includes: Ref. 16 - 19

1шт.

16

NSS

NOT SOLD SEPARAT

WEIGHT (78" lbs. ea.)

2шт.

17

11-1036

BOLT (MACHINE)

BOLT - 5/8 x 2-1/4" rd. hd. sq. nk.

4шт.

18

25-1010

NUT,5/8"-11, G5

4шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

20

G12610M

WEIGHT ATT. - 24" wheel (Added set) (Mach. item), Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

WEIGHT (78 lbs. ea.)

2шт.

22

11-1052

BOLT (MACHINE)

BOLT - 5/8 x 3-1/4" rd. hd. sq. nk.

4шт.

23

25-1010

NUT,5/8"-11, G5

4шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25

G12018

WEIGHT ATT. - 28" wheel (Mach. item), Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

WEIGHT (73 lbs. ea.)

2шт.

27

11-1052

BOLT (MACHINE)

BOLT - 5/8 x 3-1/4" N.C. rd. hd. sq. nk.

4шт.

28

25-1010

NUT,5/8"-11, G5

4шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
