Артикул
Название
Примечание
Количество

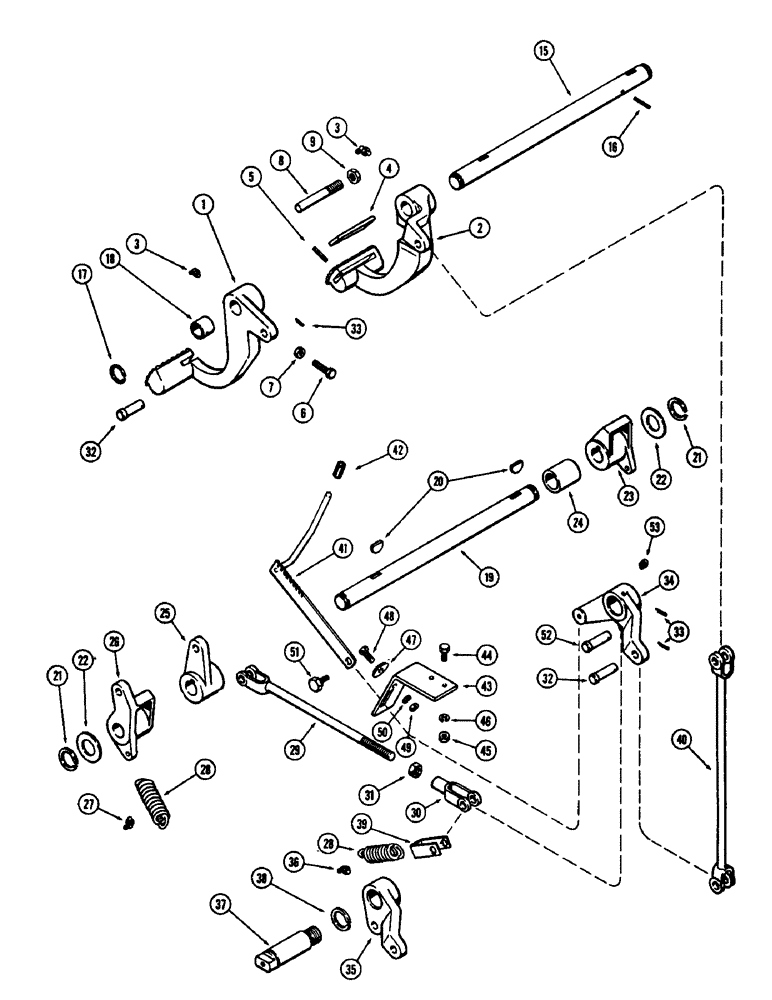

1
A37420
PEDAL - brake, R.H.
1шт.
2
A37421
PLUG
PEDAL - brake, L.H.
1шт.
3
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
2шт.
4
A37704
LOCK - brake pedal
1шт.
5
138-155
LOCK PIN,5/16" x 1 1/4", Slotted
PIN, 5/16" x 1 1/4", Slotted
1шт.
6
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Pedal stop Hex, 5/16"-18 x 1", G5, Full Thd
1шт.
7
25-145
JAM NUT,Jam, 5/16"-18, G5
- jam, 5/16" N.C.
1шт.
8
A37241
STUD
- pedal stop
1шт.
9
25-148
JAM NUT,Jam, 1/2"-13, G5
- jam, 1/2" NC hex
1шт.
15
A37701
SHAFT
- cross, brake pedal
1шт.
16
138-65
LOCK PIN,1/8" x 1 1/2", Slotted
PIN, , Cross shaft to support 1/8" x 1 1/2", Slotted
1шт.
17
A37235
SNAP RING,#100, .941", Ext
RING - snap, pedal shaft
1шт.
18
A37530
BUSHING
- pedal shaft
2шт.
19
G10708
SHAFT
- cross, lower brake lever
1шт.
20
126-124
WOODRUFF KEY,#15, 1/4" x 1", HT
Lever to shaft #15, 1/4" x 1", HT
2шт.
21
F62093
RING, SNAP
RING - snap, lever cross shaft
2шт.
22
B18145
WASHER
- cross shaft (1-7/8" O.D. x 1-3/32" I.D.)
2шт.
23
G1057
LEVER
- L.H. brake (L.H. of shaft)
1шт.
24
G16783
SPACER
- cross shaft lever
1шт.
25
A37230
LEVER
- L.H. brake (R.H. of shaft)
1шт.
26
A37231
LEVER
- R.H. brake
1шт.
27
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - lube, 1/8" N.P.T. straight
1шт.
28
G10848
SPRING
- lever return
2шт.
29
A37239
ROD
- brake, Serial Range: lever-pivot
2шт.
30
213-6
ADJUSTABLE CLEVIS,1/2"-20 x 3"
YOKE - rod to pivot lever
2шт.
31
25-158
JAM NUT,Jam, 1/2"-20, G5
- jam, 1/2" N.F. hex
2шт.
32
141-6
CLEVIS PIN,1/2" x 1.360"
PIN - yoke
7шт.
33
132-48
COTTER PIN,1/8" x 1"
Pin, Split (Cotter), 1/8" x 1"
8шт.
34
A37233
LEVER - pivot, L.H. brake rod
1шт.
35
A37490
PLASTIC PLUG
LEVER - pivot, R.H. brake rod
1шт.
36
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
37
A37491
SHAFT
- stub, pivot lever
1шт.
38
A37237
TEE
RING - snap, pivot shaft
1шт.
39
A37540
BRACKET - L.H. brake spring
1шт.
40
A37238
ROD
- brake, Serial Range: pedal-pivot
2шт.
41
A37482
RATCHET
- release, brake lock
1шт.
42
A23953
TIP
- release lever
1шт.
43
A37425
GUIDE - release ratchet
1шт.
44
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
45
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N.C. hex
2шт.
46
92-5
LOCK WASHER,5/16"
2шт.
47
A29920
PAWL
- brake lock
1шт.
48
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
49
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex
1шт.
50
92-6
LOCK WASHER,3/8"
1шт.
51
A37252
STEP BOLT
BOLT - shoulder, ratchet
1шт.
52
A37542
AXLE PIN
PIN - brake, Serial Range: lever-bracket
1шт.
53
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - lube, 1/8" N.P.T. straight
1шт.
Выбрано товаров: 48
